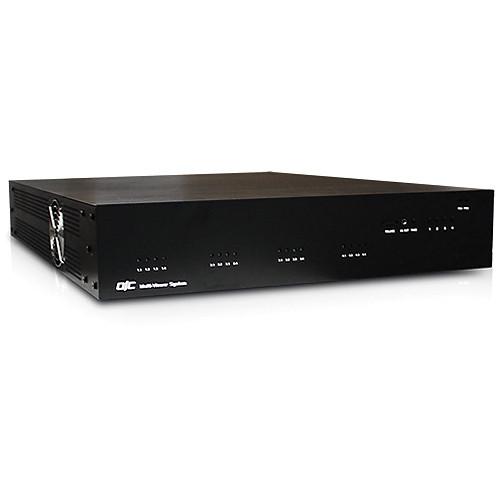

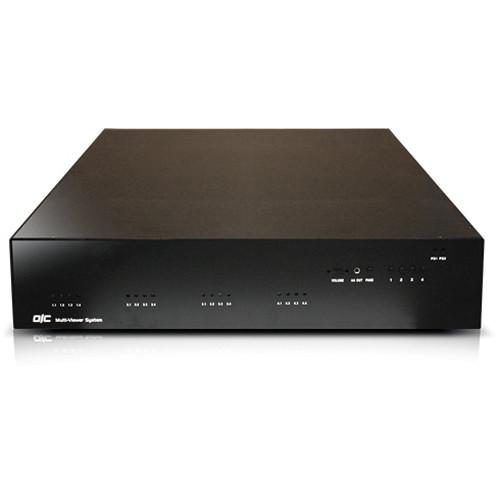

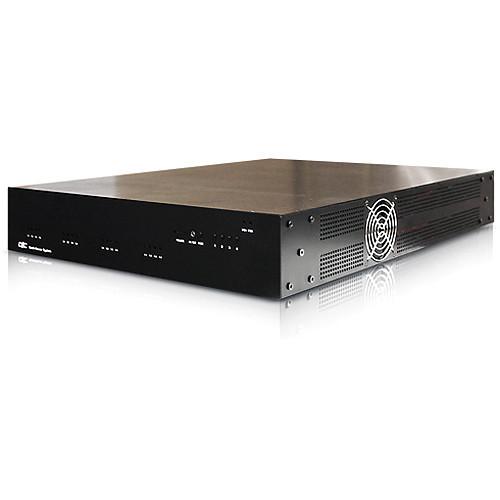

Product description The ORION Images OIC-M16043G 16 Inputs Multiviewer System with OIC Commander Software is a high definition multi-window monitoring system featuring 16 universal inputs/windows, with user selectable resolutions up to 2048 x 1080 (including 1920 x 1080p) and infinitely adjustable screen layouts. This 2 RU, rack-mountable video scalar/processor allows for maximum flexibility in screen layout and for viewing multi-window content of video and graphics at the same time over a single or multiple displays.
It supports inputs for all HD video sources including, DVI / SD / HD and 3G-SDI. The OIC-M1604 unit can be controlled several ways; through the front panel buttons for up to 30 assignable preset viewing layouts, or via standard RS-232C protocol, or through a control module with GPI inputs assigned to preset buttons, or via the OIC Commander software, a PC configuration and control application. - Features
-
- Universal Inputs and auto-detect (Standard: DVI / RGB and SD / HD /3G-SDI
- Up to 4 channels
- Output resolution up to 2048 x 1080 including 1920 x 1080p through DVI and SD / HD / 3G-SDI
- OIC Commander Application allows on-screen graphical elements to be designed with any graphics tool
- Front panel headphone jack with volume adjustment for audio monitoring
- SD / HD / 3G-SDI with embedded audio
- Built-in CATx extender; extend 1080p up to 115’ (35m) with cable (sold separately)
- Front panel buttons for quick preset recalls (30 presets)
- Compact (Height: 2RU) and rack-mount kit provided
- Application
- It provides the user friendly application tool (OIC Commander) to set up your screen layout need.
- Inputs and Outputs
- It supports standard 16 DVI inputs and RJ45 to DVI outputs. Also it has the capability of multiple inputs and outputs (sold separately).
In the Box Orion Images OIC-M16043G 16 Inputs Multiviewer System with OIC Commander Software 16 x VGA to DVI-I Adapter 4 x RJ45 to DVI Adapter (up to 35' (10.6 m)) 4 x 15' CAT6 Cable 4 x SCSI-DB9 GPI/Audio Cable RJ45-DB9 RS232 Cable RJ50-DB9 GPI I/O Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images OIC-M16043G 16 Inputs Multiviewer System with OIC Commander Software in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images OIC-M16043G Specs | Video Input | Up to 16 DVI

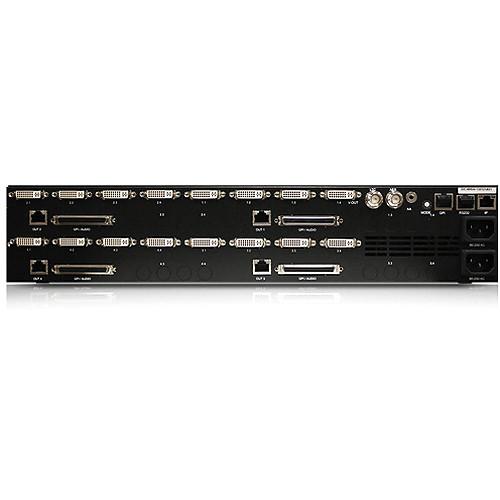

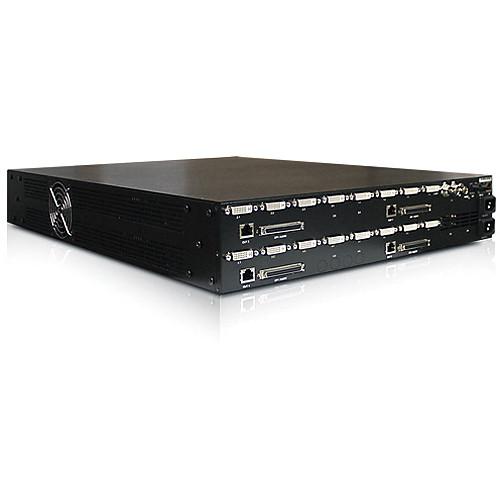

SD / HD / 3G-SDI: SMPTE 259M, 292M, 424M | | Input Connectors | 16 x DVI-I (VGA to DVI-I Adapter provided as standard) | | Video Output | Up to 4 DVI-I (SD / HD / 3G-SDI) | | Output Connectors | 4 x RJ45 (RJ45 to DVI-I Adapter) | | Built-in CATx Extender | Up to 35' (10.6 m) (SDI: Up to 115.0' (35.0 m)) | | Output Resolutions | 800 x 480 to 2048 x 1080 (1080p) | | Total Screens Supported | Up to 16 | | On Screen Display | Borders, labels, fonts, tally LEDs, clock, logos, UMD (Under Monitor Display), OMD (Over Monitor Display), IMD (In Monitor Display) | | General Purpose IO | 40 inputs with DB9 connectors | | Serial Port | RS232 with RS422, Connector RJ45
Baud Rate up to 115200, Format TSL, TSI, AXP | | Alarm | No audio, audio high / low, no video, video black, video frozen | | IP | 100-Base-TX, TSL, AXP, Connector RJ45 | | Control | Front panel buttons for quick preset recalls, GPIs, ASCII Protocol (AXP), OIC Commander | | Power Requirement | 90 to 250 VAC, 50/60Hz | | Power Consumption | Approximately 220 W | | AES Audio | Option: 16 channels (balanced / unbalanced) | | Analog Stereo Audio | Option: 32 channels (balanced / unbalanced) | | Embedded Audio | SMPTE 272M-A | | Power | Redundant power supply is provided | | Dimensions (W x H x D) | 17.5 x 3.5 x 23.6" (44.5 x 8.8 x 59.9 cm) |
