User Manual for Orion Images OIC-M802 8 x 2 HD Multi-Viewer System Click to enlarge the picture
Contents of the user manual for the Orion Images OIC-M802 8 x 2
- Product category: Multiviewer Processors Orion Images
- Brand: Orion Images
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Orion Images Multiviewer Processors
 |
User manual for the Orion Images OIC-M802 8 x 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Orion Images product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Orion Images user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Orion Images product will considerably shorten its lifespan!
|

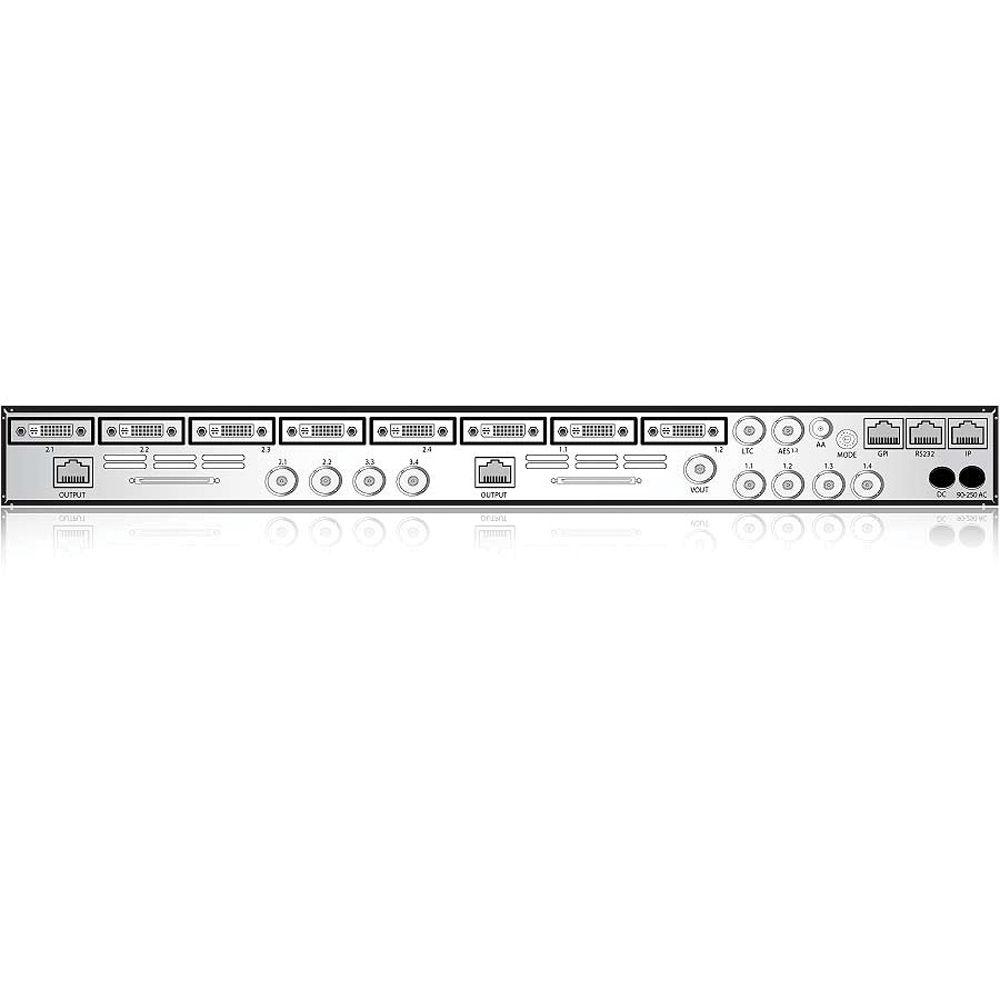

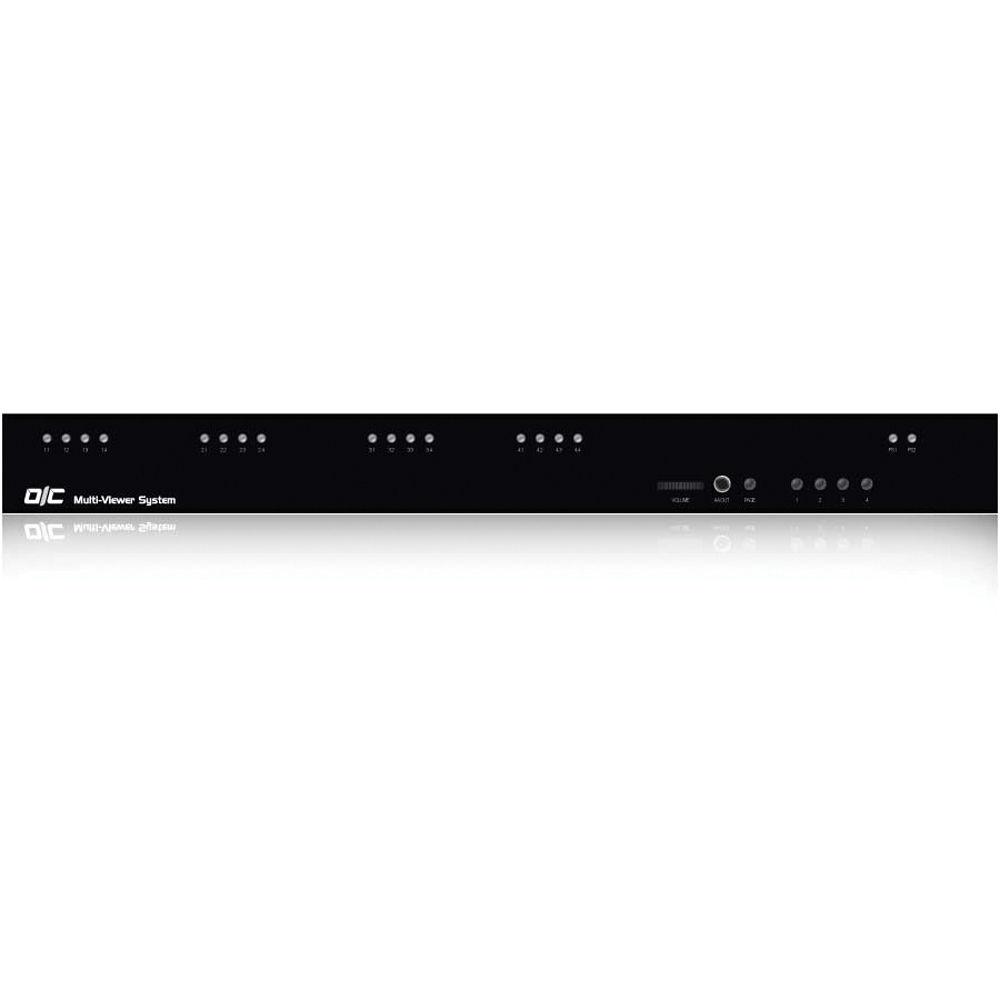

Product description The Orion Images OIC-M802 8 x 2 HD Multi-Viewer System outputs eight video sources to a display or multiple displays in various configurations. All eight sources can be sent to one display, via one output, in a split-screen configuration; or four of the sources can be sent to one display, via one output, and the other four to another display, via a second output, both outputs outputting in split-screen configurations; or all eight sources can be output to an 8-screen video wall, with each source displaying as a resizable window -- you can resize one to be much bigger than another; and lastly, you can have just one of the eight sources stretched out across a video wall, and you can toggle between the eight to display each one stretched out one at a time. The inputs are all DVI and the two outputs are both RJ45. Eight DVI-to-VGA adapters are included for the inputs, and two RJ45-to-DVI and two RJ45-to-HDMI adapters are included for the outputs. The system supports video walls of up to 8 screens.
In the example of resizing windows on a video wall, hardware-based scaling retains the resolution of each input in a window, no matter how you resize the window.
A control software called OIC Commander is included and enables you to assign layout configurations, select output resolutions up to 2048 x 1080, and perform many other functions. The other ways of controlling are by front panel buttons, by RS-232C, or through a control module with GPI inputs assigned to preset buttons. Using front panel buttons, you can choose from 30 preset layouts, all assignable.
The multi-viewer is 1 RU rack-mountable and comes with a rack-mount kit among many converter cables, extender cables, the OIC software, and a redundant power supply. - Key Features
-
- Outputs 8 video sources to one or multiple displays in various configurations
- Eight DVI inputs, two RJ45 outputs, and many adapter and extender cables
- Space for optional SDI, Component, and Composite connections
- Selectable output resolutions up to 2048 x 1080, including 1920 x 1080p
- Front panel headphone jack with volume adjustment for audio monitoring
- Built-in CATx extender extends 1080p 35 ft
- Front panel buttons for 30 quick preset recalls
- 1 RU rack-mountable
- On Screen Display
-
- Borders
- Labels
- Fonts
- Tally LEDs
- Clock
- Logos
- Under Monitor Display (UMD)
- Over Monitor Display (OMD)
- In Monitor Display (IMD)
- Controls
-
- Front panel buttons
- GPIs
- ASCII Protocol (AXP)
- OIC Commander
In the Box Orion Images OIC-M802 8 x 2 HD Multi-Viewer System Redundant Power Supply OIC Commander Software Rack-Mount Kit 8 x DVI to VGA Adapter 2 x RJ45 to DVI Adapter 2 x RJ45 to HDMI Adapter 2 x CAT6 Cable (15 ft / 4.5 m) 2 x SCSI to DB9 GPI / Audio Cable RJ45 to DB9 RS232 Cable RJ50 to DB9 GPI I/O Cable 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images OIC-M802 8 x 2 HD Multi-Viewer System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images OIC-M802 Specs | Video Inputs | 8x DVI-I (DVI to VGA adapters included) | | Video Outputs | 2x RJ45 (RJ45 to DVI adapters and RJ45 to HDMI adapters included) | | Total Screens Supported | The M802 can connect to a video wall of up to eight screens | | Built-in CATx Extender | Up to 35 ft (10.6 m)
Can optionally be upgraded to extend 115 ft (35 m) | | Output Resolution | 800x480 to 2048x1080 (1080p) | | GPI I/O Connections | 1x RJ50 for 40 inputs with DB9 connectors | | Serial Port | 1x RS232 on RJ45 (with room for RS422 and RS485 options)
Baud rate up to 115200
Format: TSL, TSI, AXP | | Alarm | No audio, audio high / low, no video, video black, video frozen | | IP | On 1x RJ45: 100-Base-TX, TSL, AXP | | Power Requirement | AC 90-250 V, 50/60 Hz | | Power Consumption | Approx. 110 W | | Audio | Embedded Audio: SMPTE 272M-A, HDMI
AES Audio (option): 8 channels (balanced / unbalanced)
Analog Stereo Audio (option): 16 channels (balanced / unbalanced) | | Dimensions | 17.5 x 1.75 x 19.7" (44.5 x 4.4 x 50 cm) |
