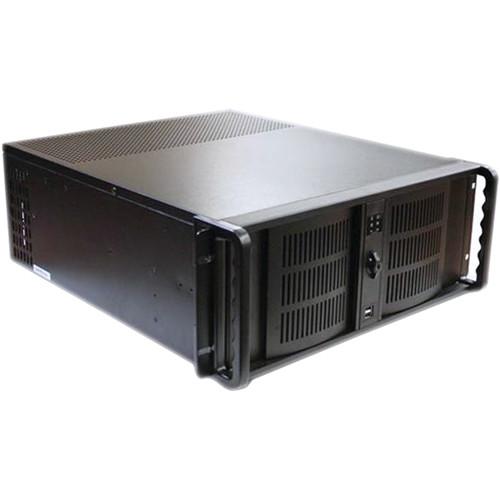

User Manual for Orion Images OIC-MP1212 HD Multiviewer System Click to enlarge the picture
Contents of the user manual for the Orion Images OIC-MP1212 HD Multiviewer System
- Product category: Multiviewer Processors Orion Images
- Brand: Orion Images
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Orion Images Multiviewer Processors
|
User manual for the Orion Images OIC-MP1212 HD Multiviewer System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Orion Images product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Orion Images user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Orion Images product will considerably shorten its lifespan!
|
Product description The 12-in / 12-out OIC-MP1212 HD Multiviewer System from Orion Images is a multiviewer video wall system which provides you with a user-friendly controller software for configuring your screen layout. This unit features 12 inputs and 12 outputs for video, and supports audio through the HDMI port (only).
The OIC-MP1212 enables you to share multiple sources in a collaborative environment for video capture for streaming, recording, or presentation applications. The video capture card provides a high-performance, high-density video capture solution for mission-critical applications that require high capture bandwidth. The video wall could be used in a command center, traffic management, financial institutions, power and utilities, security, entertainment, and more. The OIC-MP1212 includes an optical mouse, DisplayPort to DVI adapters, and a keyboard. Video Wall Controller - 4RU Rack-mountable case with front lock
- Expandable HD inputs and outputs
- Multiple video wall configurations
Video Wall Controller Software - Outputs maximum resolution of 2560 x 1600 at 60 Hz
- Displays multiple input sources
- Interactive desktop control and configuration
- Audio playback for HDMI source
- Size and position control of any window
- Streams a source over the network
- Displays video clips and photos in Windows 7
In the Box Orion Images OIC-MP1212 HD Multiviewer System (12-In / 12-Out) Optical Mouse DisplayPort to DVI Adapters Keyboard Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images OIC-MP1212 HD Multiviewer System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images OIC-MP1212 Specs | Frame | Black, 4RU | | Operating System | Windows 7 Professional | | Motherboard | Intel chipset | | Processor | Intel Core i7 | | System Bus | 1333 MHz | | RAM | 16 GB DDR3 | | DMA Data Transfer Bandwidth | Per Card: 800 MB/sec per capture processor, 3.2 GB/sec total | | Frame Buffer | 4 x 256 MB | | CD/DVD Drive | DVD-RW ROM drive
Speed: 18x | | Network Card | 2 x Gigabit Ethernet port | | Video Card | Onboard video (VGA output) | | Audio Support | HDMI input only | | Number of PCI Slots | 9 x PCIe | | Input | 3 x 4-channel HD capture card (12 input channels), DVI | | Output | 3 x 4-Channel output card (12 output channels)
4 x DisplayPort 1.1a video ports providing up to 359 Mpx/sec at 24-bit | | HDD | 500 GB Hard drive | | Cooling Fans | 2 x 4.7" (120.0 mm) fans | | Power Supply | 500 W redundant power supply | | Power | 115 VAC, 12 A | | Dimensions | 19.0 x 7.0 x 19.7" (48.3 x 17.8 x 49.9 cm) | | Weight | 55.0 lb (24.9 kg) |
