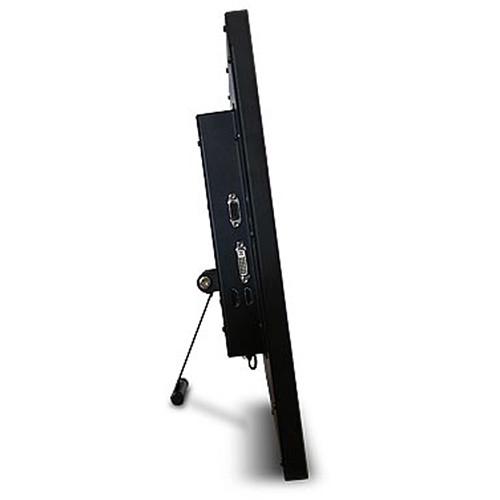

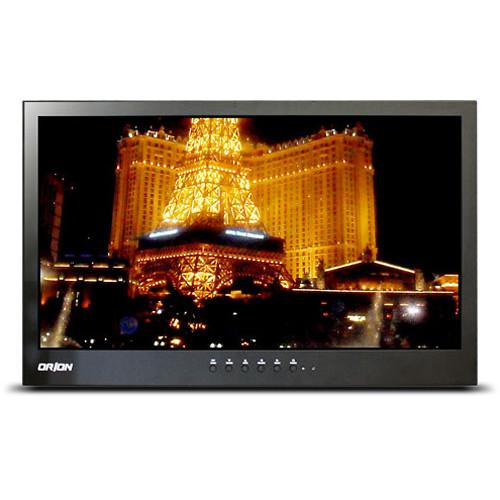

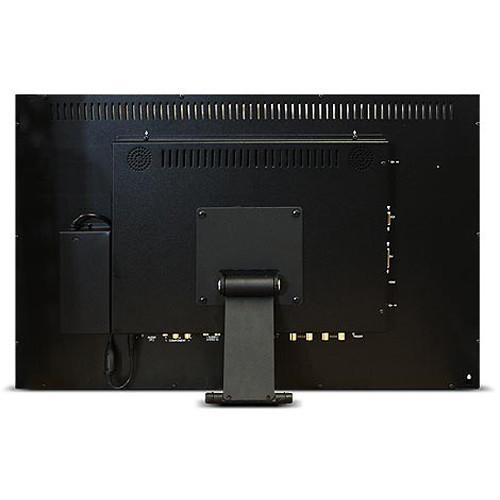

User Manual for Orion Images Premium Series 21" LED CCTV Monitor Click to enlarge the picture
Contents of the user manual for the Orion Images Premium Series 21" LED
- Product category: Surveillance Monitors Orion Images
- Brand: Orion Images
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Orion Images Surveillance Monitors
 |
User manual for the Orion Images Premium Series 21" LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Orion Images product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Orion Images user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Orion Images product will considerably shorten its lifespan!
|
Product description The Premium Wide Series 21" LED CCTV Monitor from ORION Images supports up to 1920 x 1080 video resolution at 60 Hz for displaying high-definition surveillance footage. The monitor features a 3D comb filter, deinterlacing, and noise reduction enhancements. Additional features include advanced auto power recovery, auto source sequencing, and a trigger sensor. Housed in an all metal chassis for durability, the monitor has a 100 x 100mm VESA pattern, providing compatibility with mounting brackets for easy installation. There are two 1W built-in speakers for audio, and there are multiple input and output connections, including BNC, S-Video, VGA, DVI-D, HDMI, RCA, and PC stereo. - Supports a maximum resolution of 1920 x 1080 at 60 Hz
- PIP / PBP multi display function for various viewing options
- 3D comb filter, deinterlace, and noise reduction video enhancements
- Additional features include advanced auto power recovery, auto source sequencing, and trigger source switching
- Multi-language support for ease-of-use and versatility
- Two BNC video inputs and outputs as well as a VGA video input
- DVI-D and HDMI inputs for high-definition video and audio
- RCA audio inputs and one PC stereo input
- Two 1W built-in speakers for audio output
- 100 x 100mm VESA mounting wall and ceiling mount compatibility
UPC: 836228000214 In the Box Orion Images Premium Series 21" LED CCTV Monitor Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images Premium Series 21" LED CCTV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 21REDP Specs | | | Screen Size | 21.5" (54.6 cm) | | Maximum Resolution | 1920 x 1080 at 60 Hz | | Screen Type | LED BLU | | Pixel Pitch | 0.248 x 0.248 mm | | Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 170°/160° | | Display Color | 16.7 million | | Response Time | < 5 ms | | Video System | NTSC / PAL | | Frequency | H: 31 to 64 KHz
V: 55 to 75 KHz | | | | Video | 2 x Input (BNC)
2 x Output (BNC) | | S-Video | 1 x Input
1 x Output | | VGA | 1 x Input (15-Pin D-Sub) | | DVI-D | 1 x Input | | HDMI | 2 x Input | | Audio | 2 x Input (RCA Type: left and right) | | PC Stereo In | 1 x Input | | | | Built-In Speakers | 2 x 1 W | | | | Filter Type | 3D comb filter, deinterlacing | | Noise Reduction | Yes | | Multi-Display Function | PIP / PBP | | Auto Power Recover | Yes | | Trigger Sensor | Yes (NO / NC) | | Auto Source Sequencing | Yes | | Languages | English, Spanish, French, German, Italian | | | | VESA Compatibility | 100 x 100 mm | | Compatibility | Wall Mount: WB-5, WB-10, WB-30, WB-31
Ceiling Mount: CMK-01 | | | | Material | Electronic galvanized iron | | Desktop Stand | Kick type | | Power Consumption | < 38 W 100 to 240 VAC (50 / 60 Hz)
12 VDC / 3.5 A | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | 20.4 x 13.1 x 3.1" (51.8 x 33.3 x 7.9 cm) | | Weight | 13.7 lb (6.2 kg) | | | | Package Weight | 16.6 lb | | Box Dimensions (LxWxH) | 25.5 x 20.2 x 9.2" |
