User Manual for Orion Images Premium Series 9.7" Rack-Mountable LED CCTV Monitor Click to enlarge the picture
Contents of the user manual for the Orion Images Premium Series 9.7" Rack-Mountable
- Product category: Surveillance Monitors Orion Images
- Brand: Orion Images
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Orion Images Surveillance Monitors
 |
User manual for the Orion Images Premium Series 9.7" Rack-Mountable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Orion Images product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Orion Images user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Orion Images product will considerably shorten its lifespan!
|

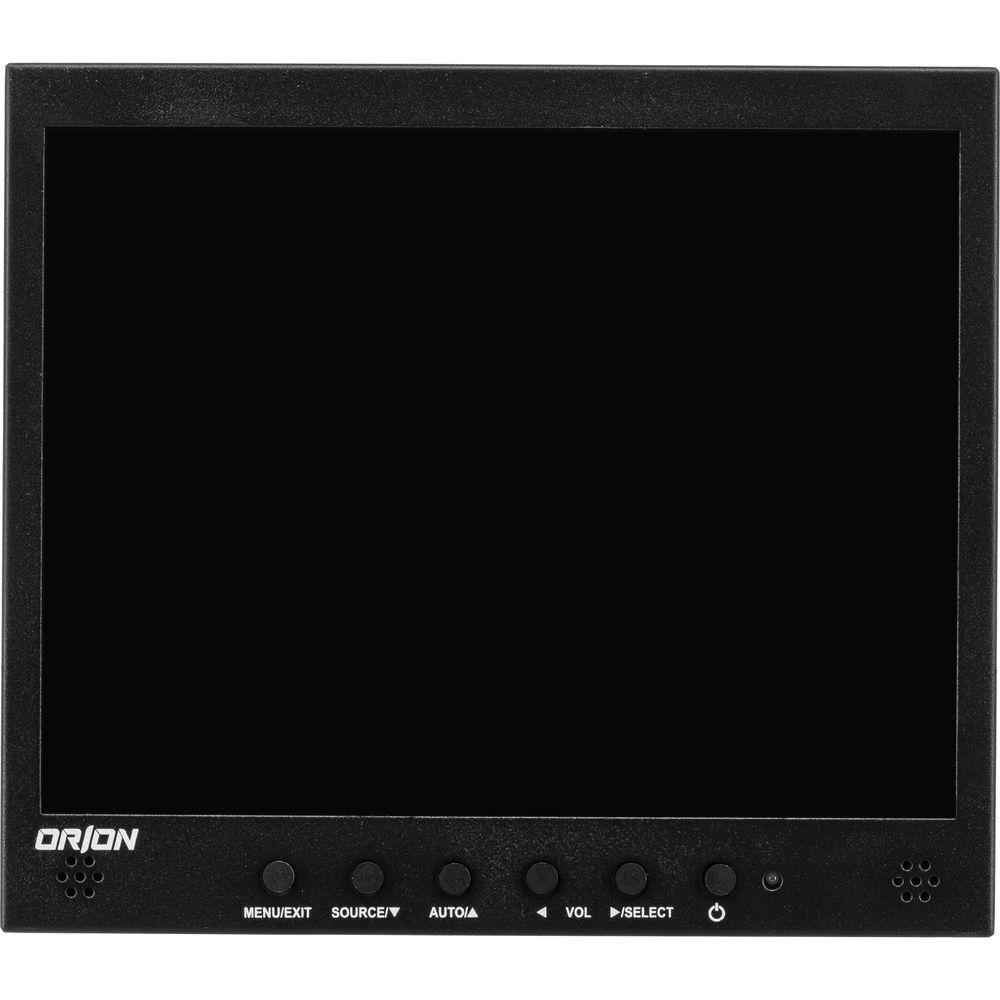

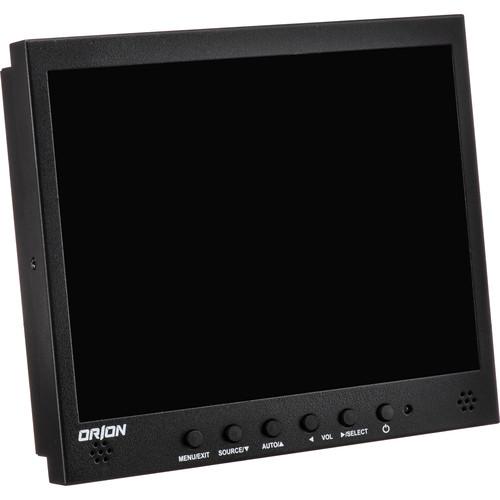

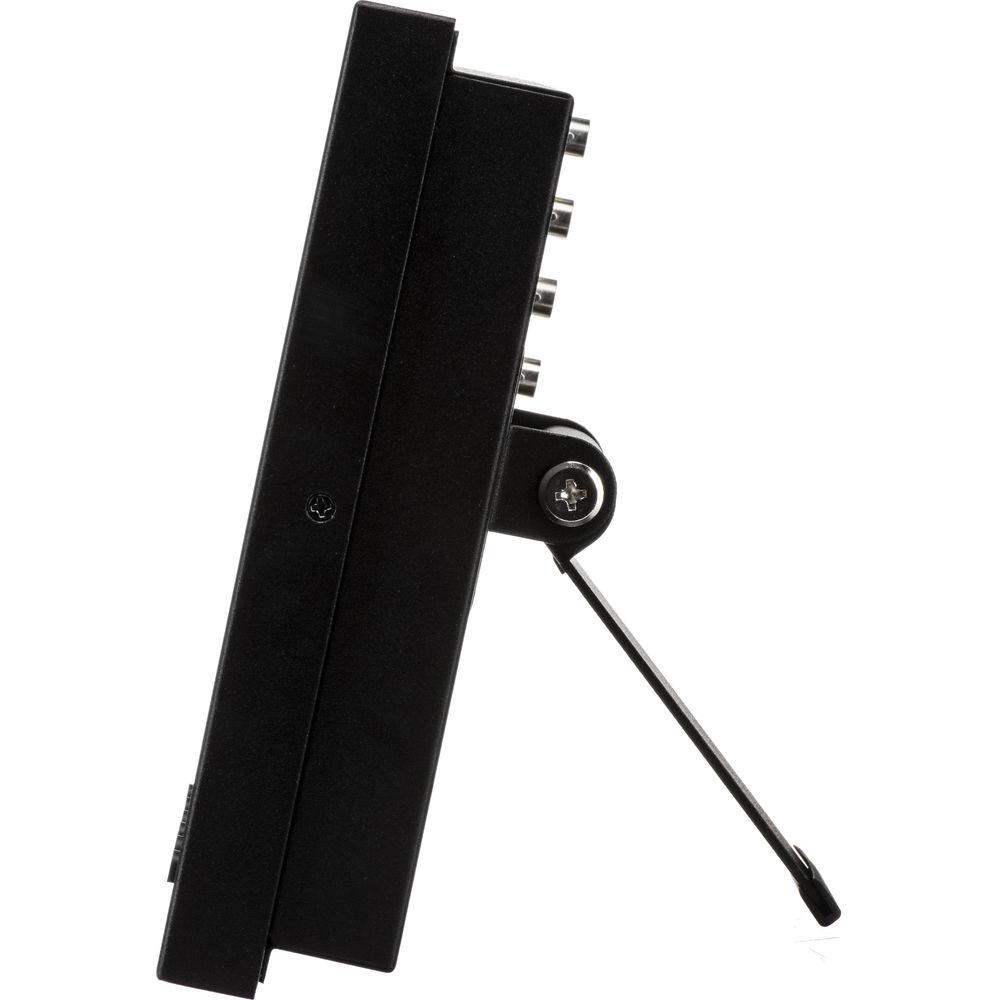

Product description The Premium Series 9.7" Rack-Mountable LED CCTV Monitor from ORION Images supports up to 1024 x 768 video resolution at 75 Hz for displaying high-definition surveillance footage. The monitor features 3D deinterlacing, auto source sequencing, and noise reduction enhancements. Housed in a galvanized iron chassis for durability, the monitor has a 75 x 75mm VESA pattern, providing compatibility with mounting brackets for easy installation. The monitor is also rack-mountable with the RMK-08 rack mount (available separately) for unobtrusive placement. There are two 1W built-in speakers for audio, and there are multiple input and output connections, including BNC, S-Video, VGA, HDMI, RCA, and PC stereo. - Supports a maximum resolution of 1024 x 768 at 75 Hz
- 3D adaptive deinterlacer, auto source sequencing, and noise reduction video enhancements
- Multi-language support for ease-of-use and versatility

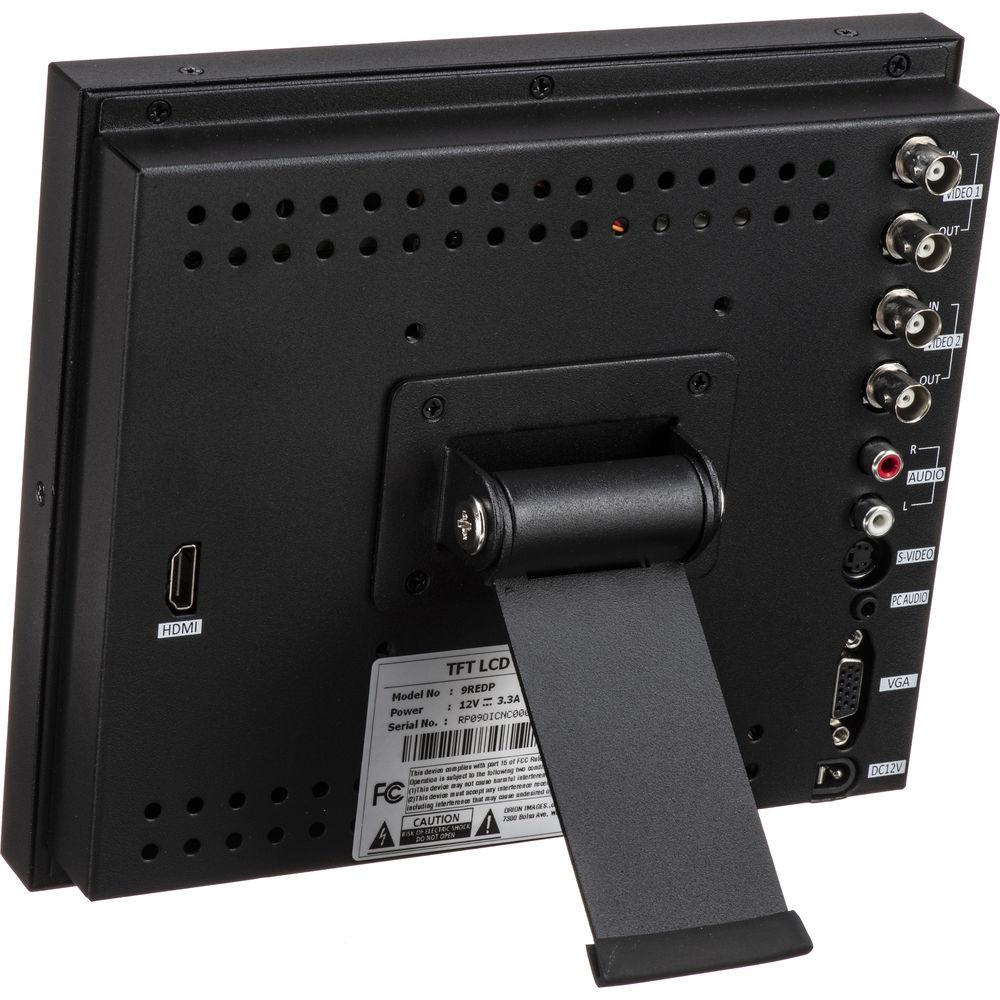

- Two BNC video inputs and outputs as well as S-Video and VGA video inputs
- HDMI input for high-definition video and audio
- RCA audio input and one PC stereo input
- Two 1W built-in speakers for audio output
- 75 x 75mm VESA mounting wall and ceiling mount compatibility
- Rack-mountable with RMK-08 rack mount (available separately)
UPC: 836228000979 In the Box Orion Images Premium Series 9.7" Rack-Mountable LED CCTV Monitor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images Premium Series 9.7" Rack-Mountable LED CCTV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 9REDP Specs | Screen Size | 9.7" / 24.6 cm | | Resolution | 1024 x 768 @ 75 Hz | | Pixel Pitch | 0.192 x 0.192 mm | | Brightness | 350 cd/m² | | Contrast Ratio | 800:1 | | Aspect Ratio | 4:3 | | Viewing Angle | 170° / 170° (H/V) | | Display Colors | 16.7 Million | | Response Time | < 25 ms | | Video System | NTSC / PAL | | Frequency | H: 31 to 38 KHz
V: 55 to 75 KHz | | Interface | 2 x BNC inputs
2 x BNC outputs
1 x S-Video input
1 x HDMI input
1 x VGA input (15-Pin D-Sub)
1 x RCA audio input
1 x PC stereo input | | Speaker | 2 x 1 W built-in | | Features | Filter Type: 3D adaptive deinterlacer
Noise reduction
Auto source sequencing | | Multi-Language | English, Spanish, French, German, Italian | | Cabinet | Material: Electronic galvanized iron
Desk Top Stand: Yes
Tilt Function: Yes | | Power Consumption | < 20 W | | Electrical Ratings | 100 to 240 VAC, 50/60 Hz
12 VDC, 3 A | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | VESA Mount Size | 75 x 75 mm | | Compatibility | Wall Mounting: WB-5, WB-10, WB-30
Ceiling: CMK-01
Rack: RMK-08 | | Dimensions (WxHxD) | 8.5 x 7.4 x 2.8" / 21.5 x 18.9 x 7.1 cm | | Weight | 4.5 lb / 2.04 kg | | | | Package Weight | 5.415 lb | | Box Dimensions (LxWxH) | 12.7 x 11.7 x 5.4" |
