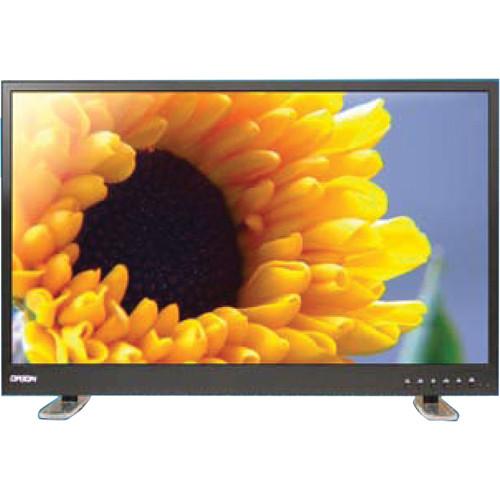

Product description The Premium Wide Series 31.6" LED CCTV Monitor from ORION Images supports up to 1920 x 1080 video resolution at 60 Hz for displaying high-definition surveillance footage. The monitor features a 3D comb filter, deinterlacing, and noise reduction enhancements. Additional features include advanced auto power recovery, auto source sequencing, and a trigger sensor. Housed in an all metal chassis for durability, the monitor has a 200 x 200mm VESA pattern, providing compatibility with mounting brackets for easy installation. There are two 7.5W built-in speakers for audio, and there are multiple input and output connections, including BNC, S-Video, VGA, DVI-D, HDMI, RCA, and PC stereo. - Supports a maximum resolution of 1920 x 1080 at 60 Hz
- PIP / PBP multi display function for various viewing options
- 3D comb filter, deinterlace, and noise reduction video enhancements
- Additional features include advanced auto power recovery, auto source sequencing, and trigger source switching
- Multi-language support for ease-of-use and versatility
- Two BNC video inputs and outputs as well as a VGA video input
- DVI-D and HDMI inputs for high-definition video and audio
- RCA audio inputs and one PC stereo input
- Two 7.5W built-in speakers for a total of 15W
- 200 x 200mm VESA mounting wall and ceiling mount compatibility
UPC: 836228005073 In the Box Orion Images Premium Wide Series 31.6" LED CCTV Monitor Remote Control Limited 3-Year Warranty Brochure PDF 518.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images Premium Wide Series 31.6" LED CCTV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 32REDP Specs | | | Screen Size | 31.6" (80.1 cm) | | Maximum Resolution | 1920 x 1080 at 60 Hz | | Screen Type | Backlit LED | | Pixel Pitch | 0.36375 x 0.36375 mm | | Brightness | 400 cd/m2 | | Contrast Ratio | 1300:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 178°/178° | | Display Color | 16.7 million | | Response Time | < 8 ms (GtG) | | Video System | NTSC / PAL | | Frequency | H: 30 to 64 KHz
V: 56 to 75 KHz | | | | Video | 2 x Input (BNC)
2 x Output (BNC) | | S-Video | 1 x Input
1 x Output | | VGA | 1 x Input (15-Pin D-Sub) | | DVI-D | 1 x Input | | HDMI | 2 x Input | | Audio | 2 x Input (RCA Type: left and right) | | PC Stereo In | 1 x Input | | | | Built-In Speakers | 2 x 7.5 W | | | | Filter Type | 3D comb filter, deinterlacing | | Auto Power Recover | Yes | | Noise Reduction | Yes | | Multi-Display Function | PIP / PBP | | LCD Protection Glass | Yes | | Trigger Sensor | Yes (NO / NC) | | Auto Source Sequencing | Yes | | Languages | English, Spanish, French, German, Italian | | | | VESA Compatibility | 200 x 200 mm | | Compatibility | Wall Mount: WB-31, WB-2642
Ceiling Mount: CMK-01 | | | | Material | Electronic galvanized iron | | Desktop Stand | Yes | | Power Consumption | < 67 W 100 to 240 VAC (50 / 60 Hz) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | With Stand: 28.82 x 18.98 x 5.91" (73.20 x 48.21 x 15.01 cm) | | Weight | 28.2 lb (12.8 kg) | | | | Package Weight | 36.3 lb | | Box Dimensions (LxWxH) | 33.5 x 24.5 x 8.0" |
