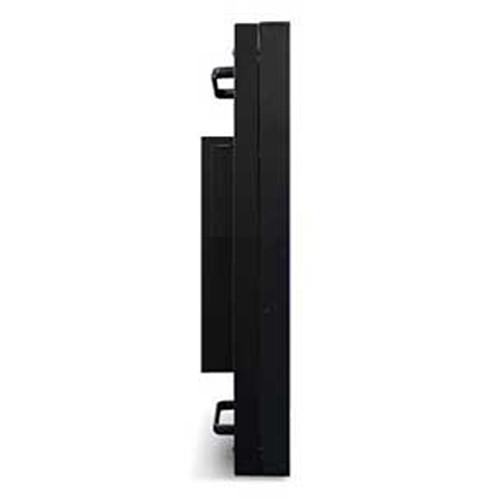

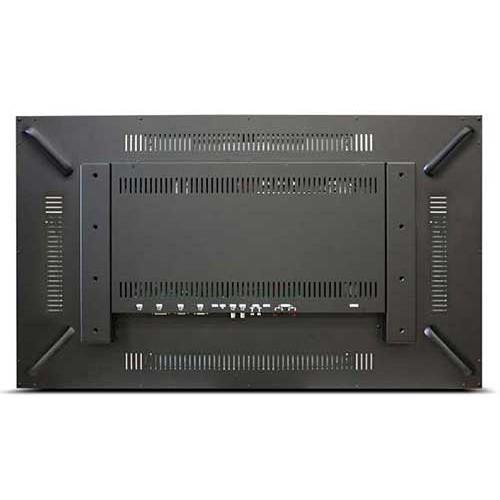

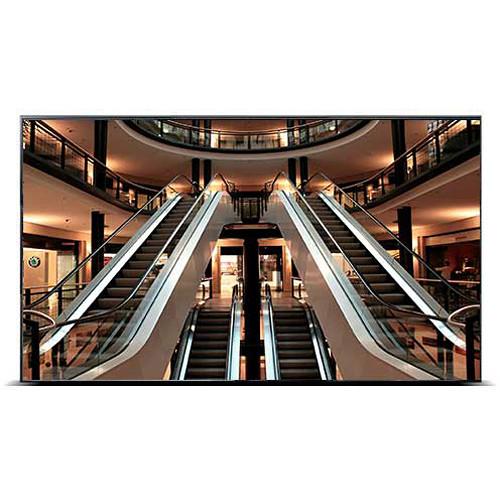

User Manual for Orion Images R4K Series 55" 4K Video Wall LCD Monitor with Extreme Narrow Bezel Click to enlarge the picture
Contents of the user manual for the Orion Images R4K Series 55" 4K
- Product category: Commercial Monitors Orion Images
- Brand: Orion Images
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Orion Images Commercial Monitors
 |
User manual for the Orion Images R4K Series 55" 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Orion Images product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Orion Images user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Orion Images product will considerably shorten its lifespan!
|
Product description The R4K Series 55" 4K Video Wall LCD Monitor from Orion Images is used for displaying one image across multiple monitors using one video source. It features a total of 3840 x 2160 based on 2 x 2 configurations. The monitor incorporates a 0.06" extreme narrow bezel. In addition, the monitor can also be used for corporate AV and Digital Signage applications such as shopping malls, airports, stadiums, retail, casino, and more. The monitor consumes less power and with auto pixel shift built in it is not subject to permanent, irreversible burn-in. Unlike individual mount LCD's that leave gaps between each monitor, a tiled video wall monitor offers more flexibility, scalability and the possibility for a higher resolution. - Software
-
- Control each display separately or all at once
- Select one or multiple monitor viewing configurations
- Multi-vision options such as - 5 x 5 (border) from DVI and 3 x 3 (in the center)
- Schedule a sequence of multiple display content configurations
- File management helps you save and store edited contents for easy replay access
- Select input source
- Menu lock out (IR or panel)
- Power Control: On / Off
- Color setting (RGB) & brightness
- Edge setting (horizontal & vertical gap)
- Hardware
-
- Displaying one image across multiple monitors using one video source
- PBP / PIP / QUAD
- Built-in video wall processor
- Remote display management
- Auto source switching
- Landscape and portrait
- HDMI input/output
- DVI-D input/output
- VGA input
- RS-232C input/output for pc / server control
- Control panel Lock (panel or IR)
- All metal chassis
- Auto power recovery
- Auto pixel shift
- PIP / PBP / QUAD displays
- DisplayPort input
- VESA standard patterns
In the Box Orion Images R4K Series 55" 4K Video Wall LCD Monitor with Extreme Narrow Bezel IR Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images R4K Series 55" 4K Video Wall LCD Monitor with Extreme Narrow Bezel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images R4K55ENF Specs | | | Screen Size (Diagonal) | 55" | | Supported Display Resolutions | 1920 x 1080 / 60 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Brightness | 500 cd/m
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
