User Manual for Orion Images Rack Mount Ready Series 19" Rack-Mountable LED CCTV Monitor Click to enlarge the picture
Contents of the user manual for the Orion Images Rack Mount Ready Series
- Product category: Surveillance Monitors Orion Images
- Brand: Orion Images
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Orion Images Surveillance Monitors
|
User manual for the Orion Images Rack Mount Ready Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Orion Images product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Orion Images user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Orion Images product will considerably shorten its lifespan!
|

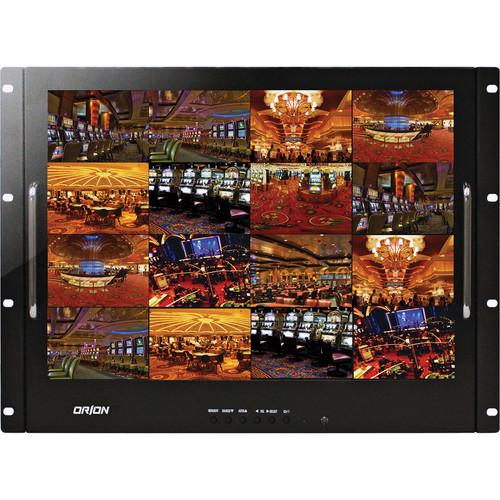

Product description The Rack Mount Ready Series 19" Rack-Mountable LED CCTV Monitor from ORION Images supports up to 1280 x 1024 video resolution at 75 Hz for displaying high-quality surveillance footage. This commercial grade monitor is designed for 24/7 365-day constant use, making it an ideal solution for security guards and law enforcement officers. There are two built-in 1W speakers for audio, and there are multiple input and output connections, including BNC, S-Video, VGA, HDMI, and RCA. The monitor is 8U rack-mountable for placement on a shelf or in a media cabinet, and it has a 100 x 100mm VESA pattern, providing compatibility with mounting brackets for easy installation. - Supports a maximum resolution of 1280 x 1024 at 75 Hz
- 3D motion adaptive deinterlacer function for high-quality images
- Multi-language support for ease-of-use and versatility
- Two BNC inputs and two BNC outputs as well as S-Video and VGA video inputs
- Features one HDMI input for high-definition video and audio
- One RCA audio input, one PC stereo input, and two built-in 1W speakers for audio output
- Includes remote control for easy system navigation
- 100 x 100mm VESA mounting wall and ceiling mount compatibility
- Monitor can also be rack-mounted for placement on a shelf or in a cabinet
UPC: 836228001433 In the Box Orion Images Rack Mount Ready Series 19" Rack-Mountable LED CCTV Monitor Remote Control Limited 3-Year Warranty Brochure PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images Rack Mount Ready Series 19" Rack-Mountable LED CCTV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 19RCR Specs | Screen Size | 19" (48.26 cm) | | Max Resolution | 1280 x 1024 at 75 Hz | | Pixel Pitch | 0.294 x 0.294 mm | | Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Aspect Ratio | 5:4 | | Viewing Angle | 170°/160° | | Display Colors | 16.7 million | | Response Time | < 5 ms | | Video System | NTSC / PAL | | Frequency | Horizontal: 50 to 64 KHz
Vertical: 55 to 75 KHz | | Interface | 2 x BNC video inputs
2 x BNC video outputs
1 x S-Video
1 x VGA input (15-Pin D-Sub)
1 x HDMI input
1 x Audio input
1 x PC stereo input | | Remote Control | Yes | | Built-in Speakers | 2 x 1 W | | Filter Type | 3D Motion Adaptive Deinterlace | | Supported Languages | English, Spanish, French, German, Italian | | Material | Electronic galvanized iron | | Tilt Function | Yes | | Power Consumption | < 20 W | | Electrical Ratings | 100 to 240 VAC, 50/60 Hz
12 VDC, 3.5 A | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | VESA Compatibility | 100 x 100 mm | | Mounting | Wall mounting with WB-5, WB-10, WB-30, WB-31 brackets
Ceiling mounting with CMK-01 bracket | | Rack Mount | 8 RU rack mounting | | Dimensions | 19 x 13.9 x 2.9" / 48.2 x 35.3 x 7.3 cm | | Weight | With Stand: 12.7 lb / 5.7 kg | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 21.1 x 18.5 x 9.7" |
