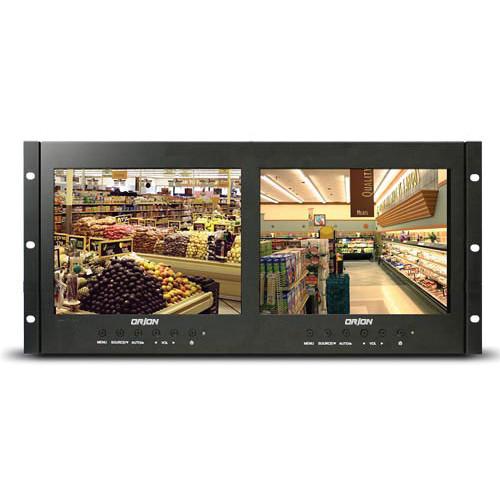

Product description The Rack Mount Ready Series Dual 9.7" Rack-Mountable LCD CCTV Monitors from ORION Images support up to 1024 x 768 video resolution at 75 Hz for displaying high-quality surveillance footage. These commercial grade monitors are designed for 24/7 365-day constant use, making them an ideal solution for factory control rooms, automotive, marine, and special Kiosk applications. There are two built-in 1W speakers for audio, and there are multiple input and output connections, including BNC, S-Video, VGA, HDMI, and RCA. The monitors are 5U rack-mountable for placement on a shelf or in a media cabinet, and they have a 75 x 75mm VESA pattern, providing compatibility with mounting brackets for easy installation. - LED dual display suitable for automotive, marine, and factory control room applications
- Supports a maximum resolution of 1024 x 768 at 75 Hz
- 3D motion adaptive deinterlacer function for high-quality images
- Multi-language support for ease-of-use and versatility
- Two BNC inputs and two BNC outputs per panel, as well as S-Video and VGA video inputs
- Features one HDMI input per panel for high-definition video and audio
- Two RCA audio inputs, two PC stereo input, and two built-in 1W speakers for audio output
- 75 x 75mm VESA mounting wall and ceiling mount compatibility
- Monitor can also be rack-mounted for placement on a shelf or in a cabinet
UPC: 836228001976 In the Box Orion Images Rack Mount Ready Series Dual 9.7" Rack-Mountable LCD CCTV Monitors Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images Rack Mount Ready Series Dual 9.7" Rack-Mountable LCD CCTV Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

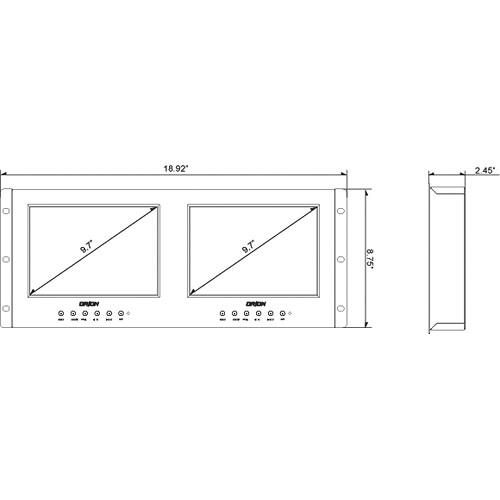

Technical parametersOrion Images 9RCRD Specs | | | Screen Size | 9.7" (24.6 cm) | | Resolution | 1024 x 768 @ 75 Hz (max) | | Pixel Pitch | 0.192 x 0.192 mm | | Brightness | 350 cd/m² | | Contrast Ratio | 500:1 | | Aspect Ratio | 4:3 | | Viewing Angle | 130°/140° | | Display Colors | 262,144 colors (6-bit) | | Response Time | < 20 ms | | Video System | NTSC / PAL | | Frequency | Horizontal: 50 to 64 KHz
Vertical: 55 to 75 KHz | | | | BNC Input | Per Panel: 2
Total: 4 | | BNC Output | Per Panel: 2
Total: 4 | | S-Video Input | Per Panel: 1
Total: 2 | | HDMI Input | Per Panel: 1
Total: 2 | | VGA In | Per Panel: 1
Total: 2 | | Audio Input | Per Panel: 1
Total: 2 | | PC Stereo In | Per Panel: 1
Total: 2 | | | | Speaker | 2 x 1 W | | Filter | 3D Motion Adaptive DeInterlacer | | Languages | English, Spanish, French, German, Italian | | | | Housing | Electronic galvanized Iron | | Tilt Function | Yes | | Power Consumption | < 35 W | | Power Requirements | 100 to 240 VAC, 50/60 Hz
12 VDC, 3.5 A | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | VESA Mount Size | 75 x 75 mm | | Mounting | Wall mounting with WB-5, WB-10, WB-30, WB-31 brackets

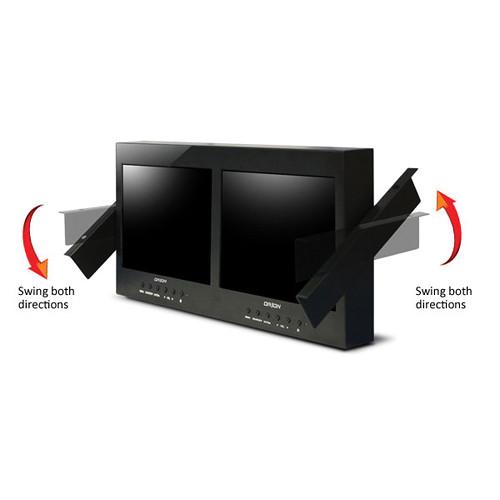

Ceiling mounting with CMK-01
5 RU rack-mountable, tiltable | | Dimensions (WxHxD) | 19.0 x 8.7 x 2.0" (48.2 x 22.0 x 5.0 cm) | | Weight | 7.6 lb (3.44 kg) | | | | Package Weight | 11.2 lb | | Box Dimensions (LxWxH) | 21.4 x 12.4 x 5.4" |
