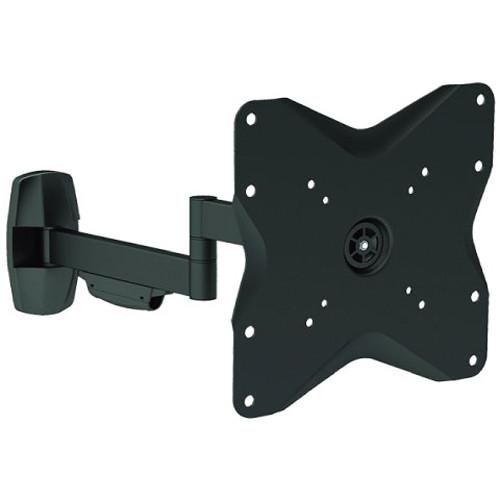

Product description The Orion Images WB-31 Swingout Arm Mount is designed to hold a flat LCD monitor weighing up to 44 lb (20kg) and measuring 17 to 27". In addition to 360° screen rotation, the arm mount provides ±15° tilt and 180° left and right swing. The mount has the capability of extending 2 to 15" from the wall and supports VESA 75 / 100 / 200mm mounting standards. It allows for cable routing inside arms and through the wall plate.
Being flexible, the WB-31 Swingout Arm Mount is suitable for use with various LCD displays that include 17RTA, 19RTA, 15RTV, 17RTV, 19RTV, 15RTC, 17RTC, 19RTC, 15RCR, 17RCR, 19RCR, and 20PVM. - Designed to hold a flat LCD monitor weighing up to 44 lb (20kg) and measuring 17 to 27"
- 180° left and right swing
- Monitor folds parallel to wall
- Extends 2 to 15" from the wall
- Supports VESA 75 / 100 / 200 mm mounting standards
- Allows for cable routing inside arms and through the wall plate
- Suitable for use with various LCD displays that include 17RTA, 19RTA, 15RTV, 17RTV, 19RTV, 15RTC, 17RTC, 19RTC, 15RCR, 17RCR, 19RCR, and 20PVM
UPC: 836228004045 In the Box Orion Images WB-31 Swingout Arm Mount for 17 to 27" LCD Displays 2 x Decorative Cover Cable Cover Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images WB-31 Swingout Arm Mount for 17 to 27" LCD Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images WB-31 Specs | | | Supported Screen Sizes | 17 to 27" / 43.2 to 68.6 cm | | Supported Weight Capacity | 44 lb / 20 kg | | Mounting-Hole Pattern | 75 x 75 to 200 x 200 mm | | Number of Displays Supported | 1 | | | | Tilt Adjustment | -15 to +15
