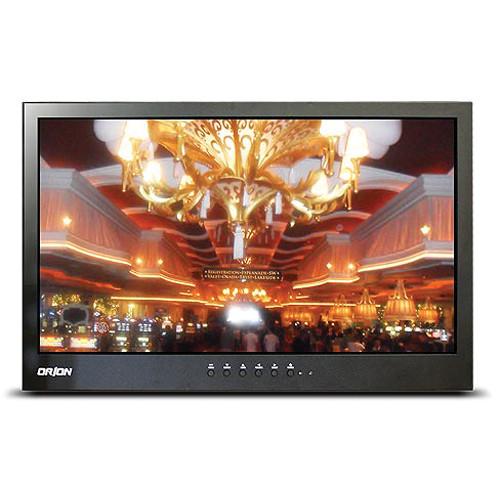

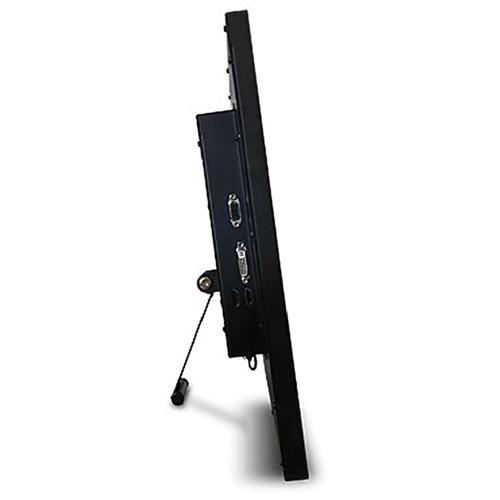

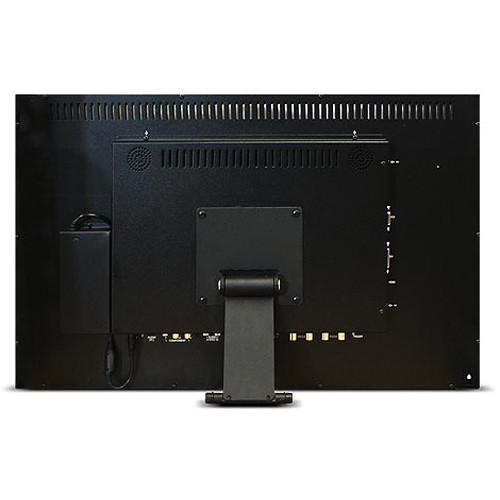

Product description The 23" Wide Premium LED Monitor from Orion Images displays images in 1080p resolution at a 16:9 aspect ratio. The monitor can be connected to a video managements software computer and supports up to 16.7 million display colors for viewing clear videos and photos. The CCTV monitor features a 3D comb filter which works to sharpen pictures and reduce noise. The deinterlace circuitry converts interlaced video, such as common analog television signals or 1080i format HDTV signals into a non-interlaced form. The monitor offers a response time of < 5 ms, a contrast ratio of 1000:1, brightness of 250 cd/m², and horizontal and vertical viewing angle of 170° x 160° respectively, allowing you to view the images clearly even from room corners or when the monitor is mounted at a height. The monitor features BNC, S-Video, VGA, DVI-D, and HDMI video inputs, as well as two built-in stereo speakers for connecting your monitor to a variety of surveillance monitoring devices. This monitor is designed for wall or ceiling mounting and is VESA compatible. - 3D Comb filter, noise reduction, and deinterlace circuitry
- Trigger sensor and auto source sequencing
- Multi-language OSD menu support
- Metal cabinet housing for versatility
- VESA compatible for wall or ceiling mounting
UPC: 836228000238 In the Box Orion Images Wide Premium LED Monitor (23") Limited 3-Year Warranty Brochure PDF 999.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Orion Images Wide Premium LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrion Images 23REDP Specs | Screen Size | 23" / 58.4 cm | | Back Light Unit Type | LED | | Resolution | 1920 x 1080 @ 60 Hz | | Pixel Pitch | 0.265 x 0.2650 mm | | Brightness | 250 cd/m² | | Contrast Ratio | 1000:1 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Display Colors | 16.7 Million | | Response Time | < 5 ms | | Video System | NTSC / PAL | | Frequency | Horizontal: 31 to 64 KHz
Vertical: 55 to 75 KHz | | Interface | Video In / Out (BNC Type): 2 / 2
S-Video In / Out: 1 / 1
VGA In (15Pin D-Sub): 1
DVI-D In / HDMI In: 1 / 2
Audio In (RCA Type): 3 (L+R)
PC Stereo In: 1 | | Transmitter | Remote Control: Yes | | Speaker | 2 x 1 W | | Features | Picture In Picture (PIP): Analog / Digital
Picture By Picture (PBP): BNC / BNC
Picture Enhancement: 3D Comb Filter / Deinterlace / Noise Reduction
Trigger Sensor: Yes (NO / NC)
LCD Protection Glass: No
Auto Power Recovery: Yes
Auto Source Sequencing: Yes
Multi Language: English, Spanish, French, German, Italian | | Cabinet | Material / Color: Metal / Black
Base Stand: Folding Leg | | Power Consumption | < 38 W | | Power | 100 to 240 VAC, 50/60 Hz | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | VESA Mount Size | 100 x 100 mm | | Dimensions (WxHxD) | 21.7 x 13.9 x 3.1" / 55.1 x 35.3 x 7.9 cm | | Weight | 15.6 lb / 7.1 kg | | | | Package Weight | 18.25 lb | | Box Dimensions (LxWxH) | 25.0 x 20.0 x 9.0" |
