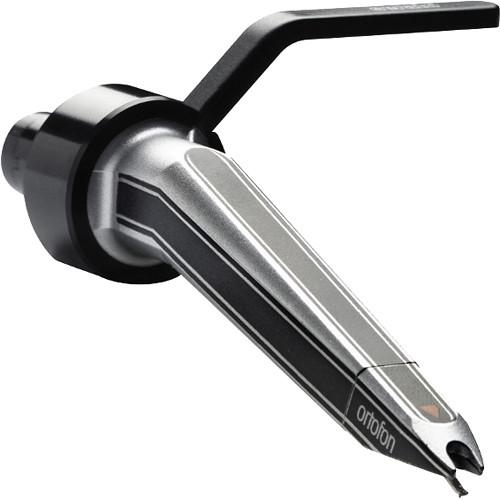

Product description The CC S-120 Single Cartridge with Stylus from Ortofon is a cartridge which features asymmetric suspension technology for improved tracking ability. With a tracking force of 1.5 to 10g, the S-120 is designed to stay in the groove even under extreme live performance conditions. This cartridge provides a low level of record wear, which helps protect your vinyl. It connects directly to the turntable tonearm and comes with an attached stylus. In the Box Ortofon CC S-120 Single Cartridge with Stylus 2g Weight Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ortofon CC S-120 Single Cartridge with Stylus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrtofon S120 CC SINGLE Specs | Output Voltage | 10 mV @ 1 kHz, 2" (5 cm) per second | | Channel Balance | 1.5 dB @ 1 kHz | | Channel Separation | 20 dB @ 1 kHz
15 dB @ 15 kHz | | Frequency Range | 20 Hz - 18 kHz @ -3 dB | | Frequency Response | 20 Hz - 18 kHz @ +3 dB/-2 dB | | Tracking Ability | 120 μm @ 315 Hz at recommended tracking force | | Compliance | 11 μm/mN (dynamic lateral) | | Stylus Type | Spherical | | Stylus Radius | R 18 μm (tip) | | Tracking Force | Range: 1.5 - 10.0 g (15 - 100 mN)
Recommended: 4 g (40 mN) | | Tracking Angle | 20° | | Internal Impedance | 1,680 ohm (DC resistance) | | Internal Inductance | 920 mH | | Load Resistance | 47 kOhm | | Load Capacitance | 200 - 600 pF | | Replacement Stylus | S-120 | | Dimensions | Effective Length: 2" (5.2 cm)
Effective Height: 0.6" (1.4 cm) | | Cartridge Weight | 0.7 oz (18.5 g) |
