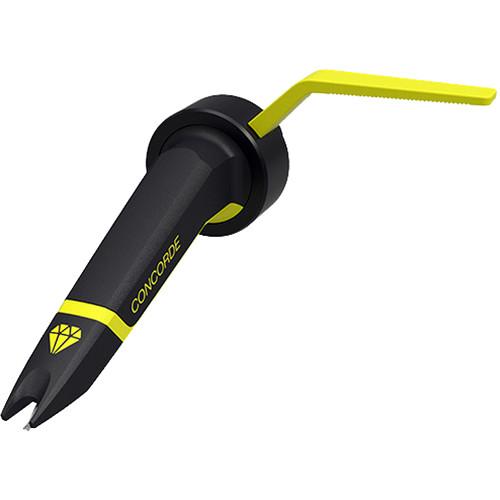

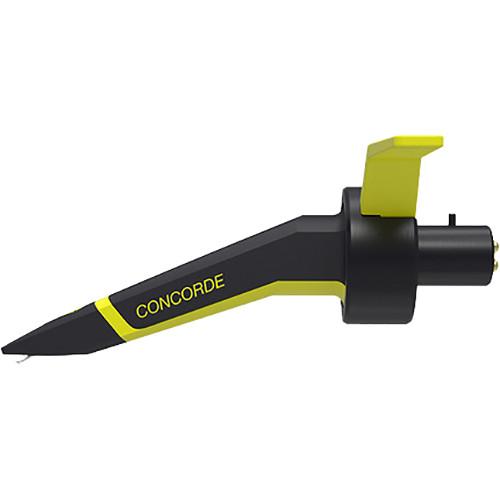

Product description The single Ortofon Concorde MKII CLUB Cartridge is designed for the club DJ and is well suited in a variety of environments including studios, broadcast suites, or clubs. The Special-Elliptic stylus offers more contact area for detailed sound quality. The CLUB's 8 mV output requires less gain from the preamps, providing cleaner sound reproduction and less susceptibility to feedback in live environments. The CLUB is also well suited for archival work and sampling. The Ortofon Concorde MKII CLUB Cartridge ships with a stylus protection guard. -
- The CLUB is well suited for the studio, broadcast suite, or club

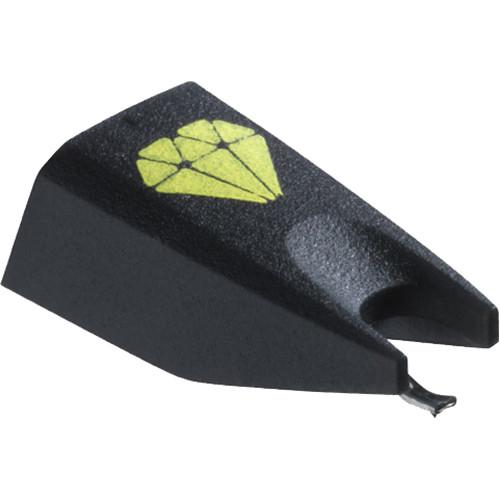

- The special-elliptic stylus allows for detailed sound quality. Its shape fits better in the groove with more contact area, resulting in more intricate details
- The 8 mV output voltage requires less gain from the preamps, providing cleaner sound reproduction and less susceptibility to feedback in live environments.
- Great for archival and sampling

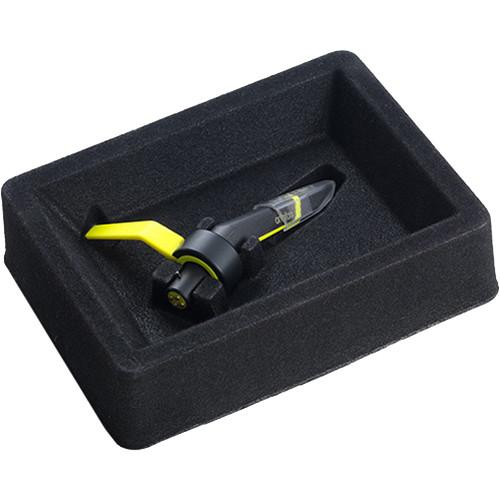

In the Box Ortofon Concorde MKII CLUB (Single Cartridge) Stylus Protection Guard Limited 1-Year Warranty Against Manufacturer's Defects Table of Contents
|
Upload User Manual
Have you got an user manual for the Ortofon Concorde MKII CLUB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrtofon Concorde MK II Specs Output Voltage | 8 mV (at 1 kHz, 5 cm/second) | Channel Balance | 1 dB (at 1 kHz) | Channel Separation | 1 kHz: 25 dB 15 kHz: 15 dB | Frequency Range | 20 Hz to 20 kHz (at -3 dB) | Tracking Ability | 100 μm (at 315 Hz at recommended tracking force) | Compliance | 14 μm/mN (dynamic lateral) | Stylus Type | Special Elliptical r/R 13/25 μm | Tracking Force | Range: 2 to 4 g Recommended: 3 g | Dimensions | Not specified by manufacturer | Cartridge Weight | 18.5 g | | Package Weight | 0.13 lb | Box Dimensions (LxWxH) | 4.7 x 3.5 x 1.2" |
