User Manual for Ortofon Concorde MKII CLUB Click to enlarge the picture
Contents of the user manual for the Ortofon Concorde MKII CLUB
- Product category: Cartridges & Stylus Ortofon
- Brand: Ortofon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ortofon Cartridges & Stylus
|
User manual for the Ortofon Concorde MKII CLUB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ortofon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ortofon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ortofon product will considerably shorten its lifespan!
|

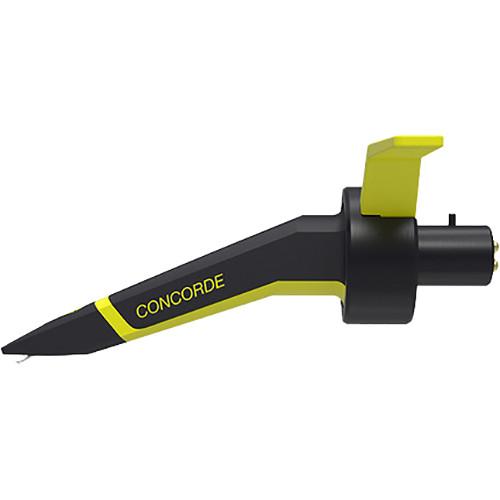

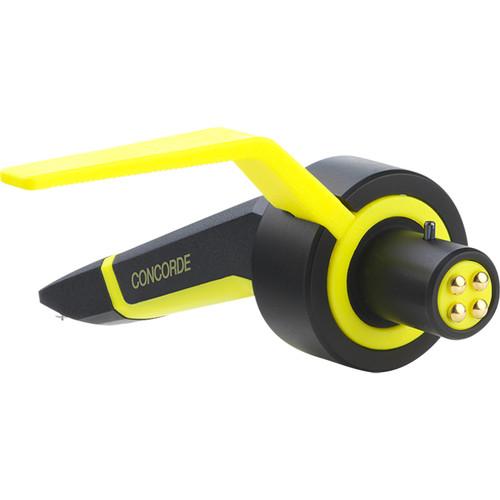

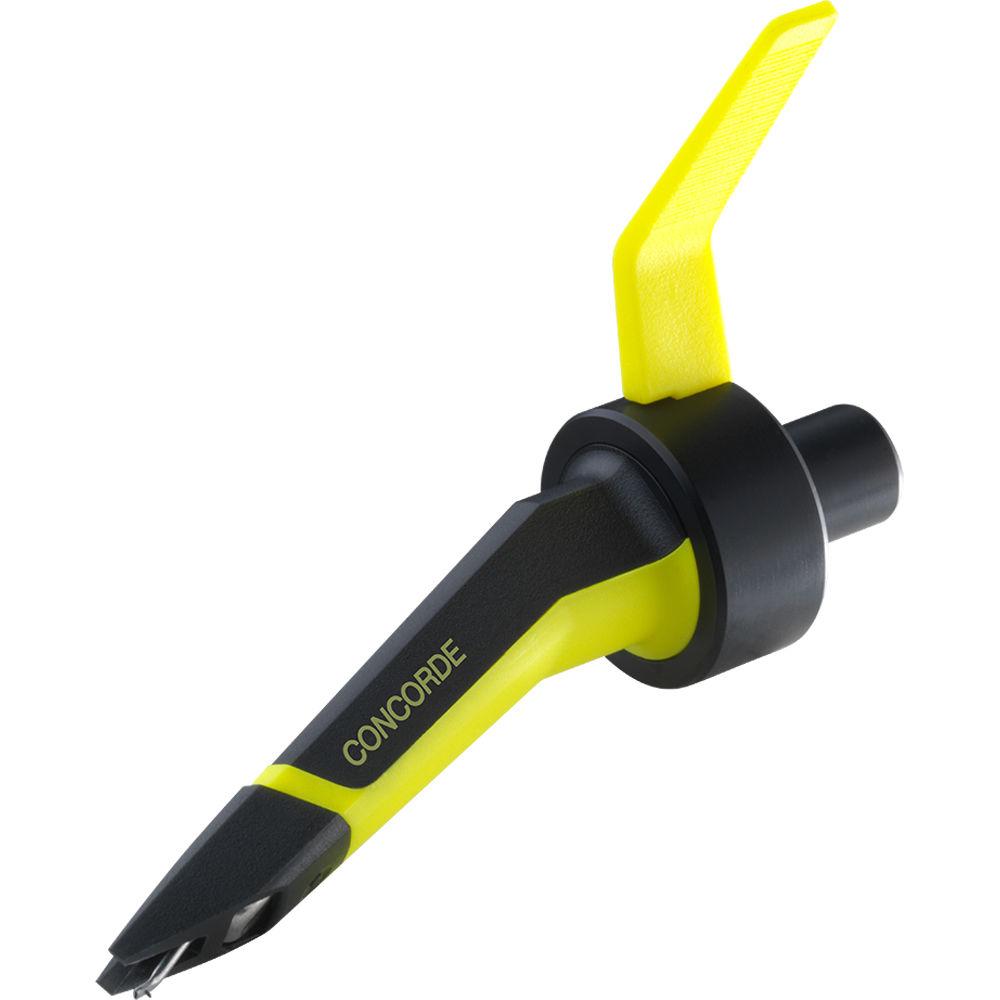

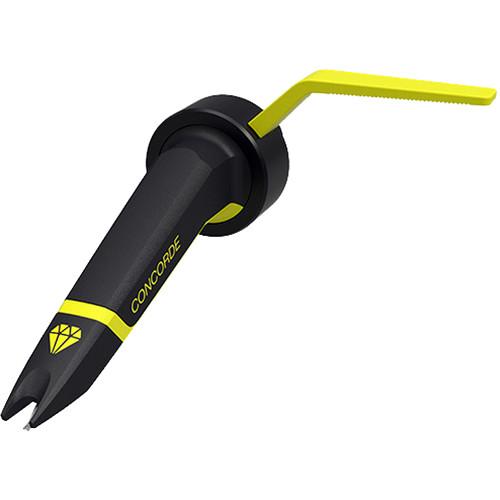

Product description The Ortofon Concorde MKII CLUB Twin is a pair of turntable cartridges designed for the club DJ and is well suited in a variety of environments including studios, broadcast suites, or clubs. Each of the special-elliptic styli offer more contact area for detailed sound quality. The CLUB's 8 mV output requires less gain from the preamps, providing cleaner sound reproduction and less susceptibility to feedback in live environments. The CLUB is also well suited for archival work and sampling. The Ortofon Concorde MKII CLUB Twin ships with two stylus protection guards, a dust brush, and a flight case. -
- The CLUB Twin is well suited for the studio, broadcast suite, or club

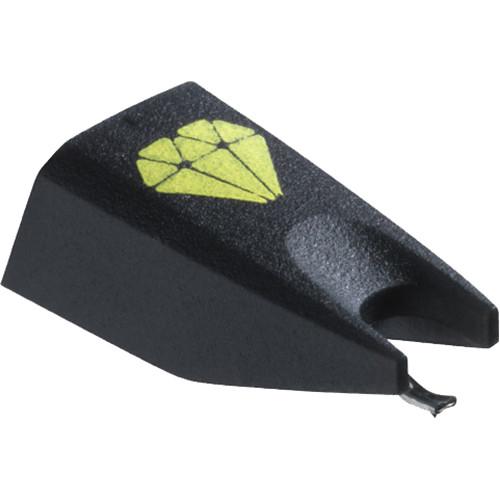

- The special-elliptic styli allows for detailed sound quality. Their shape fits better in the groove with more contact area, resulting in more intricate details
- The 8 mV output voltage requires less gain from the preamps, providing cleaner sound reproduction and less susceptibility to feedback in live environments.
- Great for archival and sampling

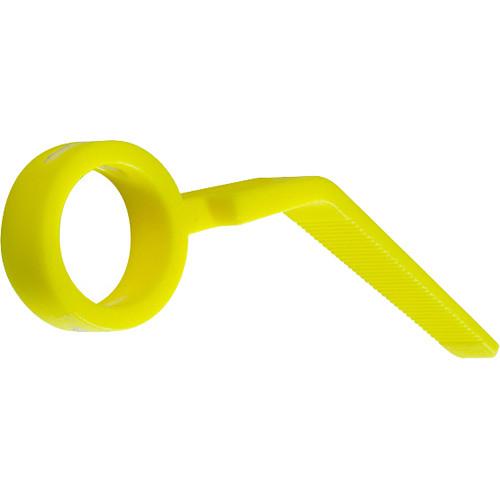

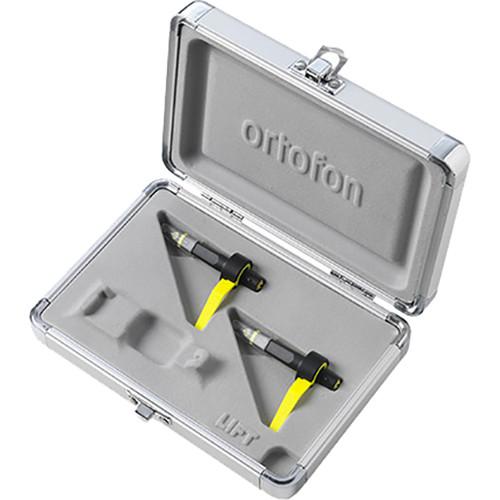

In the Box Ortofon Concorde MKII CLUB (Twin Cartridges with Case) 2 x Stylus Protection Guard Dust Brush Flight Case Limited 1-Year Warranty Against Manufacturer's Defects Table of Contents
|
Upload User Manual
Have you got an user manual for the Ortofon Concorde MKII CLUB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrtofon Concorde MK II Specs Output Voltage | 8 mV (at 1 kHz, 5 cm/second) | Channel Balance | 1 dB (at 1 kHz) | Channel Separation | 1 kHz: 25 dB 15 kHz: 15 dB | Frequency Range | 20 Hz to 20 kHz (at -3 dB) | Tracking Ability | 100 μm (at 315 Hz at recommended tracking force) | Compliance | 14 μm/mN (dynamic lateral) | Stylus Type | Special Elliptical r/R 13/25 μm | Tracking Force | Range: 2 to 4 g Recommended: 3 g | Replacement Stylus | CLUB | Dimensions | Not specified by manufacturer | Cartridge Weight | 18.5 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 74 owners. Add your rating and experience with the product.
