User Manual for Ortofon Concorde MKII DIGITAL Click to enlarge the picture
Contents of the user manual for the Ortofon Concorde MKII DIGITAL
- Product category: Cartridges & Stylus Ortofon
- Brand: Ortofon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ortofon Cartridges & Stylus
 |
User manual for the Ortofon Concorde MKII DIGITAL contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ortofon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ortofon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ortofon product will considerably shorten its lifespan!
|

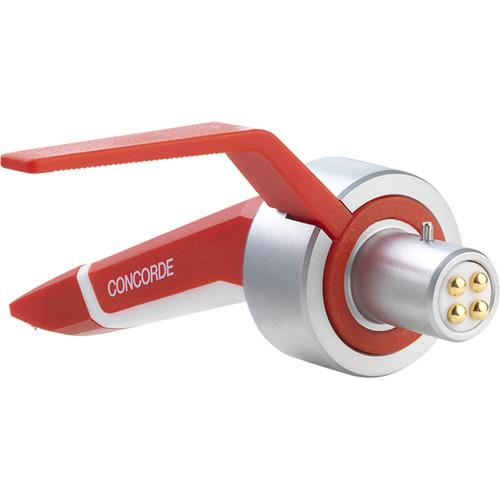

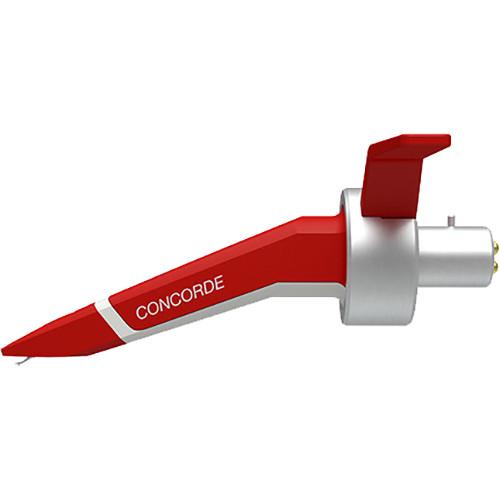

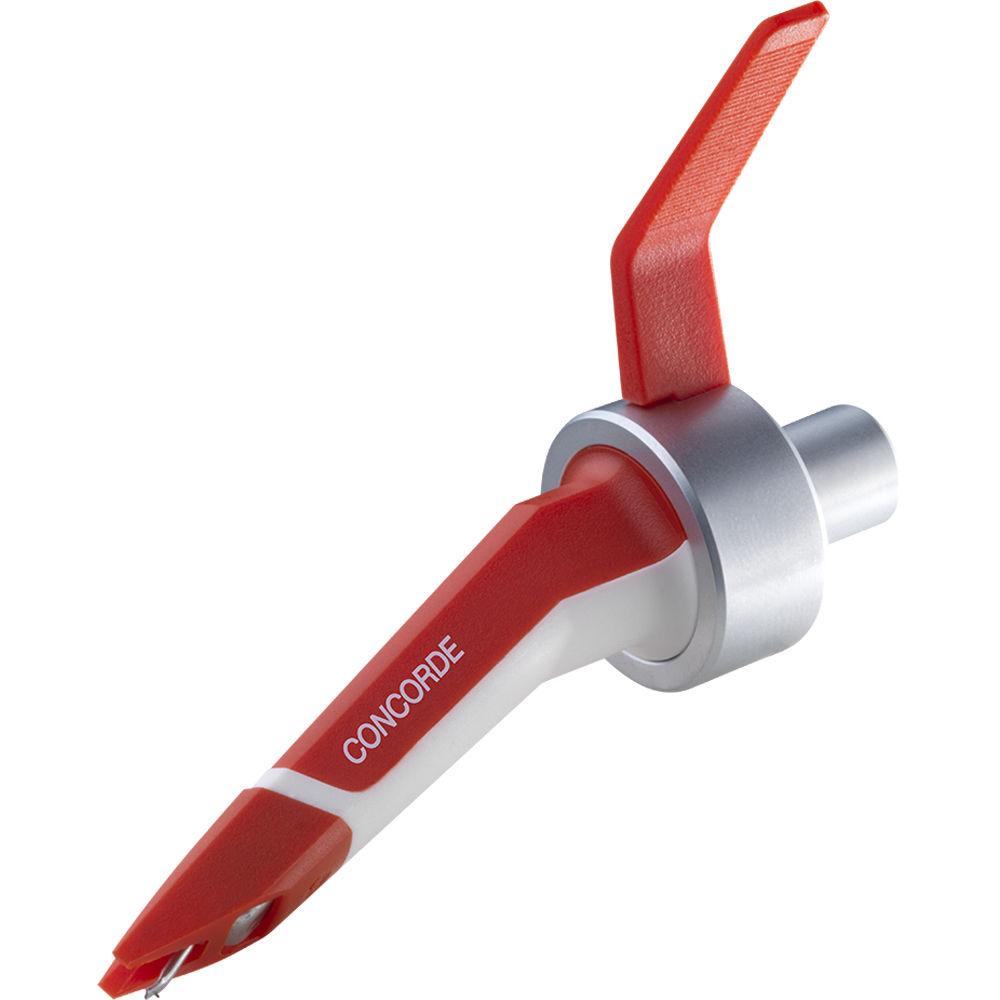

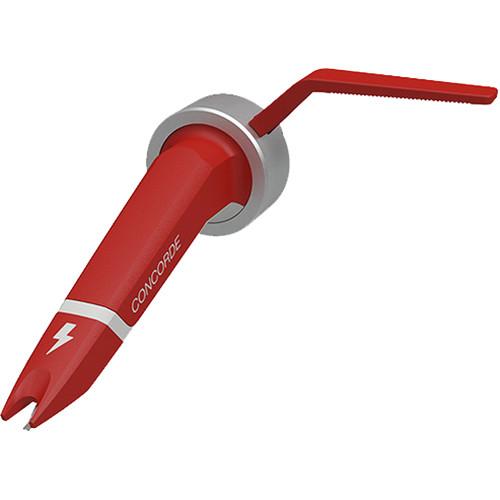

Product description The Ortofon Concorde MKII DIGITAL Twin combines a pair of cartridges, which are designed to extend the life of timecode vinyl, while minimizing errors. Each cartridge offers an optimal output voltage and sound quality for use with conventional vinyl. The optimized voltage output (10 mV) provides maximum signal-to-noise ratio of the audio being fed into the software for a better interpretation of the timecode signal. Additionally, each DIGITAL cartridge decreases the reproduction of frequencies where vinyl wear & tear occurs, helping minimize errors in the timecode signal. The Ortofon Concorde MKII DIGITAL Twin ships with a two protection guards, a dust brush, and a flight case. -
- For the digital DJ
- Designed to extend the life of timecode vinyl
- Minimizes errors in decoding
- The 10 mV output voltage maximizes signal-to-noise ratio for better interpreted timecode signal
- Decrease in the reproduction of frequencies where vinyl wear and crackle occur
- Includes flight case

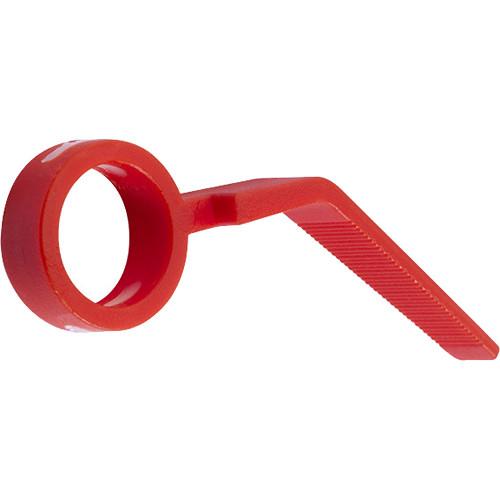

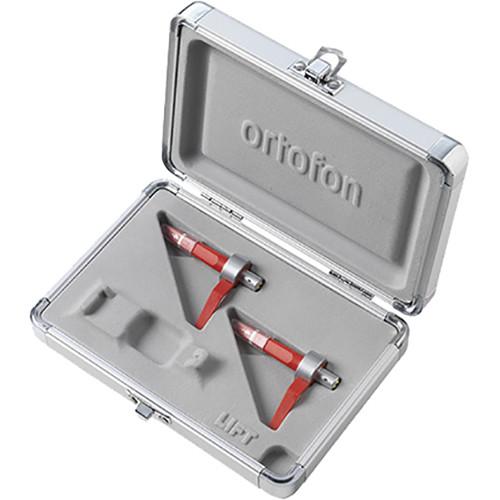

In the Box Ortofon Concorde MKII DIGITAL (Twin Cartridges with Case) 2 x Stylus Protection Guard Dust Brush Flight Case Limited 1-Year Warranty Against Manufacturer's Defects Table of Contents
|
Upload User Manual
Have you got an user manual for the Ortofon Concorde MKII DIGITAL in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrtofon Concorde MK II Specs | Output Voltage | 10 mV (at 1 kHz, 5 cm/second) | | Channel Balance | 1 dB (at 1 kHz) | | Channel Separation | 1 kHz: 22 dB
15 kHz: 15 dB | | Frequency Range | 20 Hz to 18 kHz (at -3 dB) | | Tracking Ability | 100 μm (at 315 Hz at recommended tracking force) | | Compliance | 14 μm/mN (dynamic lateral) | | Stylus Type | Spherical R 18 μm | | Tracking Force | Range: 3 to 5 g

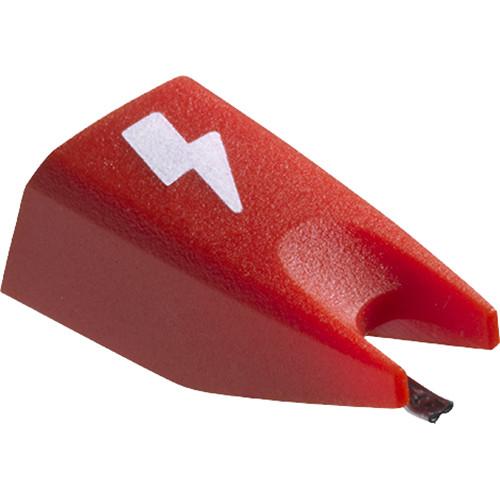

Recommended: 4 g | | Replacement Stylus | DIGITAL | | Dimensions | Not specified by manufacturer | | Cartridge Weight | 18.5 g |
