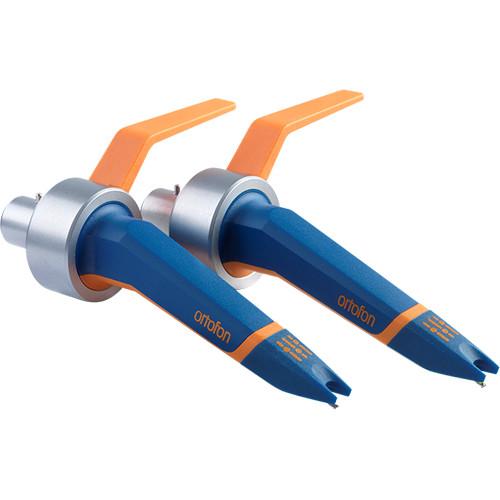

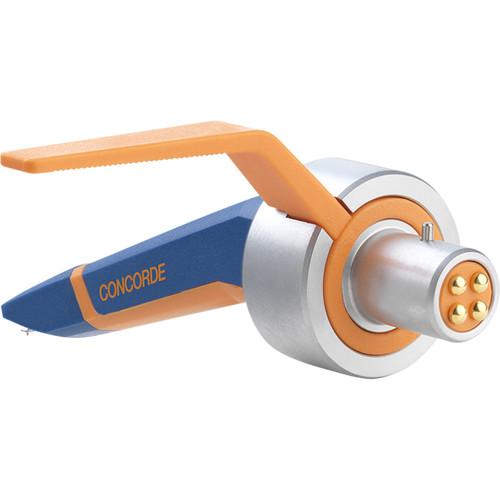

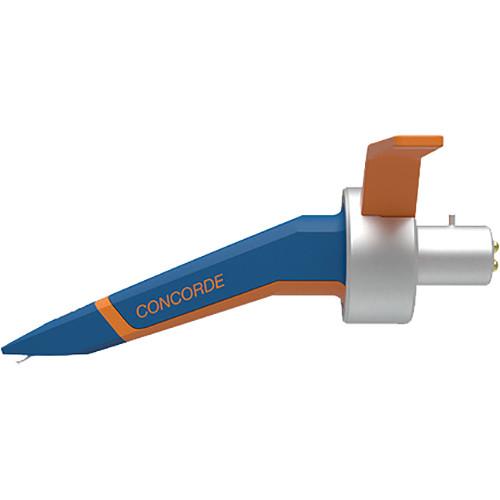

Product description Considered the jack-of-all-trades, the Ortofon Concorde MKII DJ Twin combines a pair of turntable cartridges, which boast accurate sound reproduction and solid groove handling. The spherical styli and balanced cantilevers provide remarkable rigidity for sufficient tracking ability with very low record wear. The Ortofon Concorde MKII DJ Twin ships with two protection guards, a dust brush, and a flight case. -
- Jack-of-all-trades cartridges
- Solid groove handling

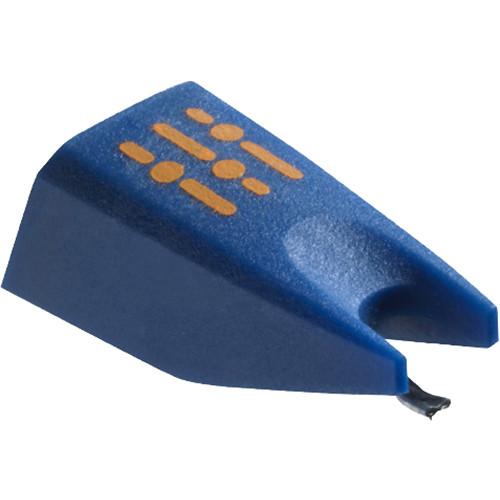

- Spherical stylus with highly-balanced cantilever for remarkable rigidity
- Sufficient tracking ability
- Low record wear
- Accurate sound reproduction
- Includes flight case
In the Box Ortofon Concorde MKII DJ (Twin Cartridges with Case) 2 x Stylus Protection Guard Dust Brush Flight Case Limited 1-Year Warranty Against Manufacturer's Defects Table of Contents
|
Upload User Manual
Have you got an user manual for the Ortofon Concorde MKII DJ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrtofon Concorde MK II Specs | Output Voltage | 6 mV (at 1 kHz, 5 cm/second) | | Channel Balance | 1 dB (at 1 kHz) | | Channel Separation | 1 kHz: 22 dB
15 kHz: 15 dB | | Frequency Range | 20 Hz to 20 kHz (at -3 dB) | | Tracking Ability | 100 μm (at 315 Hz at recommended tracking force) | | Compliance | 14 μm/mN (dynamic lateral) | | Stylus Type | Spherical R 18 μm | | Tracking Force | Range: 3 to 5 g
Recommended: 4 g | | Replacement Stylus | DJ | | Dimensions | Not specified by manufacturer | | Cartridge Weight | 18.5 g | | | | Package Weight | 0.57 lb | | Box Dimensions (LxWxH) | 6.6 x 4.95 x 1.75" |
