User Manual for Ortofon Concorde MKII DJ Click to enlarge the picture
Contents of the user manual for the Ortofon Concorde MKII DJ
- Product category: Cartridges & Stylus Ortofon
- Brand: Ortofon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ortofon Cartridges & Stylus
 |
User manual for the Ortofon Concorde MKII DJ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ortofon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ortofon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ortofon product will considerably shorten its lifespan!
|

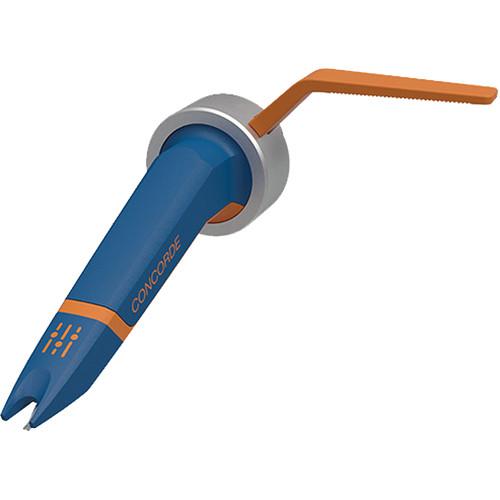

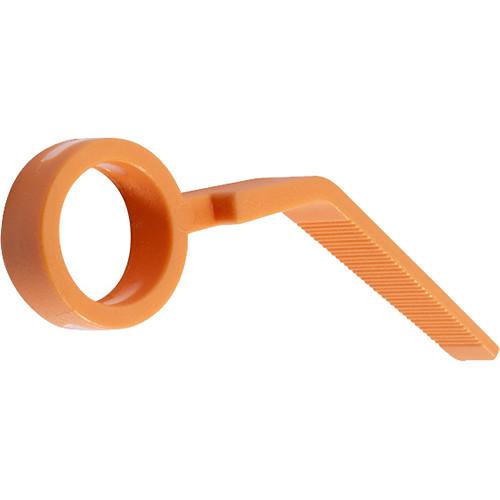

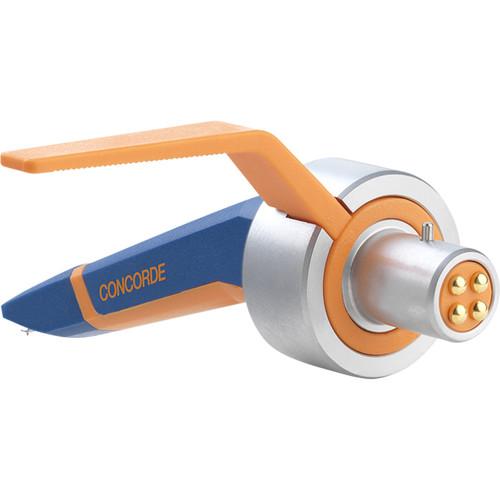

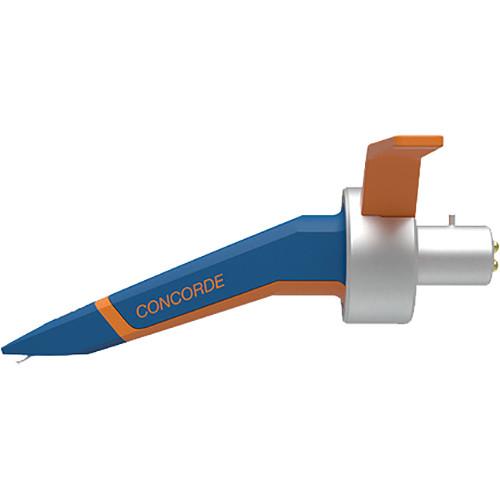

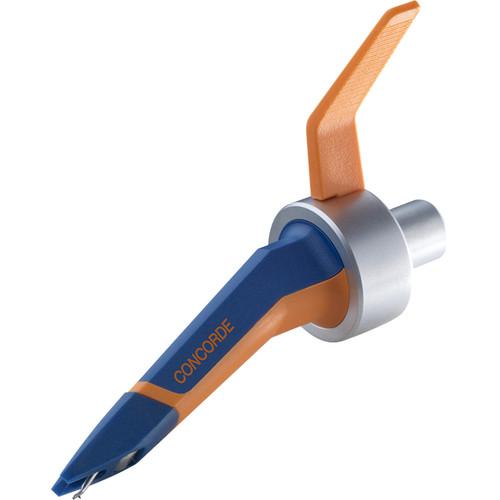

Product description Considered the jack-of-all-trades, the Ortofon Concorde MKII DJ Single is a turntable cartridge boasting accurate sound reproduction and solid groove handling. The spherical stylus and balanced cantilever provide remarkable rigidity for sufficient tracking ability and very low record wear. The Ortofon Concorde MKII DJ Single ships with a protection guard. -
- Jack-of-all-trades cartridge
- Solid groove handling
- Spherical stylus with highly-balanced cantilever for remarkable rigidity
- Sufficient tracking ability
- Low record wear
- Accurate sound reproduction

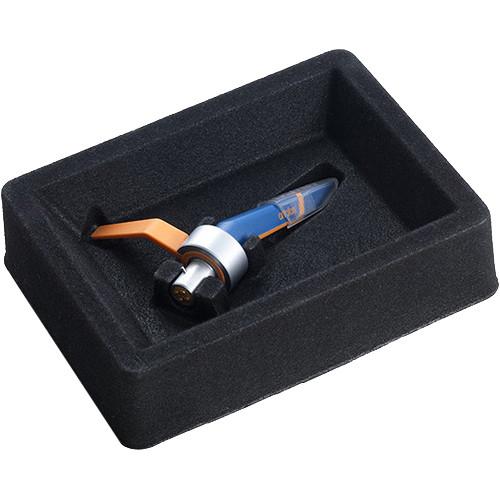

In the Box Ortofon Concorde MKII DJ (Single Cartridge) Stylus Protection Guard Limited 1-Year Warranty Against Manufacturer's Defects Table of Contents
|
Upload User Manual
Have you got an user manual for the Ortofon Concorde MKII DJ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrtofon Concorde MK II Specs | Output Voltage | 6 mV (at 1 kHz, 5 cm/second) | | Channel Balance | 1 dB (at 1 kHz) | | Channel Separation | 1 kHz: 22 dB
15 kHz: 15 dB | | Frequency Range | 20 Hz to 20 kHz (at -3 dB) | | Tracking Ability | 100 μm (at 315 Hz at recommended tracking force) | | Compliance | 14 μm/mN (dynamic lateral) | | Stylus Type | Spherical R 18 μm | | Tracking Force | Range: 3 to 5 g
Recommended: 4 g | | Replacement Stylus | DJ | | Dimensions | Not specified by manufacturer | | Cartridge Weight | 18.5 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
