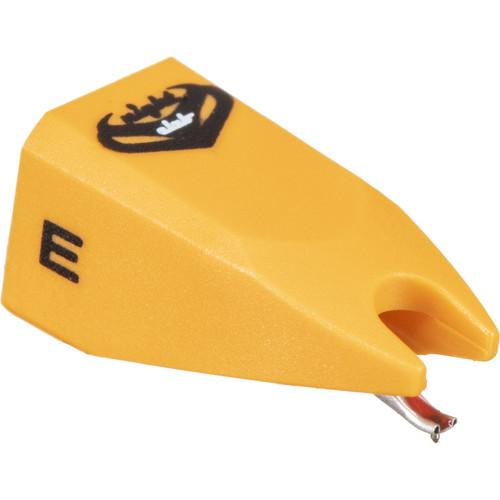

User Manual for Ortofon Nightclub MKII Replacement Stylus Click to enlarge the picture
Contents of the user manual for the Ortofon Nightclub MKII Replacement Stylus
- Product category: Cartridges & Stylus Ortofon
- Brand: Ortofon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ortofon Cartridges & Stylus
|
User manual for the Ortofon Nightclub MKII Replacement Stylus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ortofon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ortofon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ortofon product will considerably shorten its lifespan!
|
Product description The Ortofon Nightclub MKII Replacement Stylus is designed to replace the original stylus on the Nightclub MKII cartridge, which was updated with several sonic enhancements. This high-output stylus offers a powerful, energetic sound with enhanced performance from integrated phono preamps such as the ones found in DJ mixers. Many club DJs and studio engineers believe the Nightclub MKII to be a high-end cartridge comparable to most audiophile cartridges. In the Box Ortofon Nightclub MKII Replacement Stylus Limited 1-Year Warranty Against Manufacturer's Defects Table of Contents
|
Upload User Manual
Have you got an user manual for the Ortofon Nightclub MKII Replacement Stylus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrtofon Nightclub MKII Specs | Output Voltage | 8 mV (at 1 kHz, 5 cm/second) | | Channel Balance | 1.5 dB (at 1 kHz) | | Channel Separation | 1 kHz: 23 dB
15 kHz: 15 dB | | Frequency Range | 20 Hz to 22 kHz (-3 dB) | | Frequency Response | 20 Hz to 20 kHz (±1.5 dB) | | Tracking Ability | 80 μm (at 315 Hz at recommended tracking force) | | Compliance | 7 μm/mN (dynamic lateral) | | Stylus Type | Special elliptical | | Stylus Radius | Stylus Tip Radius: r/R 13/25 μm | | Tracking Force | Range: 2 to 5 g (20 to 50 mN)
Recommended: 3 g (30 mN) | | Tracking Angle | 20° | | Internal Impedance | Internal Impedance, DC Resistance: 1 Ohm | | Internal Inductance | 580 mH | | Load Resistance | 47 kOhm | | Load Capacitance | 200 to 600 pF | | Dimensions | Not specified by manufacturer | | Cartridge Weight | 0.7 oz / 18.5 g | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 1.4 x 1.3 x 1.3" |
