User Manual for Ortofon Pro S OM Premount - Entry Level Cartridge with Stylus and Headshell Click to enlarge the picture
Contents of the user manual for the Ortofon Pro S OM Premount -
- Product category: Cartridges & Stylus Ortofon
- Brand: Ortofon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ortofon Cartridges & Stylus
 |
User manual for the Ortofon Pro S OM Premount - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ortofon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ortofon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ortofon product will considerably shorten its lifespan!
|

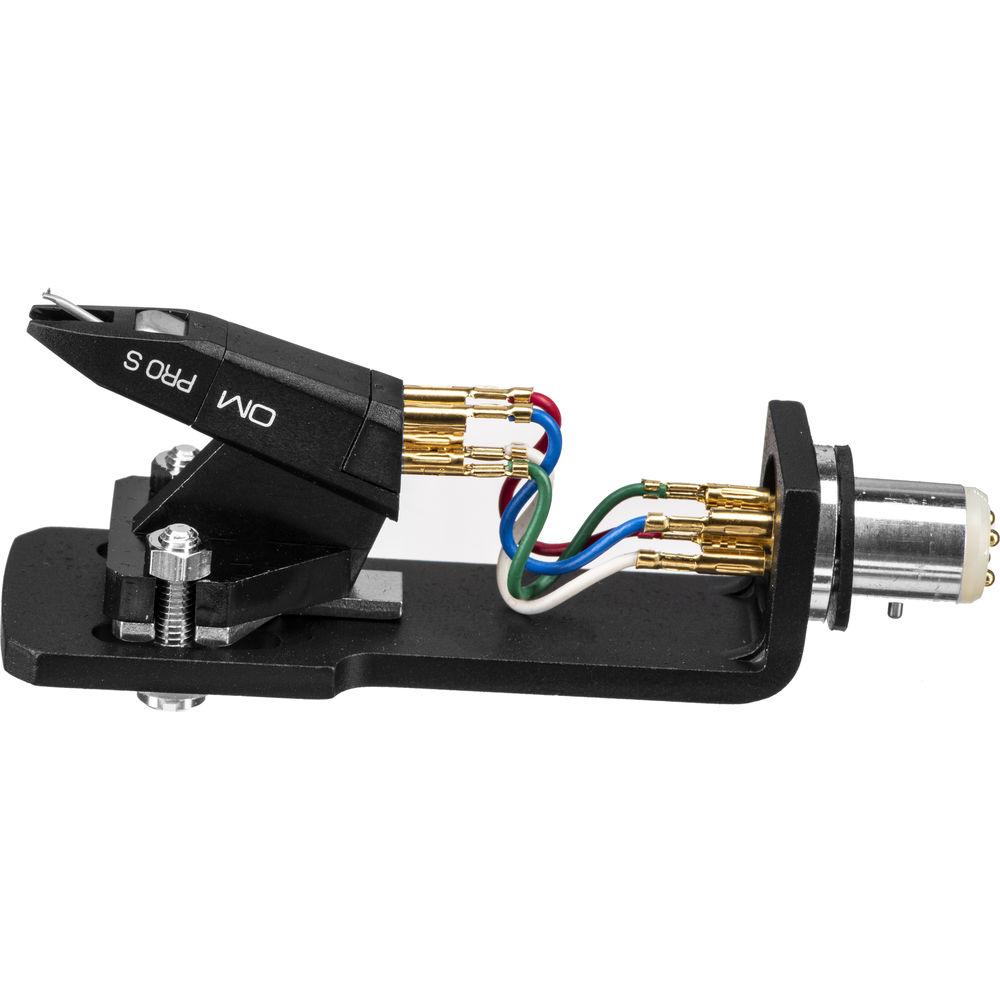

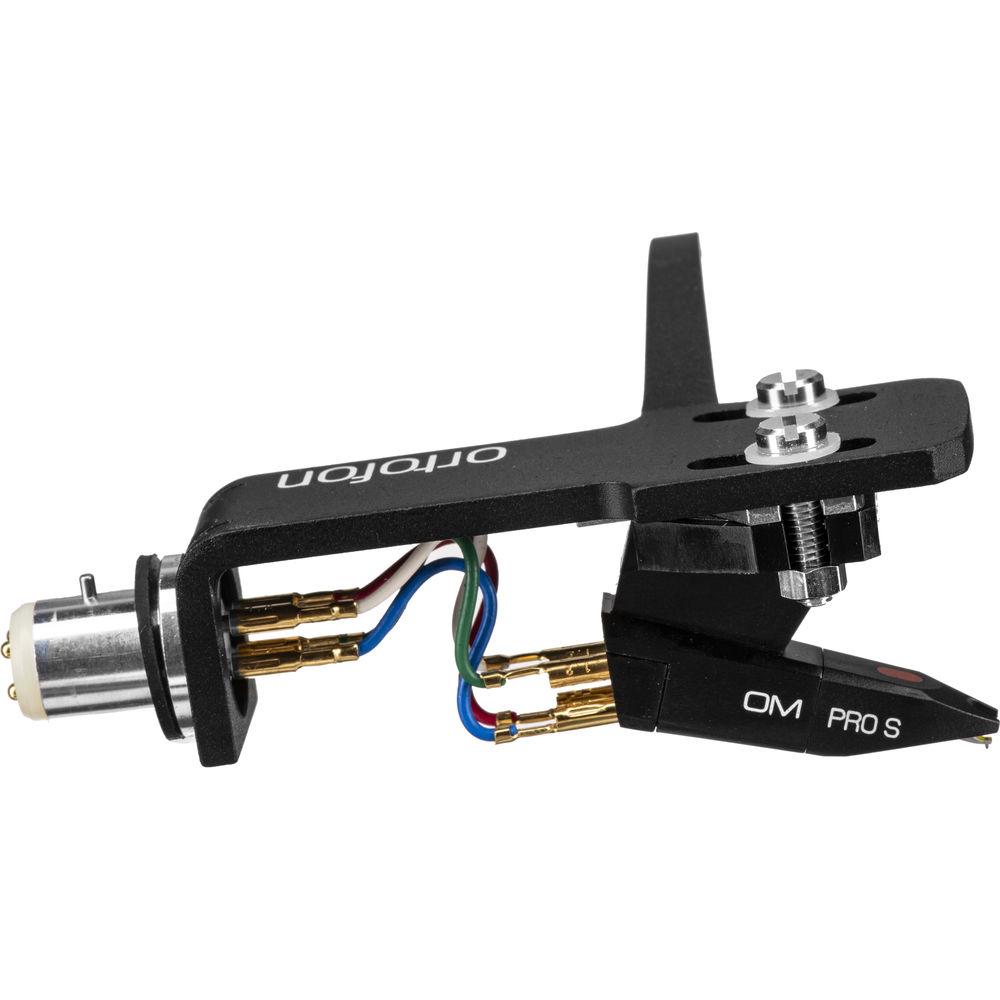

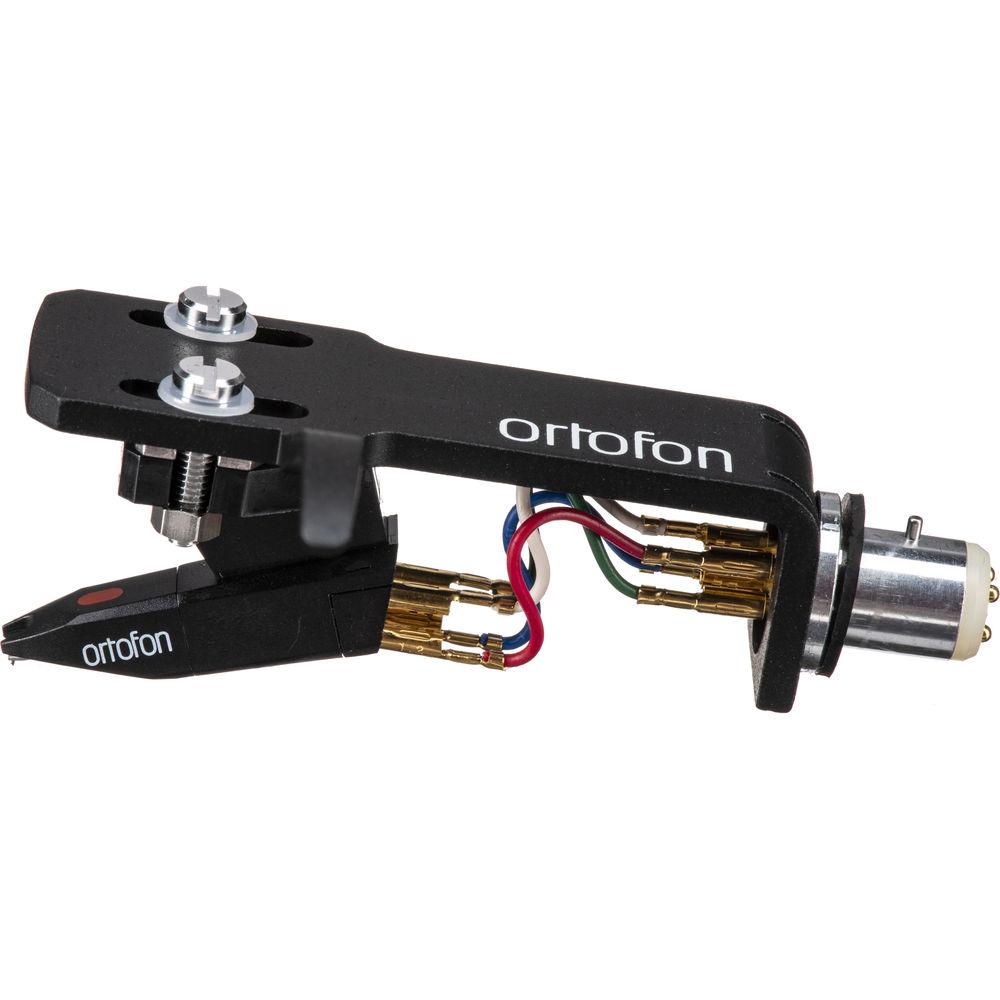

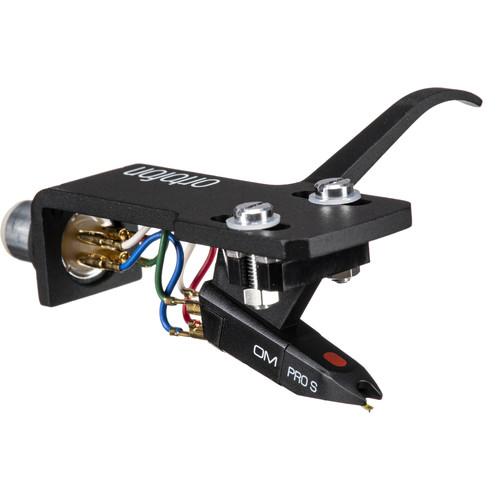

Product description The Ortofon Pro S OM Premount is an entry-level cartridge, which includes the Pro S stylus and is installed on the OM-Series headshell. - Pro S - OM Series Cartridge and Stylus (Single) The OM version of the Ortofon Pro S Cartridge is designed for mounting onto Ortofon headshells. This package includes a single cartridge and preinstalled stylus. The Pro S retains all the sonic attributes of the Pro Silver, but features a wider stylus for low wear and enhanced durability.
- DJ Headshell for OM Series Cartridges (Black) This black Ortofon Headshell will accomodate most DJ cartridges but is particularly useful for mounting the Ortofon OM series cartridges onto turntables. The headshell features a black finish that complements their Nightclub, Nightclub II, and Pro S model cartridges.
In the Box Bundle Items Pro S - OM Series Cartridge and Stylus (Single) - Pro S OM Cartridge with Stylus
DJ Headshell for OM Series Cartridges (Black) Table of Contents
|
Upload User Manual
Have you got an user manual for the Ortofon Pro S OM Premount - Entry Level Cartridge with Stylus and Headshell in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Pro S - OM Series Cartridge and Stylus (Single)
| Output Voltage | 5 mV, 5 cm/s @ 1 kHz | | Channel Balance | 2 dB @ 1 kHz | | Channel Separation | 20 dB @ 1 kHz
15 dB @ 15 kHz | | Frequency Range | 20 Hz to 20 kHz, -3 dB | | Frequency Response | 20 Hz to 18 kHz, +/- 2 dB | | Tracking Ability | Recommended Tracking Force: 70 μm at 315 Hz | | Compliance | 7 μm/mN, dynamic, lateral | | Stylus | Type: Spherical
Tip Radius: 18 μm | | Tracking Force | 3 to 5 g (30 to 50 mN)
Recommended: 4.0 g (40 mN) | | Angle | Tracking: 20° | | Impedance | Internal: 750 Ω, DC Resistance | | Inductance | Internal: 450 mH | | Recommended Load Impedance | 47 kΩ | | Recommended Load Capacitance | 200 to 600 pF | | Weight | 0.6 oz (18.5 g) | | | | Box Dimensions (LxWxH) | 4.7 x 3.5 x 1.3" | - DJ Headshell for OM Series Cartridges (Black)
| | | Box Dimensions (LxWxH) | 4.1 x 2.4 x 0.9" |
