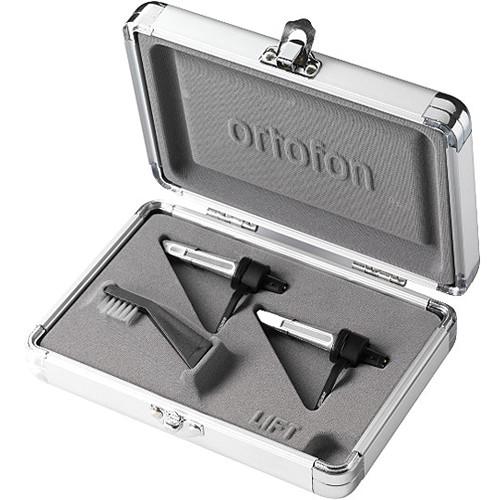

Product description The S-120 CC Twin Cartridges with 2-Styli & Case from Ortofon employ asymmetric suspension technology that enhances cartridge performance. The impressive tracking function ensures that the S-120 cartridge stays in the groove even during live performance conditions. In addition, its design achieves a low level of record wear, which helps protect the vinyl. - Enhanced tracking performance for scratching and turntablism
- Horizontal tracking ability tops 120µm
- Vinyl wear reduced to an absolute minimum
- Absolute flexibility in all settings
- Elimination of setup and calibration requirements
- High level of sound quality
In the Box Ortofon S-120 CC Twin Cartridges with 2-Styli & Case Flight Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ortofon S-120 CC Twin Cartridges with 2-Styli & Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOrtofon S120 CC TWIN Specs | Output Voltage | At 1,000 Hz, 5 cm/sec: 10 mV | | Channel Balance | At 1 kHz: 1.5 dB | | Channel Separation | At 1 kHz: 20 dB
At 15 kHz: 15 dB | | Frequency Range | At -3 dB: 20 to 18,000 Hz | | Frequency Response | 20 to 18,000 Hz +3 dB/-2 dB | | Tracking Ability | At 315 Hz (Recommended Tracking Force): 120 µm | | Compliance | 11 µm/mN (dynamic, lateral) | | Stylus Type | Spherical | | Stylus Radius | Tip: R 18 µm | | Tracking Force | Range: 0.05 to 0.35 oz (1.50 to 10.00 g / 15 to 100 mN)
Recommended: 0.1 oz (4.0 g / 40 mN) | | Impedance | DC resistance: 1,680 Ω (internal) | | Internal Inductance | 920 mH | | Load Resistance | 47 kΩ (recommended) | | Load Capacitance | 200 to 600 pF (recommended) | | Cartridge Weight | 0.6 oz (18.5 g) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 6.063 x 4.961 x 1.732" |
