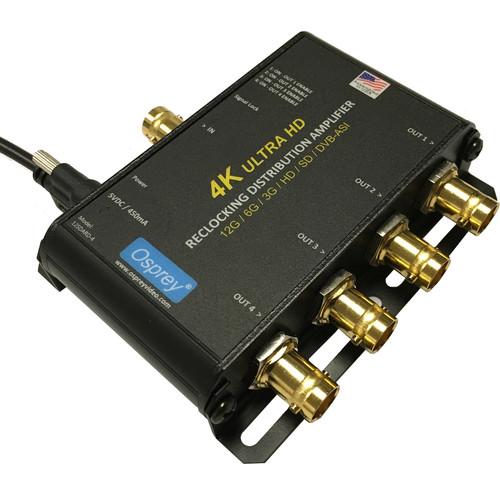

Product description Split one SDI source into four with the Osprey 12SDARD-4 1x4 12G-SDI Reclocking Distribution Amplifier. SD, HD, 3G, 6G, and 12G-SDI standards are supported, compatible with SD, HD, and 4K workflows. Outgoing SDI signals are reclocked to ensure that long cable runs will not result in signal degradation. With 12G-SDI signals, cable lengths up to 229' are possible, enabling large room coverage for conventions and live events. A USB power supply and locking cable are included, in addition to mounting brackets for semi-permanent installation. UPC: 850189006559 In the Box Osprey 12SDARD-4 1x4 12G-SDI Reclocking Distribution Amplifier Mounting Brackets Locking USB Cable Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey 12SDARD-4 1x4 12G-SDI Reclocking Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey 12SDARD-4 Specs | Inputs | 1 x BNC, SD/HD/3G/6G/12G-SDI | | Outputs | 6 x BNC, SD/HD/3G/6G/12G-SDI | | SDI Compliance | SMPTE: 259M, 292, 344M, 424M, ST-2081, ST-2082 | | Cable Equalization | 12G: 229' / 70 m
3G: 492' / 150 m
HD: 984' / 300 m
SD: 1640' / 500 m
(Tested with Belden 1694A cable) | | Dimensions | 3.7 x 0.9 x 3.0" / 95 x 22 x 80 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 7.1 x 4.8 x 1.3" |
