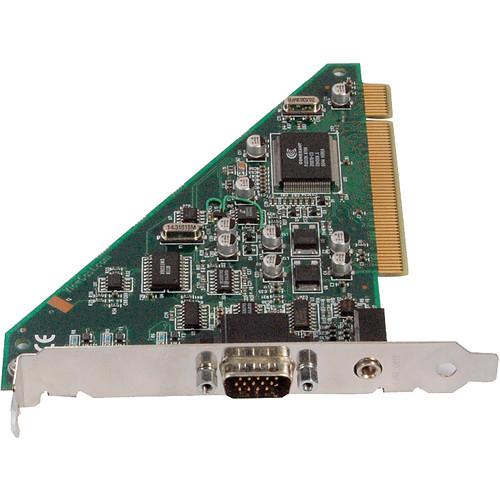

User Manual for Osprey 210 Video Capture Card Click to enlarge the picture
Contents of the user manual for the Osprey 210 Video Capture Card
- Product category: Computer Hardware Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Computer Hardware
|
User manual for the Osprey 210 Video Capture Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|
Product description The Osprey 210 is a single channel analog video card with unbalanced stereo audio input, designed for mission critical delivery, such as ATM machine security and medical and scientific equipment applications. It offers selectable Composite BNC and S-Video mini-DIN video inputs, along with an RCA audio input, all on a breakout cable.
Two or more cards can be deployed in a single PC chassis for maximum versatility. - Driver Support
-
- Microsoft DirectShow drivers are available for compatibility with most software
- Linux
- Windows SDK lets you create custom applications
- Driver Based Pre-Processing
-
- Closed-caption extraction/rendering
- Logo/bitmap overlay
- Scaling, cropping, de-interlacing and inverse telecine
- Osprey SimulStream Ready
- SimulStream is an optional Osprey feature which allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption, and overlays, facilitating simultaneous delivery to multiple applications.
UPC: 850189006078 In the Box Osprey 210 Video Capture Card Low-Profile Bracket Breakout Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey 210 Video Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey Osprey 210 Specs | Format | PCI 32-bit / 5 V | | Breakout Cable Connector | 15-pin connector (breakout cable included) | | Video Input | 1 x Composite on BNC
1 x S-Video on mini-DIN | | Video Modes | NTSC/PAL
720 x 480 29.97, 30/i (NTSC)
852 x 480, 29.97, 30/i (NTSC Wide Screen)
720 x 576 25/i (PAL)
Wide Screen Signaling (WSS) | | Audio Input | 1 x Unbalanced stereo via 2 RCA connectors | | Audio Output | Unbalanced stereo line (3.5 mm) | | Power Consumption | 2.45 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 167°F (-40 to 75°C) | | Operating Relative Humidity | 5 to 80% (non-condensing) | | Storage Relative Humidity | 95% RH (non-condensing); gradient 30% per hour | | Operating Altitude | 0 to 10,000 ft (0 to 3,048 m) | | Storage Altitude | 0 to 50,000 ft (0 to 15,240 m) | | Dimensions | L x H: 5 x 4.2" (12.9 x 10.7 cm)
Full-height/short | | Weight | 2.5 oz (71 g) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 9.0 x 5.5 x 2.2" |
