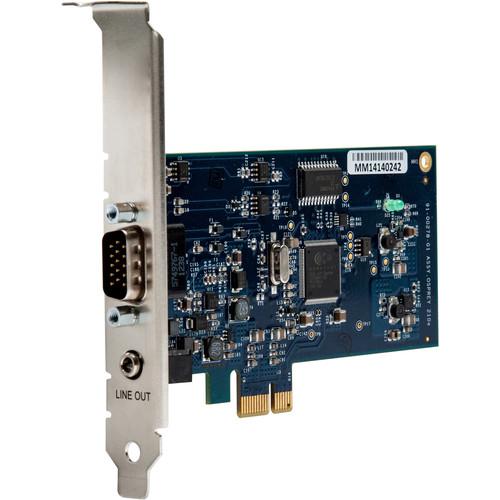

User Manual for Osprey 210e Analogue Video Capture Card Click to enlarge the picture
Contents of the user manual for the Osprey 210e Analogue Video Capture Card
- Product category: Computer Hardware Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Computer Hardware
|
User manual for the Osprey 210e Analogue Video Capture Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|
Product description The ViewCast Osprey 210e Analogue Video Capture Card is a simple PCIe video interface for capturing and streaming composite, S-video, and unbalanced analogue audio. When used on the Windows platform, the provided driver enables the card to interact with streaming and video-on-demand (VOD) applications written for the Microsoft DirectShow API, such as Silverlight. For Linux users and developers, open source drivers are available from the usual repositories. The included breakout cable has connections for Composite BNC and S-video, and a supplied adapter enables the connection of an RCA composite source. Audio comes into the breakout cable via either stereo RCA or stereo 3.5 mm mini jack. - Closed-caption extraction and rendering
- Logo or bitmap graphic overlay insertion
- Scaling, cropping, de-interlacing, and pull-down removal (inverse telecine)
- Use alongside other Osprey cards to increase the number and variety of inputs
- Loss of video automatic test pattern generation with text overlay option
UPC: 850189006016 In the Box Osprey 210e Analogue Video Capture Card RCA Adapter Breakout Cable Low Profile Bracket Driver and Documentation Limited 2-Year Warranty User Manual PDF 3.2mbsefacarysyycfzfudcfqsw Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey 210e Analogue Video Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey 210e Specs | Video System | NTSC/PAL | | Input and Output Connectors | 1x Composite BNC Video Input (RCA Adapter Included)
1x S-Video Mini-Din Video Input
1x Unbalanced 2-Channel RCA Audio Input
1x Unbalanced 3.5 mm Stereo Mini Audio Input
1x Unbalanced 3.5 mm Stereo Line Audio Output | | System Requirements | Windows Driver (for Microsoft DirectShow API)
Windows XP
Windows 7
Linux Driver
Various Distributions: Available from Open Source Repositories
Hardware
Dependent on Software Being Used (Multi-Core Processors Recommended)
Free PCIe x1 Full Height Slot | | Dimensions (L x H) | 5.00 x 2.71" (12.70 x 6.88 cm) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 9.0 x 5.4 x 2.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 75 owners. Add your rating and experience with the product.
