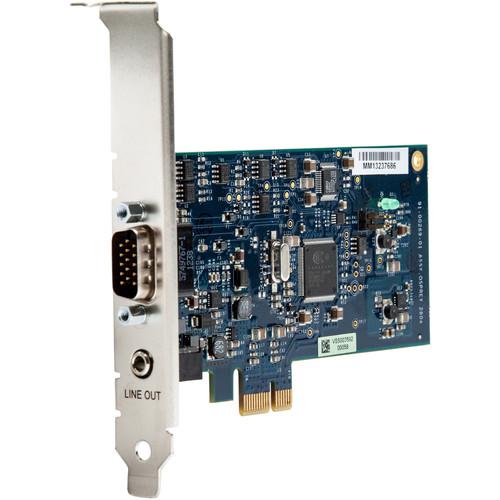

User Manual for Osprey 260e Video Capture Card Click to enlarge the picture
Contents of the user manual for the Osprey 260e Video Capture Card
- Product category: Computer Hardware Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Computer Hardware
|
User manual for the Osprey 260e Video Capture Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|
Product description The Osprey 260e is a single channel analog capture card offering Composite BNC, Component 3-BNC, and S-Video mini-DIN selectable inputs, along with balanced XLR or unbalanced RCA stereo audio, all via a breakout cable. The S-Video input comes on BNC connectors and is converted via an included BNC to mini-DIN adapter.
Two or more cards can be deployed in a single PC chassis for maximum versatility. - Driver Support
-
- Microsoft DirectShow drivers are available for compatibility with most software
- Open source Linux V4L drivers available
- Microsoft Windows lets you create custom applications
- Driver Based Pre-Processing (Windows DirectShow Only)
-
- Closed-caption extraction/rendering
- Logo/bitmap overlay
- Scaling, cropping, de-interlacing and inverse telecine
- Osprey SimulStream Ready
- SimulStream is an optional Osprey feature which allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption, and overlays, facilitating simultaneous delivery to multiple applications.
UPC: 850189006030 In the Box Osprey 260e Video Capture Card BNC to Mini-DIN Adapter Breakout Cable Low Profile Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey 260e Video Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey Osprey 260e Specs | Format | 1 x PCIe
Slots: x1, x4, x8, or x16
PCIe 1.1 | | Breakout Cable Connector | 15-pin connector (breakout cable included) | | Video Input | 1 x Composite on BNC
1 x Component on 3 BNCs
1 x Y/C on 2 BNCs (BNC to mini-DIN adapter) | | Video Modes | NTSC/PAL
720 x 480 29.97, 30/i (NTSC)
852 x 480, 29.97, 30/i (NTSC Wide Screen)
720 x 576 25/i (PAL)
Wide Screen Signaling (WSS) | | Audio Input | 1 x Balanced stereo via 2 XLR connectors
1 x Unbalanced stereo via 2 RCA connectors | | Audio Output | Unbalanced stereo line (3.5 mm) | | Power Consumption | 3.58 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 167°F (-40 to 75°C) | | Operating Relative Humidity | 5 to 80% (non-condensing) | | Storage Relative Humidity | 95% RH (non-condensing); gradient 30% per hour | | Operating Altitude | 0 to 10,000 ft (0 to 3,048 m) | | Storage Altitude | 0 to 50,000 ft (0 to 15,240 m) | | Dimensions | L x H: 5 x 2.7" (12.7 x 6.7 cm)
Low profile/half length | | Weight | 2.3 oz (67 g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 9.0 x 5.5 x 2.3" |
