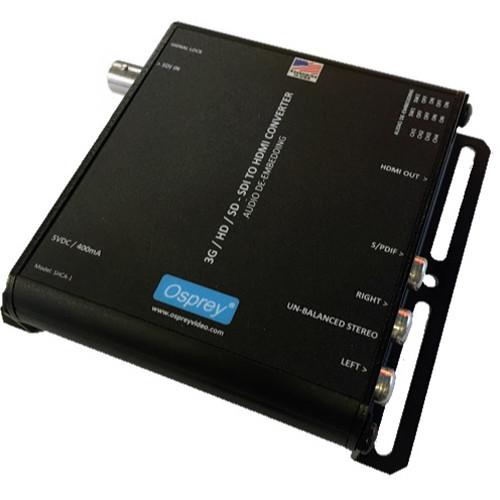

Product description The 3G-SDI to HDMI Converter with Audio De-Embedding from Osprey features automatic input detection that accepts any single-link SDI input up to 3G, and passes it to an HDMI 1.4 output while preserving four channels of embedded audio. In addition, the converter can de-embed one stereo pair of unbalanced or S/PDIF audio powered by USB via a locking connector. It is suitable for streaming workflows. In the Box Osprey 3G-SDI to HDMI Converter with Audio De-Embedding USB Wall Power Supply Mounting Brackets Locking USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey 3G-SDI to HDMI Converter with Audio De-Embedding in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey 97-21211 Specs | Video Inputs | 1 x 3G/HD/SD SDI, BNC with embedded audio (up to 4 stereo pairs) | | Video Output | 1 x HDMI type A 1.4 | | Audio Outputs | 1 x RCA, unbalanced stereo
1 x RCA, S/PDIF | | Cable Equalization | 328' / 100 m at 3G
656' / 200 m at HD
1312' / 400 m at SD | | Supported Resolutions | 3G-SDI
1080p: 60, 59.94, 50
HD-SDI
1080p: 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50
SD-SDI
NTSC 480i
PAL 576i | | LED Indicators | Power
SDI signal lock | | Power Connector | Locking USB Mini-B | | Power | 5 VDC @ 2 W
May be powered by USB charger, PC, or portable battery pack | | Standards Compliance | SMPTE 259M, 292, 344M, 424M | | Dimensions (L x H x W) | 3.8 x 0.87 x 3.8" / 9.6 x 2.20 x 9.6 cm | | Weight | 0.2 lb / 0.09 kg |
