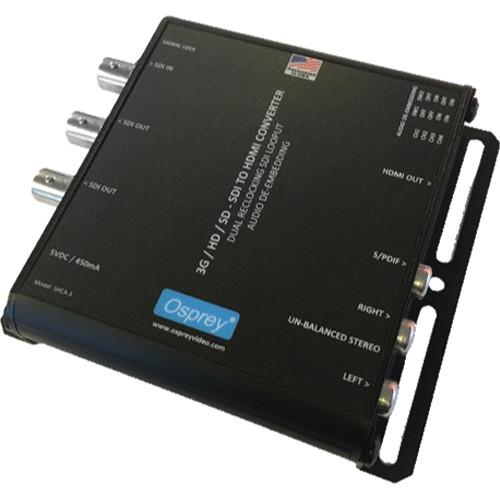

User Manual for Osprey 3G-SDI to HDMI Converter with Audio De-Embedding & SDI Loop-Through Out Click to enlarge the picture
Contents of the user manual for the Osprey 3G-SDI to HDMI Converter with
- Product category: Signal Converters Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Signal Converters
|
User manual for the Osprey 3G-SDI to HDMI Converter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|
Product description The 3G-SDI to HDMI Converter from Osprey features automatic input detection, audio de-embedding, and 3G-SDI loop-though outputs. It accepts any single-link SDI input up to 3G and passes it to an HDMI 1.4 output and two reclocking SDI outputs, preserving four channels of embedded audio. In addition, the converter can de-embed one stereo pair of unbalanced or S/PDIF audio powered by USB via a locking connector. It is suitable for streaming workflows. UPC: 850189006528 In the Box Osprey 3G-SDI to HDMI Converter with Audio De-Embedding & SDI Loop-Through Out Wall USB Power Supply Locking USB Cable Mounting Brackets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey 3G-SDI to HDMI Converter with Audio De-Embedding & SDI Loop-Through Out in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey 97-21213 Specs | Video Inputs | 1 x 3G/HD/SD-SDI, BNC (embedded audio, up to 4 stereo pairs) | | Video Output | 1 x HDMI 1.4, type A (embedded audio)
2 x 3G/HD/SD-SDI, BNC (embedded audio, reclocked) | | Audio Outputs | 1 x Unbalanced stereo (RCA)
1 x S/PDIF (RCA) | | Cable Equalization | 3G: 328' / 100 m
HD: 656' / 200 m
SD: 1312' / 400 m | | Supported Resolutions | 3G-SDI:
1080p: 60/59.94/50
HD-SDI:
1080p: 30/29.97/25/24/23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50
SD-SDI:
NTSC 480p/i
PAL 576p/i | | LED Indicators | Power
SDI signal lock | | Power Connector | Locking USB Mini-B | | Power | 5 VDC @ 2 W
May be powered by USB charger, PC, or portable battery pack | | Standards Compliance | SMPTE 259M/292/344M/424M | | Dimensions (L x H x W) | 3.8 x 0.87 x 3.8" / 9.6 x 2.20 x 9.6 cm | | Weight | 2.0 lb / 907.2 g | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 7.1 x 4.8 x 1.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
