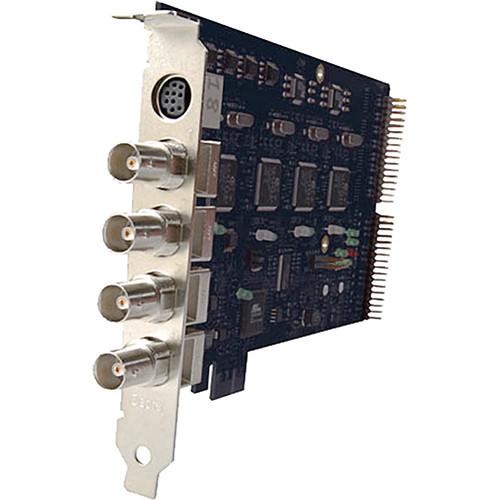

User Manual for Osprey 460e Video Capture Card Click to enlarge the picture
Contents of the user manual for the Osprey 460e Video Capture Card
- Product category: Computer Hardware Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Computer Hardware
|
User manual for the Osprey 460e Video Capture Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|
Product description The Osprey 460e is a 4-channel analog Composite BNC capture card ideal for high density capture on modern PC platforms. The 4 inputs are on-board, and four unbalanced stereo audio inputs are also available via an 8-RCA breakout cable. Furthermore, an optional AV expansion add-on can be incorporated to integrate Component, S-Video, and XLR balanced stereo audio via additional breakout cables.
Two or more cards can be deployed in a single PC chassis for maximum versatility. - Driver Support
-
- Microsoft DirectShow drivers are available for compatibility with most software
- Linux
- Windows SDK lets you create custom applications
- Driver Based Pre-Processing (Windows DirectShow Only)
-
- Closed-caption extraction/rendering
- Logo/bitmap overlay
- Scaling, cropping, de-interlacing and inverse telecine
- Osprey SimulStream Ready
- SimulStream is an optional Osprey feature which allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption, and overlays, facilitating simultaneous delivery to multiple applications.
- AV Expansion Option
- The Osprey 460e AV option provides additional video inputs and 4 stereo balanced audio inputs to the rear panel connectors. The optional video inputs include the selection of component or Y/C (S-Video) for each of the 4 channels or 3 additional composite inputs for a total of 16 switchable composite inputs per card.
UPC: 850189006054 In the Box Osprey 460e Video Capture Card 4 x BNC to RCA Adapters Audio Breakout Cable Limited 1-Year Warranty User Manual PDF 1.1mbzctxasyzaqdtxucbsexzrawxwdbtytycv Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey 460e Video Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey Osprey 460e Specs | Format | 1 x PCIe
Slots: x1, x4, x8, or x16
PCIe 2.0 | | Breakout Cable Connector | 15-pin connector (breakout cable included) | | Video Input | On-Board:
4 x Composite on BNC (BNC to RCA adapters included)
*Component and S-Video inputs supported via optional Osprey AV option board | | Video Modes | NTSC/PAL
720 x 480 29.97, 30/i (NTSC)
852 x 480, 29.97, 30/i (NTSC Wide Screen)
720 x 576 25/i (PAL)
Wide Screen Signaling (WSS) | | Audio Input | Via Breakout Cable:
4 x Unbalanced stereo via 8 RCA connectors
*4 unbalanced stereo inputs via 8 XLR connectors supported via optional Osprey AV option board | | Power Consumption | 11 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 167°F (-40 to 75°C) | | Operating Relative Humidity | 5 to 80% (non-condensing) | | Storage Relative Humidity | 95% RH (non-condensing); gradient 30% per hour | | Dimensions | L x H: 6.6 x 4.4" (16.8 x 11.1 cm)
Full height/half length | | Weight | 0.5 lb (227 g) | | | | Package Weight | 0.91 lb | | Box Dimensions (LxWxH) | 8.1 x 7.1 x 2.3" |
