User Manual for Osprey 460e Video Capture Card with SimulStream Software Click to enlarge the picture
Contents of the user manual for the Osprey 460e Video Capture Card with
- Product category: Computer Hardware Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Computer Hardware
|
User manual for the Osprey 460e Video Capture Card with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|

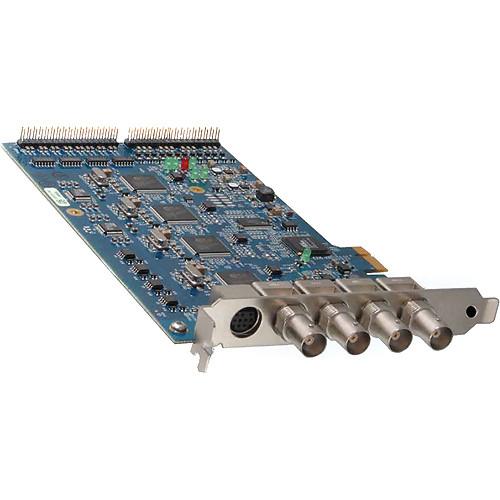

Product description This bundle includes the ViewCast Osprey 460e Capture Card and SimulStream multi-format streaming software paired/pre-enabled together. The Osprey 460e is a PCIe card designed to simultaneously capture four independent channels of analog video and unbalanced stereo audio signals and process them independently, minimizing internal PC space requirements. The SimulStream software lets you individually create, tailor, and optimize video for several applications and audiences all at the same time, live.
The channel density offered by the Osprey 460e dramatically reduces total system cost by increasing the capture capacity within a single system. The Osprey 460e A/V option provides additional video inputs and four stereo balanced audio inputs to the rear panel connectors. The optional video inputs include the selection of component or Y/C (S-Video) for each of the 4 channels or 3 additional composite inputs for a total of 16 switchable composite inputs per card.
The Osprey 460e optimizes high-throughput internal bus architectures and unleashes the power of modern multi-core PC engines with unfettered access to all PC resources. This capability means more power for your most demanding streaming applications. Take advantage of advanced video pre-processing features such as logo/bitmap overlay with transparency and positioning controls, de-interlacing, and closed-caption extraction and rendering. The Osprey 460e automatically detects when the input video format changes from movie frame rates to television frame rates and adapts on-the-fly.
With the Osprey 460e paired with the SimulStream software, you'll be able to stream to multiple devices in various formats, bit rates, and resolutions simultaneously, from a single video source. You can deliver multiple streams from a single channel in Adobe Flash, Microsoft Windows (SilverlightTM), 3GPP or H.264 formats all at the same time.
The SimulStream software enables you to deliver full-frame video to high-speed Internet users or smaller, lower-rate video to DSL and dial-up subscribers, as well as optimized video for several different mobile device standards — all while saving the same content to a storage device for post-processing and other Video on Demand (VOD) applications. - Osprey 460e Video Capture Card
-
- PCIe card with 4x Composite BNC connectors (BNC to RCA adapters included)
- Simultaneously capture four independent channels of audio and video
- Process captured signals independently, minimizing internal PC space requirements
- Increases the capture capacity within a single system, reducing total cost
- Supports optional Component or Y/C (S-Video) inputs
- Optimizes high-throughput internal bus architectures
- Automatically detects when the input format changes from movie to TV frame rates and adapts on-the-fly
- Osprey 460e Pre-Processing
-
- Logo/bitmap overlay
- Closed-caption extraction/rendering
- Scaling, cropping, de-interlacing and inverse telecine
- Loss of video automatic test pattern generation with text overlay option
- SimulStream Software
-
- Enables simultaneous multi-format, multi-bit rate, multi-resolution streaming
- Optimized live streams for a multiscreen delivery audience
- Independent pre-processing of video for each stream
- Complete utilization of latest multi-core processors
- Maximum solution density for streaming production
UPC: 850189006115 In the Box Osprey 460e Video Capture Card with SimulStream Software 4 x BNC to RCA Adapters Audio Breakout Cable Driver and Documentation CD Limited 1-Year Hardware Warranty User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey 460e Video Capture Card with SimulStream Software in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey Osprey 460e Specs | | | Driver Support | Microsoft DirectShow API
Linux driver available from the open source community | | Inputs | Video:
4x Composite BNC (BNC to RCA adapters included)
Audio:
4 pair unbalanced stereo supported via included BNC to RCA breakout cable | | Video Format | NTSC/PAL | | Connectivity | PCIe (x 1)
Slots: x 1, x 4, x 8, or x 16
PCIe 2.0 | | Dimensions | 6.6 x 4.4" (16.8 x 11.2 cm), full-height / half-length board | | System Requirements | Multi-core processors recommended to run video applications | | | | System Requirements | Compatible Osprey video capture card, such as the Osprey 440
Osprey driver 4.xx or higher
Microsoft Windows operating system compatible with your driver version | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 9.1 x 5.4 x 2.3" |
