User Manual for Osprey 800a Audio Expansion Card for 800e Series Cards Click to enlarge the picture
Contents of the user manual for the Osprey 800a Audio Expansion Card for
- Product category: Computer Video Accessories Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Computer Video Accessories
|
User manual for the Osprey 800a Audio Expansion Card for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|

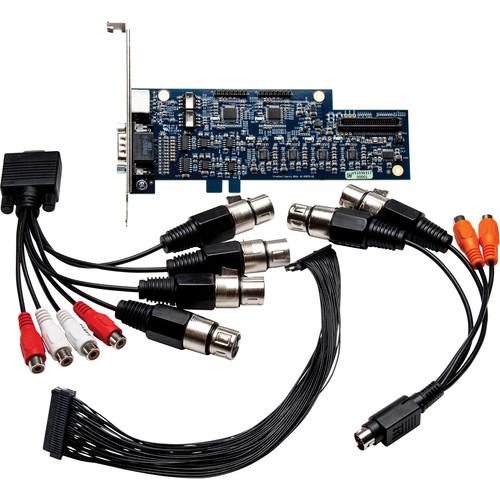

Product description The Osprey 800a Audio Expansion Card from ViewCast is an audio input card that provides increased flexibility with up to four stereo channels of audio. This card is designed to work with most of the Osprey 800 series cards. Attach it to an Osprey 815e, 820e, 825e, or 845e card for improved audio performance. This audio input card also offers additional external audio inputs such as balanced, unbalanced, AES/EBU, and SPDIF. - AES digital audio inputs on two XLR stereo pairs
- SPDIF digital audio inputs on two RCA stereo pairs
- Balanced analog audio inputs on four XLR, two stereo pairs
- Unbalanced analog audio inputs on four RCA, two stereo pairs
- Connects directly to the 820e, 815e, 825e, and 845e requiring no PCIe connection of its own
- Support already included in the drivers for the 800e series capture card, so no additional drivers are needed
In the Box Osprey 800a Audio Expansion Card for 800e Series Cards 9-pin DIN to RCA-XLR Breakout Cable HD15 RCA-XLR Breakout Cable Board to Board Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey 800a Audio Expansion Card for 800e Series Cards in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey 800A Specs | Format | PCI Express x1 | | Driver Support | Automatically recognized by 800e capture card drivers, no additional drivers needed | | Connectors | 9-pin DIN, audio breakout cable input
15-pin Sub-D, audio breakout cable input
PCB multi-pin, board to board interconnect | | Operating Temperature Range | 32 to 104°F (0 to 40°C) | | Non-Operating Temperature Range | -40 to 167°F (-40 to 75°C) | | Humidity | Relative Humidity Operating: Between 5% and 80% (non-condensing)
Relative Humidity Non-Operating: 95% RH (non-condensing); gradient 30% per hour | | Operating Altitude | 10,000' (3,048 m) | | Non-Operating Altitude | 50,000' (15,240 m) | | Dimensions (L x H) | 6.60 x 2.71" (16.76 x 6.88 cm) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 12.2 x 10.4 x 4.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
