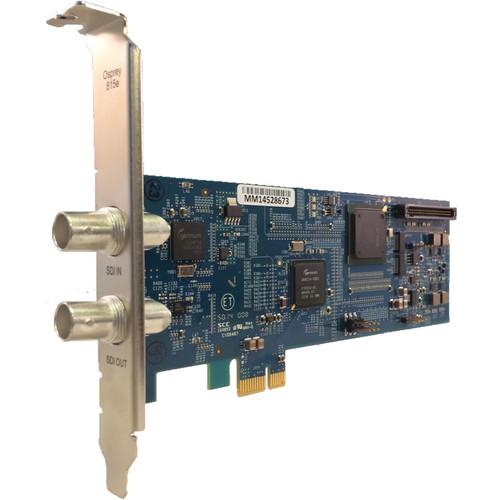

Product description The Osprey 815e with SimulStream, from ViewCast, is a single-lane PCIe 1.1 video capture card that features a single HD/SD-SDI input and loop-output. It accepts resolutions up to 1920x1080 with frame rates up to 60i/30p, and supports up to 8-channels (4 stereo pairs) of embedded SDI audio. This card also features Osprey's SimulStream technology, which allows you to produce multiple parallel live-stream output streams from the SDI input. Each output stream can be sent to a different destination, with independent settings for color space, cropping, scaling, closed caption, and overlays. Drivers for Windows and Linux systems are available. - Signal Loss
- In the event of signal loss, the card automatically replaces the lost video with color bars with options for text overlay and audio tones. This feature helps prevent unplanned stoppage of downstream applications upon signal loss.
- Video Pre-Processing
-
- VBI/VANC closed-caption extraction/on-screen rendering
- Logo/bitmap overlay
- Scaling, cropping, de-interlacing and inverse telecine
- ProcAmp control
- Vector Scope and Lumi Scope
- Driver Support
-
- Microsoft DirectShow API
- Linux
- Osprey SDK
- An Osprey SDK is available to allow developers to take full advantage of the Osprey 800e series driver capabilities.
- Optional Audio Input Expansion Board Available
- The optional Osprey 800a audio input card is a separate expansion board that adds two pairs of balanced audio via XLR connectors along with two additional pairs that can be configured as either unbalanced (RCA), AES/EBU (XLR) or SPDIF (RCA).
UPC: 850189006160 In the Box Osprey 815e HD/SD-SDI and DVB-ASI Video Capture Card with SimulStream Low-Profile Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey 815e HD SD-SDI and DVB-ASI Video Capture Card with SimulStream in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey 815e Specs | Format | PCI Express 1.1 (Single Lane)
Slots: x 1, x 4, x 8, x 16 | | Video Input | 1 x HD/SD-SDI (BNC) | | Supported Formats | SMPTE 292M
SMPTE 259M
DVB-ASI MPTS/SPTS (Windows only) | | Resolutions & Frame Rates | 1080p 23.98, 24, 25, 29.97, 30
1080i 50, 59.94, 60
720p 23.98, 24, 25, 29.97, 50, 59.94, 60
720 x 480 29.97i, 30i (NTSC)
720 x 576 25i (PAL)
720 x 576 25p, 50p | | Audio Support | 8-channels embedded in SDI | | Drivers | Microsoft Windows
Linux | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 167°F (-40 to 75°C) | | Relative Humidity | Operating: 5 to 80% (non-condensing)
Storage: 95% (non-condensing); gradient 30% per hour | | Maximum Altitude | Operating: 10,000' (3,048 m)
Storage: 50,000' (15,240 m) | | Dimensions | 6.6 x 2.71" (16.76 x 6.88 cm) | | Weight | Approx. 2.5 oz (70 g) | | | | Package Weight | 0.515 lb | | Box Dimensions (LxWxH) | 8.15 x 7.05 x 2.2" |
