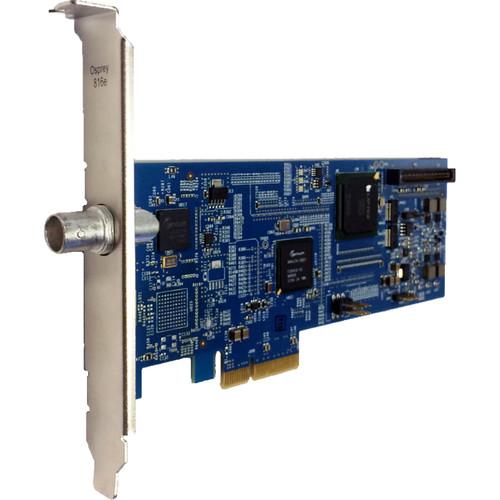

Product description The Osprey 816e with SimulStream is a PCIe 1.1 video capture card that features a single 3G SDI input. It accepts resolutions up to 1920 x 1080 with frame rates up to 60i/30p and supports up to 8-channels (4 stereo pairs) of embedded SDI audio. Featuring Osprey's SimulStream technology, the SDI input can produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption, and overlays, which facilitates simultaneous delivery to multiple applications. Drivers for Windows and Linux systems are available. - Signal Loss
- In the event of signal loss, the card automatically replaces the lost video with color bars with options for text overlay and audio tones. This feature helps prevent unplanned stoppage of downstream applications upon signal loss.
- Osprey SDK
- An Osprey SDK is available to allow developers to take full advantage of the Osprey 800e series driver capabilities.
- Optional Audio Input Expansion Board Available
- The optional Osprey 800a audio input card is a separate expansion board that adds two pairs of balanced audio via XLR connectors along with two additional pairs that can be configured as either unbalanced (RCA), AES/EBU (XLR) or SPDIF (RCA).
- Video Pre-Processing
-
- VBI/VANC closed-caption extraction/on-screen rendering
- Logo/bitmap overlay
- Scaling, cropping, de-interlacing and inverse telecine
- ProcAmp control
- Vector Scope and Lumi Scope
UPC: 850189006467 In the Box Osprey 816e 3G SDI and DVB-ASI Video Capture Card with SimulStream Low-Profile Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey 816e 3G SDI and DVB-ASI Video Capture Card with SimulStream in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey 816e Specs | Format | PCI Express 1.1
Slots: x 4, x 8, x 16 | | Video Input | 1 x SD-SDI (BNC) | | Supported Formats | 3G SMPTE 424M
HD SMPTE 292M
SD SMPTE 259M
DVB-ASI | | Resolutions & Frame Rates | 1080p 23.98, 24, 25, 29.97, 30
1080i 50, 59.94, 60
720p 23.98, 24, 25, 29.97, 50, 59.94, 60
720 x 480 29.97i, 30i (NTSC)
720 x 576 25i (PAL)
720 x 576 25p, 50p
3G SDI:
1080p 50, 59.94, 60 | | Audio Support | 8-channels embedded in SDI | | Drivers | Microsoft Windows
Linux | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 167°F (-40 to 75°C) | | Relative Humidity | Operating: 5 to 80% (non-condensing)
Storage: 95% (non-condensing); gradient 30% per hour | | Power Consumption | 6.3 W | | Dimensions | 6.60 x 2.71" (16.76 x 6.88 cm) | | Weight | Approximately 2.5 oz (70.9 g) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 10.4 x 7.2 x 2.7" |
