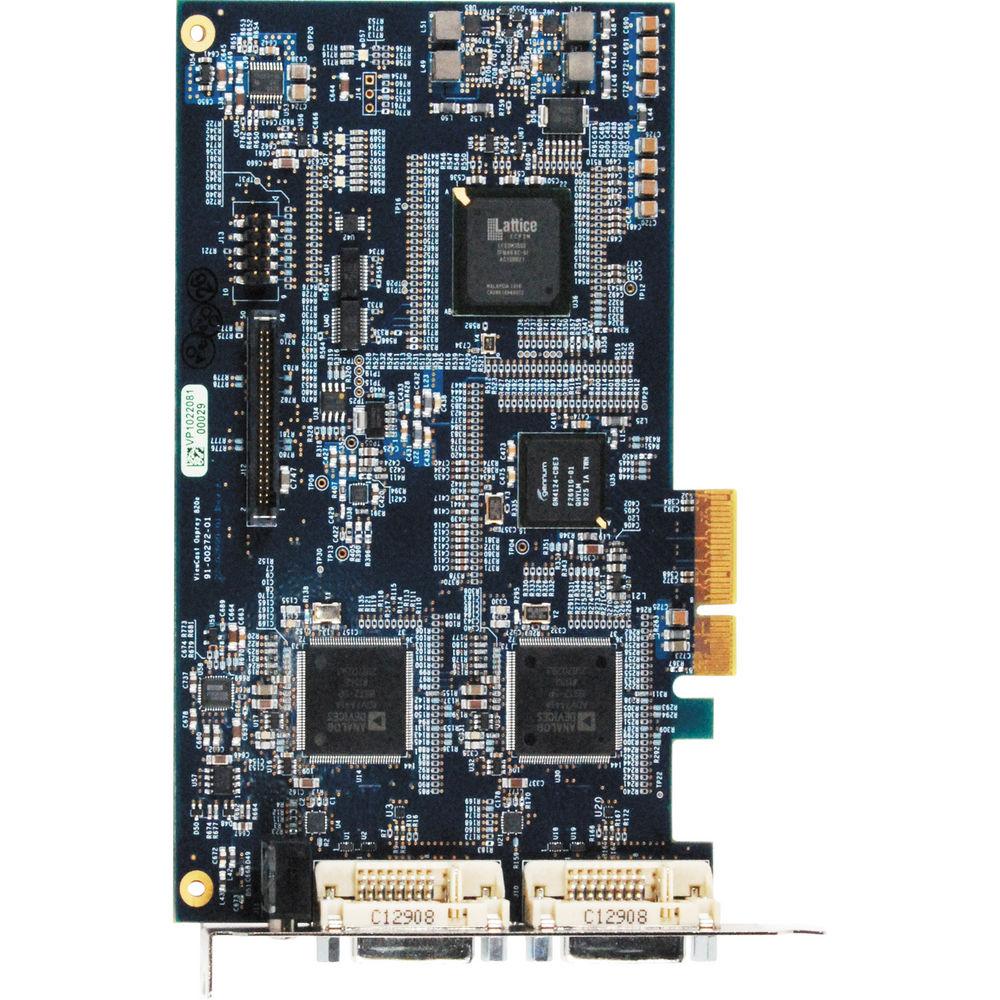

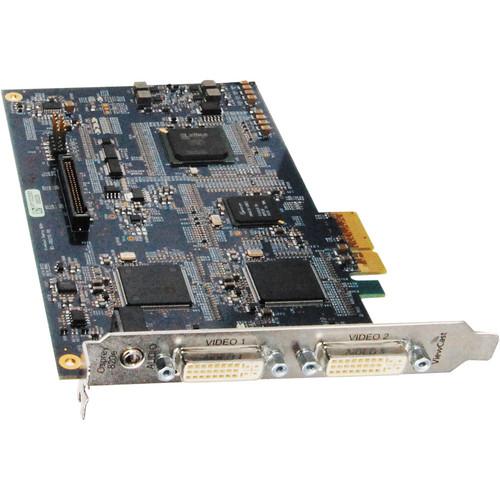

Product description The 820e Dual-Input Video Capture Card from Osprey accepts video from HDMI, DVI, and analog/digital VGA sources. The 820e Capture Card's SimulStream feature enables each input to produce multiple, parallel outputs. This video card is designed for lecture capture and other setups that may have mixed video sources. Each output can have individual settings for optimal delivery to different applications. This dual-input video capture card can ingest HMDI, DVI, VGA, composite, component, and S-Video signals. Audio options provided consist of four stereo pairs of HDMI audio input, and one unbalanced audio input. The 820e card is compatible with Microsoft DirectShow API and Linux drivers, and an Osprey SDK (software development kit) is available separately. Video pre-processing features include VBI/VANC closed-caption extraction/on-screen rendering, logo/bitmap overlay, scaling, cropping, de-interlacing, inverse telecine, ProcAmp control, and Vector and Lumi–scope functions, color-space conversion and closed-caption extraction and rendering. In case of a lost signal, the 820e Video Capture Card replaces lost video with color bars, preventing unintended interruptions of downstream applications. This video card is compatible with the Osprey 800a audio input expansion card (available separately) featuring two pairs of XLR inputs and two configurable inputs. Key Features - HDMI/DVI/VGA input; accepts analog SD and HD video inputs
- Pre-processing features include logo/bitmap overlay, scaling, cropping, and de-interlacing
- SimulStream function enables independent settings for multiple output streams
- Drivers available for Microsoft Windows and Linux operating systems
- Compatible with the Osprey 800a audio input expansion card (available separately)

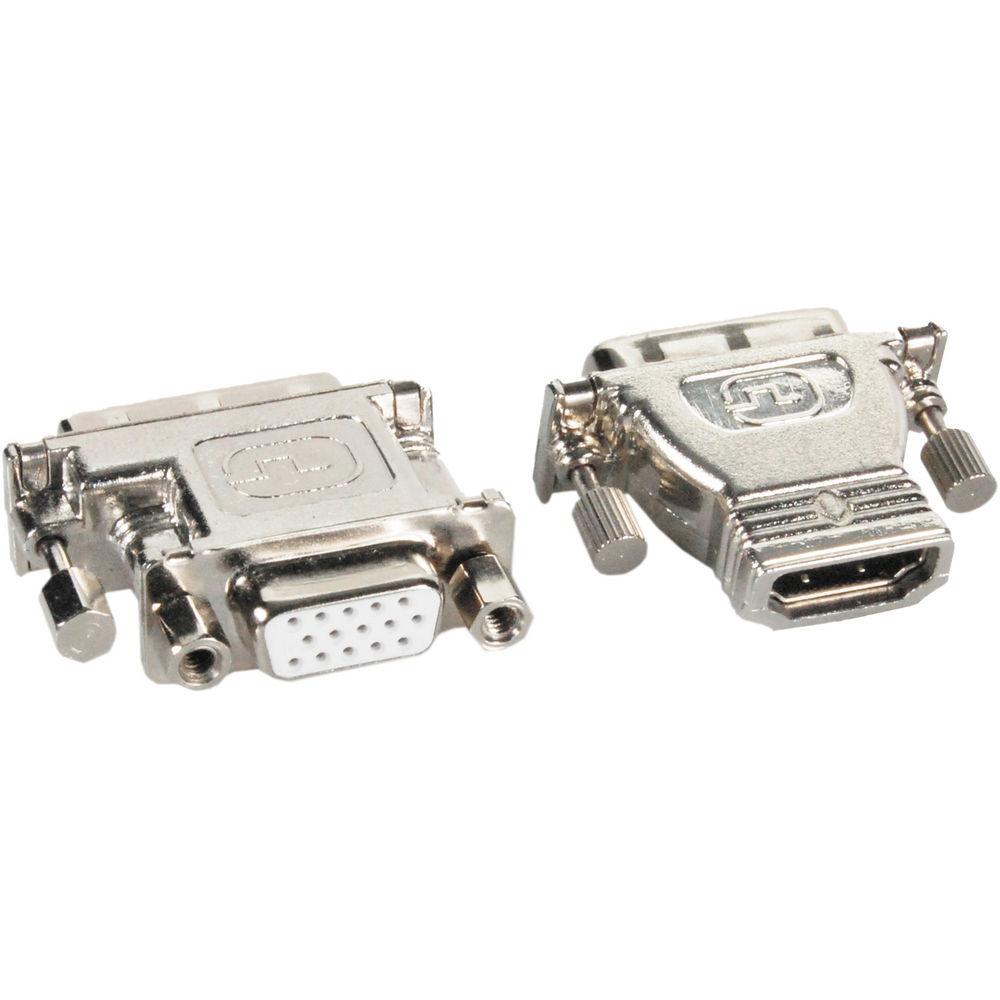

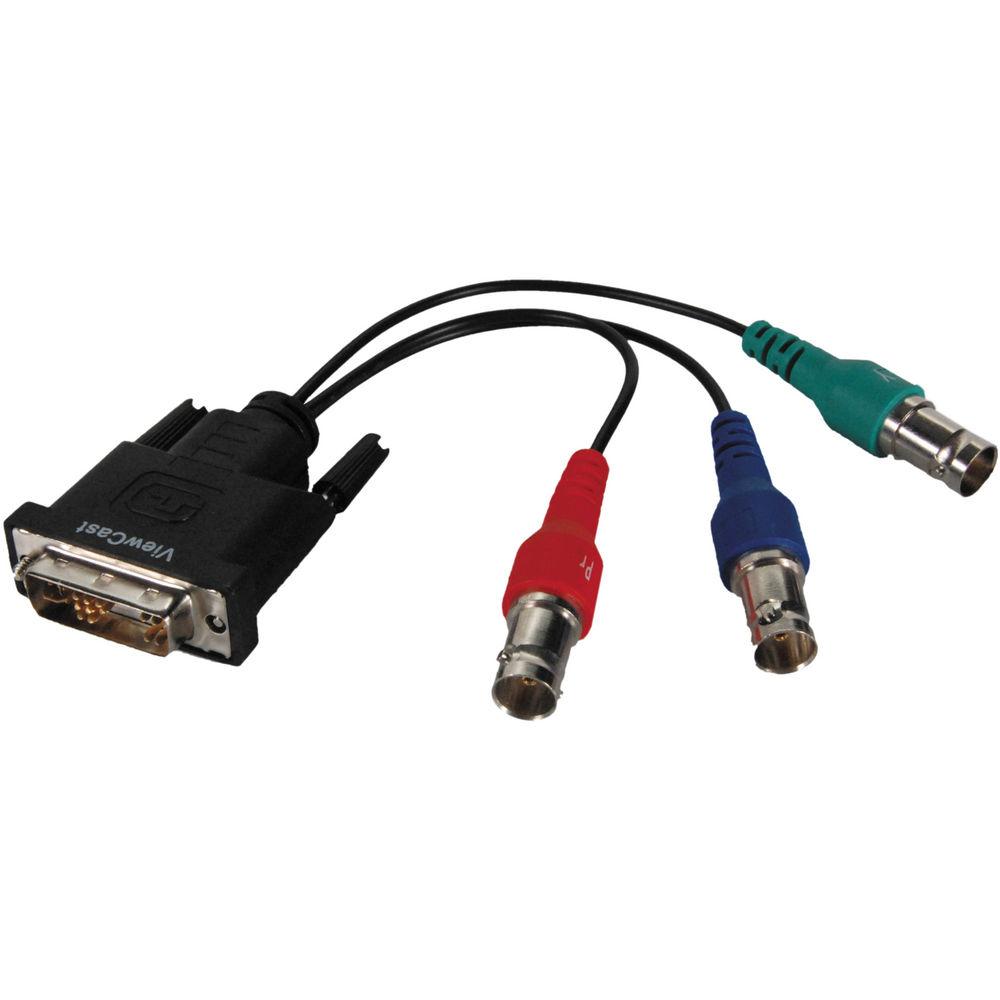

UPC: 850189006191 In the Box Osprey 820e Dual-Input Video Capture Card 2 x DVI to VGA Adapters 2 x DVI to HDMI Adapters 2 x DVI to Component (BNC) Adapters Y/C to S-Video Adapter (BNC) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey 820e Dual-Input Video Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey Osprey 820e Specs | Driver Support | Microsoft DirectShow API
Linux | | Video Inputs | Video:
HDMI (non HDCP)
DVI
VGA
Composite, component
YCA | | Video Connectors | 2 x DVI-I | | Video Modes | 1080i: 60/59.94/50
1080p: 30/29.97/25/24/23.98
720p: 60/59.94/50/29.97/25/24/23.98
720 x 480: 29.97, 30/i (NTSC)
720 x 576 25/i (PAL)
720 x 576 25, 50/p | | Analog | Modes:
1920 x 1080 x/60/59.94/50/29.97/25/24/23.98
1600 x 1200/60
1400 x 1050/75/60
1360 x 768/60
1280 x 1024/85/60
1280 x 960/85/60
1280 x 800/60
1280 x 768/85/75 1280 x 720/60/50
1024 x 768/85/60
800 x 600/85
640 x 480/85/60 | | Audio Inputs | 8 x HDMI (4 LPCM per input)
1 x unbalanced | | Format | PCI Express: x 4
Slots: x 4, x 8, or x 16 | | Power Consumption | 11.5 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Non-Operating Temperature | -40 to 167°F (-40 to 75°C) | | Operating Relative Humidity | 5-80% (non-condensing) | | Non-Operating Humidity | 95% RH (non-condensing)
Gradient: 30% per hour | | Dimensions (L x H) | 6.6 x 4.38" (16.76 x 11.13 cm) | | Operating Altitude | 0-10,000' (0-3048 m) | | Non-Operating Altitude | 0-50,000' (0-15,240 m) | | Weight | 4 oz (113 g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 9.1 x 5.4 x 2.3" |
