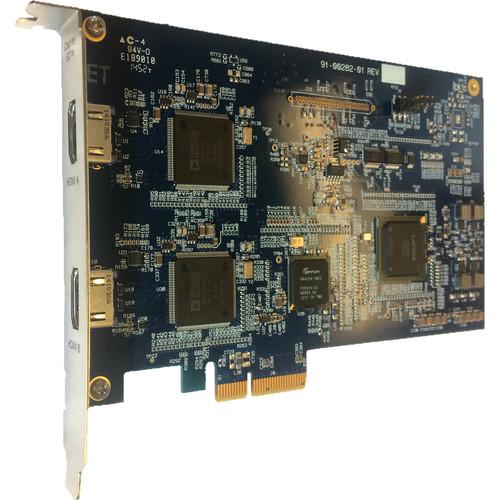

User Manual for Osprey 821e HDMI Video Capture Card with SimulStream Click to enlarge the picture
Contents of the user manual for the Osprey 821e HDMI Video Capture Card
- Product category: Computer Hardware Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Computer Hardware
|
User manual for the Osprey 821e HDMI Video Capture Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|
Product description The Osprey 821e with SimulStream is a 4-lane PCIe video capture card with two HDMI inputs that each accept up to 1080p60 non-HDCP protected video. It also supports up to 8-channels (4 stereo channels) of embedded LPCM audio. This card also features Osprey's SimulStream technology, which allows you to produce multiple parallel live-stream output streams from each HDMI input. Each output stream can be sent to a different destination, with independent settings for color space, cropping, scaling, closed caption, and overlays. Drivers for Windows and Linux systems are available. - Signal Loss Insertion
- In the event of signal loss, the card automatically replaces the lost video with color bars with options for text overlay and audio tones. This feature helps prevent unplanned stoppage of downstream applications upon signal loss.
- Video Pre-Processing
-
- VBI/VANC closed-caption extraction/on-screen rendering
- Logo/bitmap overlay
- Scaling, cropping, de-interlacing and inverse telecine
- ProcAmp control
- Vector Scope and Lumi Scope
- Driver Support
-
- Microsoft DirectShow API
- Linux
- Osprey SDK
- An optional Osprey SDK is available to allow developers to take full advantage of the Osprey 800e series driver capabilities.
UPC: 850189006214 In the Box Osprey 821e HDMI Video Capture Card with SimulStream (Dual HDMI Input) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey 821e HDMI Video Capture Card with SimulStream in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey 821e Specs | Format | 4-lane PCI Express
Slots: x 4, x 8, x 16 | | Video Input | 2 x HDMI, Type A (non HDCP) | | Resolutions & Frame Rates | 1080p 23.98, 24, 25, 29.97, 30, 50, 60
1080i 50, 59.94, 60
720p 23.98, 24, 25, 29.97, 50, 59.94, 60
720 x 480 29.97p, 30p
720 x 576 25p, 50p | | Audio Support | 8-channels of embedded LCPM | | Drivers | Microsoft Windows
Linux | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 167°F (-40 to 75°C) | | Relative Humidity | Operating: 5 to 80% (non-condensing)
Storage: 95% (non-condensing); gradient 30% per hour | | Maximum Altitude | Operating: 10,000' (3,048 m)
Storage: 50,000' (15,240 m) | | Dimensions | 6.6 x 4.38" (16.76 x 11.13 cm) | | Weight | Approx. 4 oz (113 g) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 10.3 x 7.1 x 2.6" |
