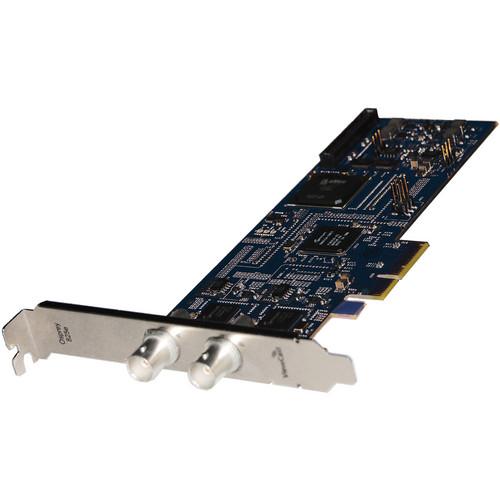

User Manual for Osprey 825e SDI Video Capture Card Click to enlarge the picture
Contents of the user manual for the Osprey 825e SDI Video Capture Card
- Product category: Computer Hardware Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Computer Hardware
|
User manual for the Osprey 825e SDI Video Capture Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|
Product description The Osprey 825e 2-Channel SDI Video Capture Card is a video and embedded audio capture card for Windows and Linux. It can capture two SDI channels simultaneously and supports SD-SDI, HD-SDI, and 3G-SDI with resolutions up to 1080p60. In addition it supports four stereo pairs (eight channels) of embedded audio per video input.
The Osprey 825e is a versatile card that can be used for a wide range of applications, most notably live streaming and recording. For Windows, the card features drivers that expose it to the Microsoft DirectShow API, Windows' media device interface framework. This means that card is compatible with most Windows-based software that is capable of capturing or streaming video.
For Linux users, there are a wide range of Open Source software options available via the Linux distribution's package manager or as source code from GitHub and other repositories. In addition, users looking for custom solutions can develop their own software using the software developer kit (SDK), which can be tailored for unique applications.
Finally, the Osprey 825e features SimulStream. This driver enhancement provides the ability to feed multiple encoding applications at the same time. The most notable benefit of this feature is the ability to encode the same video source at different frame rates and resolutions to support a wider range of devices and Internet connection speeds, something encoding applications often lack the ability to do on their own. - Compatible with Microsoft DirectShow API and many Open Source Linux drivers
- Close captioning extraction and rendering - supports CEA-608 and CEA-708 standards
- Scaling, cropping, de-interlacing, and inverse telecine
- Logo insertion and bitmap graphic overlay
- Loss of video automatic test pattern generation with text overlay option
UPC: 850189006177 In the Box Osprey 825e SDI Video Capture Card Driver and Documentation CD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey 825e SDI Video Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey 825e Specs | Video Input | 2 x 3G-SDI inputs on BNC connectors: | | Audio Input | 4 x SDI-embedded stereo pairs per video source | | Supported Resolutions | 1920 x 1080: 60i, 59.94i, 50i, 30p, 29.97p, 25p, 24p, 23.98p
1280 x 720: 60p, 59.94p, 50p, 30p, 25p, 24p, 23.98p
720 x 480 (NTSC): 30i, 29.79i
720 x 576 (PAL): 50p, 25p, 25i
3G-SDI (1920 x 1080): 60p, 50p, 59.94p | | Supported Standards | 3G SMPTE 424 M, HD SMPTE 292 M, SD SMPTE 259 M | | Host Interface | PCIe 1.1 x4 | | System Requirements | Windows Driver (required for DirectShow API support)
Windows XP
Windows 7
Linux Driver
Various Open Source distributions: available from package manager and source code repositories
Hardware
Varies depending on capture / streaming application being used:
Quad processor or better
Free x4, x8 or x16 PCIe slot | | Dimensions | Low-profile form factor
6.6 x 2.7" (16.8 x 6.8 cm) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 9.0 x 5.4 x 1.6" |
