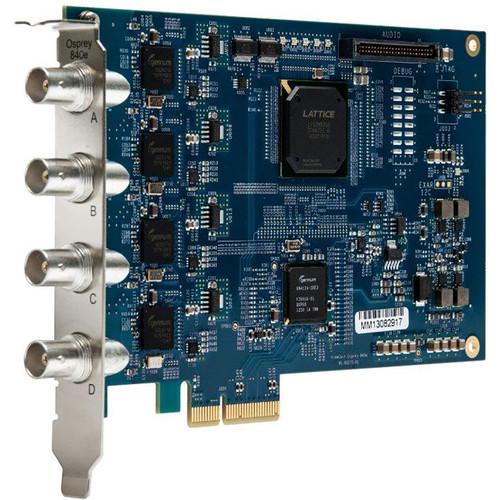

Product description The 840e Video Capture Card from Osprey features four independent, configurable input channels and is suitable for high-density applications. All inputs are clock independent, which allows for different input formats on each input. The card also features four stereo pairs of embedded SDI audio per input. The 840e can be used for VBI/VANC closed-caption extraction/on-screen rendering, logo/bitmap overlay, scaling, cropping, de-interlacing and inverse telecine, ProcAmp control, Vector Scope, and Luma Scope. - Supports HD SDI (292M), SD SDI (259M), and DVB-ASI MPTS/SPTS (Windows only)
- SimulStream allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption, and overlays facilitating simultaneous delivery to multiple applications.
- In the event of signal loss, the Osprey card automatically replaces the lost video with color bars with options for text overlay and audio tones. This feature helps prevent unplanned stoppage of downstream applications upon signal loss.
- An Osprey SDK is also available to allow developers to take full advantage of the Osprey 800e driver capabilities.
- The 840e can be used with the Osprey 800a (available separately). The Osprey 800a audio input card is a separate expansion board that adds two pairs of balanced audio via XLR connectors, along with two additional pairs that can be configured as either unbalanced (RCA), AES/EBU or SPDIF (RCA).
UPC: 850189006498 In the Box Osprey 840e Video Capture Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey 840e Video Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey 840e Specs | Format | PCI Express: x4
Slots: x4, x8, or x16
PCIe 1.1 | | Video Input | 4 x HD SMPTE 292M
4 x SD SMPTE 259M
DVB-ASI X4 | | Video Connector | 4 x SDI (BNC) | | Video Modes | 1080i 50, 59.94, 60
1080p 23.98, 24, 25, 29.97, 30
720p 23.98, 24, 25, 29.97, 50, 59.94, 60
720 x 480 29.97, 30/i (NTSC)
720 x 576 25/i (PAL)
720 x 576 25, 50/p | | Audio Input | Embedded SDI (4 stereo pairs per SDI input) | | Drivers | Available for Microsoft Windows and Linux | | System Recommendations (Minimum) | PCIe bus with direct access to the CPU | | Power Consumption | 9.36 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Non-Operating Temperature | 104 to 167°F (40 to 75°C) | | Relative Humidity | Operating: Between 5 and 80% (non-condensing)
Non-Operating: 95% RH (non-condensing); gradient 30% per hour | | Altitude | Operating: 0 to 10,000' (0 to 3048 m)
Non-Operating: 0 to 50,000' (0 to 15,240 m) | | Dimensions | 6.60 x 4.38" (16.76 x 11.13 cm) | | Weight | Approximately 4 oz (122 g) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 8.1 x 7.0 x 2.2" |
