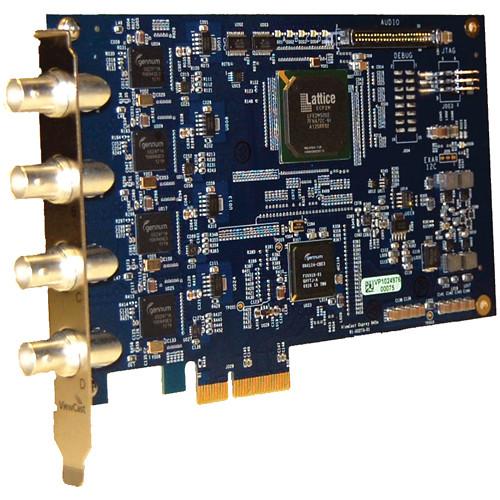

User Manual for Osprey 845e 4-Channel SDI Video Capture Card Click to enlarge the picture
Contents of the user manual for the Osprey 845e 4-Channel SDI Video Capture
- Product category: Computer Hardware Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Computer Hardware
|
User manual for the Osprey 845e 4-Channel SDI Video Capture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|
Product description The ViewCast Osprey 845e 4-Channel SDI Capture Card is a video and embedded audio capture card for Windows and Linux. It features four SDI inputs that can simultaneously capture up to four channels of 1.5 Gbps HD-SDI video, or two channels of 3G-SDI video. In addition it can capture four stereo pairs (eight channels) of SDI-embedded audio per video source.
The Osprey 845e is a versatile card that can be used for a wide range of applications, such as recording multiple streams of video to a computer or live streaming multi-camera productions. For Windows users, the card features drivers that expose it to the Microsoft DirectShow API, Windows' media device interface framework. This means that card is compatible with most Windows-based software that is capable of capturing or streaming video.
For Linux users, there are a wide range of Open Source software options available via the Linux distribution's package manager or as source code from GitHub and other repositories. In addition, users looking for custom solutions can develop their own software using the software developer kit (SDK), which can tailored for unique applications.
The Osprey 845e also features SimulStream. This driver enhancement provides the ability to feed multiple encoding applications at the same time. The most notable benefit of this feature is the ability to encode the same video source at different frame rates and resolutions to support a wider range of devices and Internet connection speeds, something encoding applications often lack the ability to do on their own.
Because of the high data-rates involved in multi-channel video capture, it is important to consider the computer that will be used. While the exact system requirements will vary depending on the specific capture or streaming software that will be used, a quad-processor or better workstation computer with a direct- or North Bridge-connected x8 PCIe slot will likely be required. - Compatible with Microsoft DirectShow API and many Open Source Linux drivers
- Close captioning extraction and rendering - supports CEA-608 and CEA-708 standards
- Scaling, cropping, de-interlacing, and inverse telecine
- Logo insertion and bitmap graphic overlay
- Loss of video automatic test pattern generation with text overlay option
UPC: 850189006184 In the Box Osprey 845e 4-Channel SDI Video Capture Card Driver and Documentation CD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey 845e 4-Channel SDI Video Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey 845e Specs | Video Input | 4x SDI inputs on BNC connectors:
Up to 4 simultaneous SD-SDI or 1.5 Gbps HD-SDI channels
Up to 2 simultaneous 3G-SDI channels | | Audio Input | 4x SDI-embedded stereo pairs per video source | | Supported Resolutions | 1920 x 1080: 60i, 59.94i, 50i, 30p, 29.97p, 25p, 24p, 23.98p
1280 x 720: 60p, 59.94p, 50p, 30p, 25p, 24p, 23.98p
720 x 480 (NTSC): 30i, 29.79i
720 x 576 (PAL): 50p, 25p, 25i | | System Requirements | Windows Driver (required for DirectShow API support)
Windows XP
Windows 7
Linux Driver
Various Open Source distributions: available from package manager and source code repositories
Hardware
Varies depending on capture / streaming application being used:
Quad-Core processor or better
Free x4, x8 or x16 PCIe slot - direct or North Bridge slot recommended | | Dimensions | Full height board
6.6 x 4.4" (17 x 11 cm) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 9.1 x 5.3 x 2.2" |
