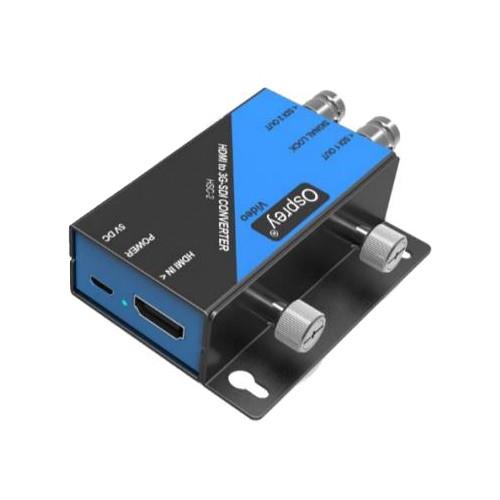

User Manual for Osprey HSC-2 HDMI to SDI Mini Converter Click to enlarge the picture
Contents of the user manual for the Osprey HSC-2 HDMI to SDI Mini
- Product category: Signal Converters Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Signal Converters
|
User manual for the Osprey HSC-2 HDMI to SDI Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|
Product description Incorporate HDMI sources into your broadcast or pro video workflow via the Osprey HSC-2 HDMI to SDI Mini Converter. SD and HD HDMI signals up to 1080p60 will be passed through to the parallel SDI outputs without scaling or other processing, aside from color space conversion to YUV 4:2:2. Minimal processing ensures that the converters remain small and unobtrusive, while allowing more advanced devices to perform image control in the SDI signal domain. a USB power supply is included as well as mounting brackets. UPC: 850189006580 In the Box Osprey HSC-2 HDMI to SDI Mini Converter Power Supply USB Cable Mounting Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey HSC-2 HDMI to SDI Mini Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey HSC-2 Specs | Inputs | 1 x HDMI Type A | | Outputs | 2 x BNC SD/HD/3G-SDI | | SDI Compliance | SMPTE 259M, SMPTE 292, SMPTE 424M | | HDMI Color Space | YUV 4:2:2, YUV 4:4:4, RGB 4:4:4 | | SDI Color Space | YUV 4:2:2 | | Resolution Support | 1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1035i 50/59.94/60
720p 50/59.94/60
NTSC
PAL | | Power Input | 1 x Micro-USB
5 VDC, 0.4 A (2 W) | | Dimensions | 3.5 x 0.9 x 1.6" / 90 x 22 x 40 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 4.6 x 3.3 x 3.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
