Product description In addition to HDMI to SDI conversion, the HSCSA-2 HDMI to 3G-SDI Scaling Converter from Osprey Video offers a bevy of video workflow features. Tools include a built-in scaler, plus interlacing and de-interlacing. A frame rate converter adjusts the input signal to your required output standard. Audio options include embedding/de-embedding for AES/EBU and analog audio. The HSCSA-2 Converter's diagnostic data overlay can be activated to monitor your video information.

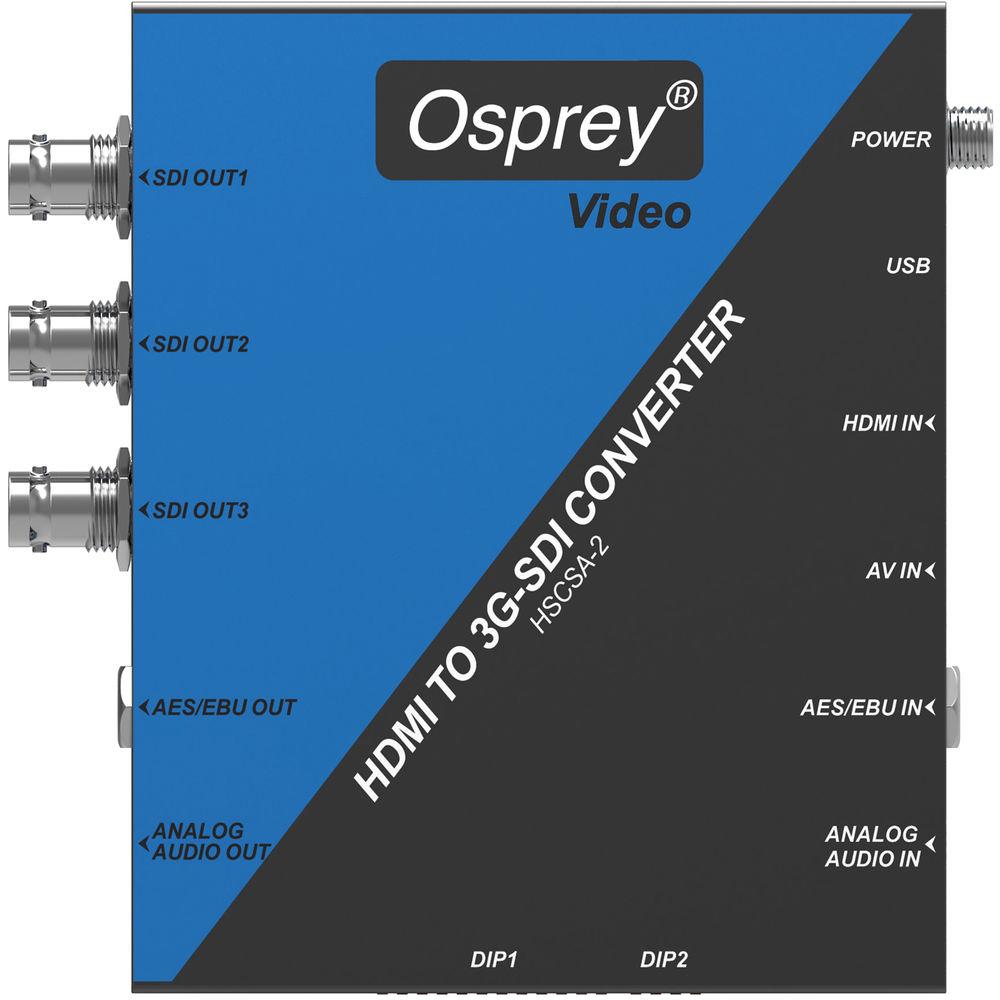

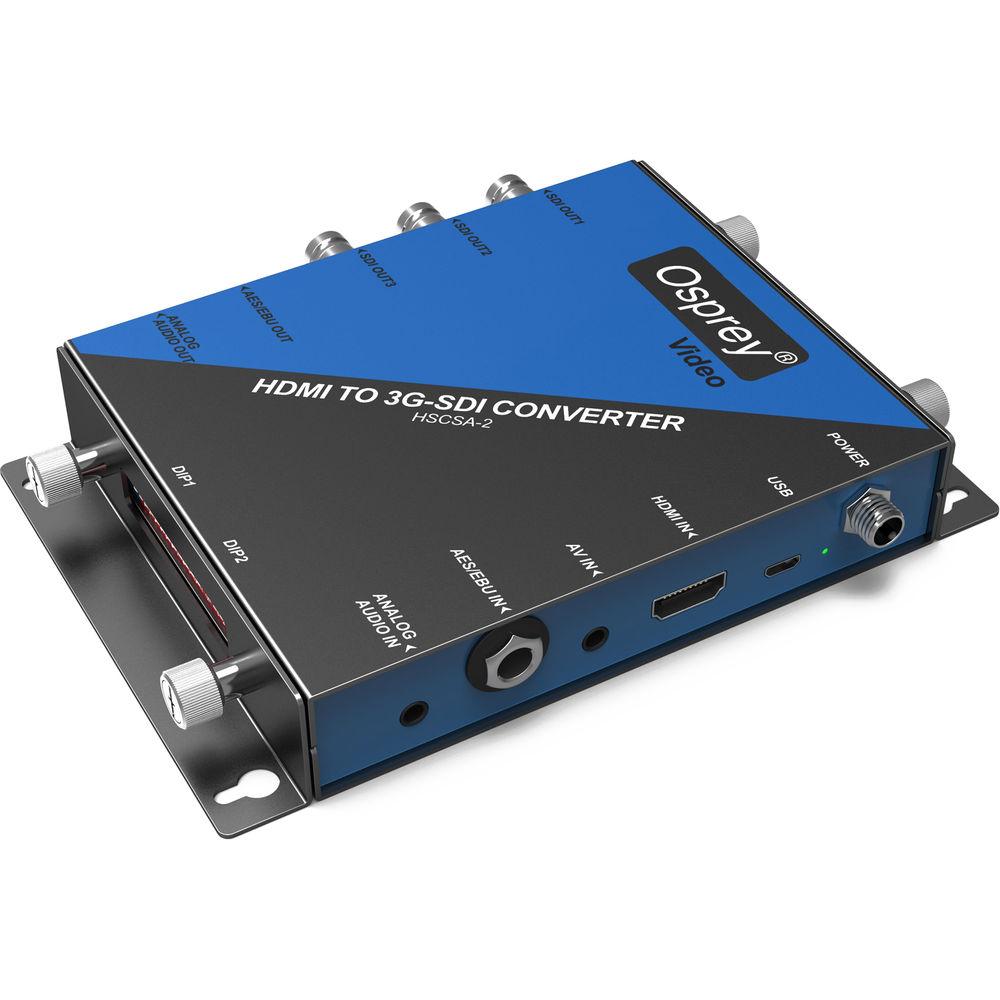

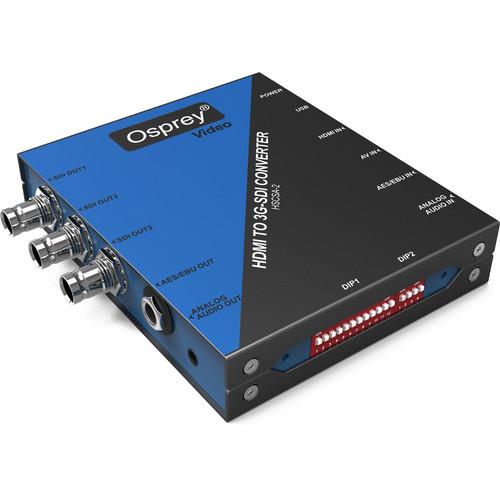

The HSCSA-2 Converter is designed with one HDMI input and one composite video input, and with three 3G-SDI outputs. Settings can be changed using the USB interface or the converter's DIP switches. Four custom settings are user-configurable via software, and diagnostic data can be enabled for video information monitoring. This compact unit comes with a power supply and mounting brackets. Features - HDMI input is scaled and/or frame rate–converted to your required output standard
- HDMI and composite video inputs; three 3G-SDI outputs
- Audio embedding and de-embedding for AES/EBU and analog audio
- Four customizable settings can be selected via the HSCSA-2's USB interface or DIP switches
UPC: 850189006689 In the Box Osprey HSCSA-2 HDMI to 3G-SDI Scaling Converter Universal Power Supply Mounting Brackets USB Cable AV Breakout Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey HSCSA-2 HDMI to 3G-SDI Scaling Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey 97-42111 Specs | HDMI Input | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i, 576p
480i, 480p | | Video Input | HDMI 1.3a
CVBS (composite) | | Input Video Formats AV | NTSC, PAL | | Video Output | 3 x 3G-SDI | | Output Video Formats SDI | 1080p: 60/50/30/25/24
1080i: 60/59.94/50
625i
525i | | Color Space | HDMI: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4
SDI: YUV 4:2:2 | | Audio Input | Embedded HDMI, analog stereo, AES/EBU | | Audio Output | Embedded HDMI, analog stereo, AES/EBU | | Power | Maximum: 12 V, 6 W | | Dimensions | 5 x 2.4 x 0.95" (127 x 61 x 24 mm) | | Weight | 0.7 lb (0.3 kg) | | | | Package Weight | 2.84 lb | | Box Dimensions (LxWxH) | 6.9 x 6.7 x 3.6" |
