Product description

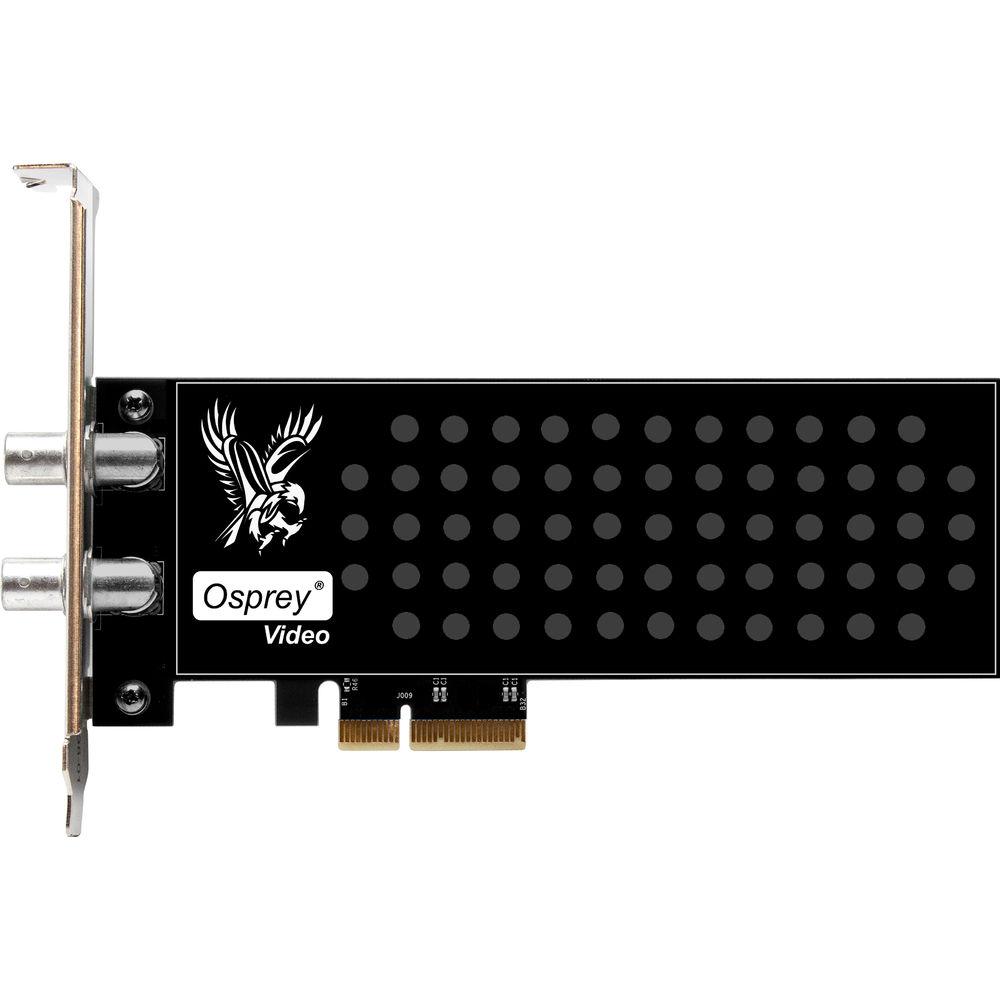

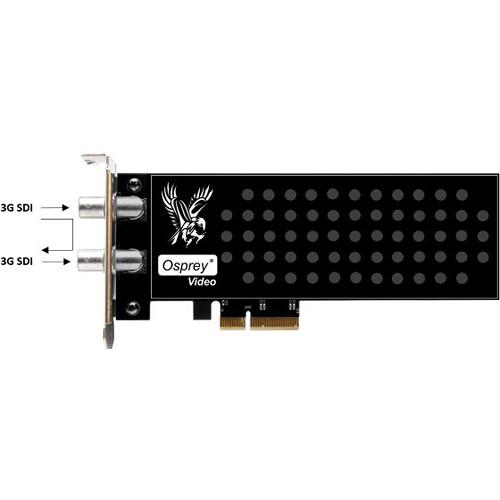

Capture and play back up to two channels of SDI video at up to 60 fps with the Raptor Series 925 PCIe Capture Card from Osprey. This capture card offers two SDI inputs, which are rated at 3 Gb/s, work with SD, HD, and 3G frame sizes, and support 16 embedded audio channels (eight stereo channels) each. The second SDI channel can be configured as loopout from the first input. The card comes mounted on a full-height bracket, in addition to which a half-height bracket is included in the package.
  • Seamless adaption to input signal changes
  • Cropping
  • Custom loss of signal insertion
  • Watermarking
  • MediaLooks SDK support
  • CC overlay
  • VBI extraction
  • CC extraction
  • Automatic signal detection
  • Image control (Procamp)
  • De-interlacing
  • Scaling
  • Frame rate conversion
  • Multiple cards per host computer
  • Text overlay or system time and date
  • Dual mono audio
  • Unified driver for all Raptor cards
  • Fanless design
UPC: 850189006764 In the Box Osprey Raptor Series 925 PCIe Capture Card with 2 x SDI Inputs & Configurable Loopout
  • Half-Height Bracket
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Osprey Raptor Series 925 PCIe Capture Card with 2 x SDI Inputs & Configurable Loopout in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Osprey 95-00498 Specs

    Computer Interface PCI Express Gen2 x4
    Connections 2 x 3 Gb/s SD/HD/3G-A Inputs (BNC)
    2nd Input Configurable as Loopout from 1st Input
    Audio I/O 16 x Embedded Channels (8 Stereo) per SDI Input
    Video Standards 3G/HD:
    1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    1080i 50, 59.94, 60
    720p 50, 59.94, 60

    SD:
    525i 59.94 NTSC
    625i 50 PAL
    SDI Compliance SMPTE 259/292/296/424/425
    3G-SDI Level A Only
    SDI Metadata Support CEA-608, CEA-708 for Closed Captioning
    Audio Sampling Television Standard Sample Rate of 48 kHz at 24-Bit
    SDI Color Precision 8-/10-/12-Bit RGB 4:4:4
    YUV 4:4:4 and 4:2:2
    Multiple Rate Support Auto-Detect SD/HD/3G-A
    Power Consumption 4.85 W Approx.
    Operating Temperature 32 to 104°F / 0 to 40°C
    Weight 4.2 oz / 120 g
