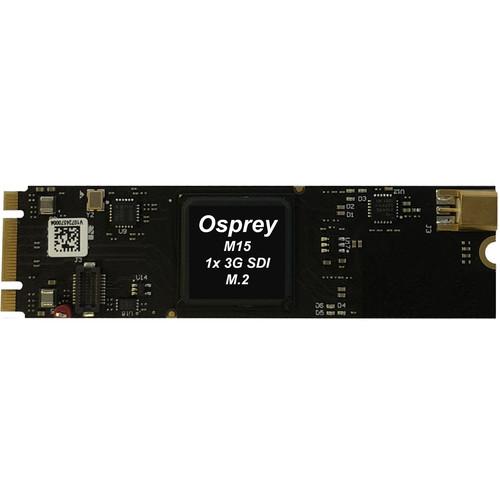

User Manual for Osprey Raptor Series M15 M.2 PCIe Capture Card with 1 x SDI Channel Click to enlarge the picture
Contents of the user manual for the Osprey Raptor Series M15 M.2 PCIe
- Product category: Computer Hardware Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Computer Hardware
|
User manual for the Osprey Raptor Series M15 M.2 PCIe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|
Product description Capture one channel of SDI video at up to 60 fps with the Raptor Series M15 M.2 PCIe Capture Card from Osprey. This capture card offers one SDI connection rated at 3 Gb/s. The card's SDI port works with SD, HD, and 3G frame sizes and supports 16 embedded audio channels (eight stereo channels). - Seamless adaption to input signal changes
- Custom loss of signal insertion
- Automatic signal detection
- Multiple cards per host computer
- Text overlay or system time and date
- Unified driver for all Raptor cards
UPC: 850189006726 In the Box Osprey Raptor Series M15 M.2 PCIe Capture Card with 1 x SDI Channel Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey Raptor Series M15 M.2 PCIe Capture Card with 1 x SDI Channel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey 95-00510 Specs | Computer Interface | M.2 PCIe Gen2 x2 | | Connections | 1 x 3 Gb/s SD/HD/3G-A (MCX) | | Audio I/O | 16 x Embedded Channels (8 Stereo) per SDI Connection | | Video Standards | 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i 50, 59.94, 60
720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
525i 59.94 NTSC, 625i 50 PAL | | SDI Compliance | SMPTE 259/292/296/424/425
3G-SDI Level A Only | | SDI Metadata Support | CEA-608, CEA-708 for Closed Captioning | | Audio Sampling | Television Standard Sample Rate of 48 kHz at 24-Bit | | SDI Color Precision | 8-/10-/12-Bit RGB 4:4:4, YUV 4:4:4 and 4:2:2 | | Multiple Rate Support | Auto-Detect SD/HD/3G-A | | Power Consumption | 2.2 W Approx | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Weight | 0.99 oz / 28 g |
