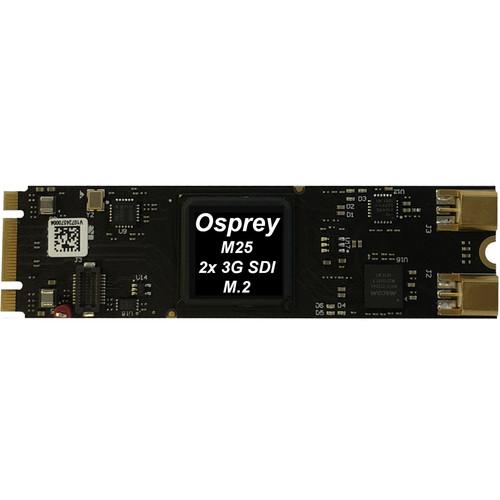

Product description Capture two channels of SDI video at up to 60 fps with the Raptor Series M25 M.2 PCIe Capture Card from Osprey. This capture card offers two SDI connections, one rated at 3G-SDI and the other at up to HD-SDI. The second channel is programmable either as input or as loopout from the first input. The card's SDI ports work with SD, HD, and 3G frame sizes and support 16 embedded audio channels (eight stereo channels) each. - Seamless adaption to input signal changes
- Custom loss of signal insertion
- Automatic signal detection
- Multiple cards per host computer
- Text overlay or system time and date
- Unified driver for all Raptor cards
UPC: 850189006733 In the Box Osprey Raptor Series M25 M.2 PCIe Capture Card with 2 x SDI Channels Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey Raptor Series M25 M.2 PCIe Capture Card with 2 x SDI Channels in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey 95-00511 Specs | Computer Interface | M.2 PCIe Gen2 x2 | | Connections | 1 x 3 Gb/s SD/HD/3G-A (MCX)
1 x 1.5 Gb/s SD/HD (MCX) | | Audio I/O | 16 x Embedded Channels (8 Stereo) per SDI Connection | | Video Standards | 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i 50, 59.94, 60
720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
525i 59.94 NTSC, 625i 50 PAL | | SDI Compliance | SMPTE 259/292/296/424/425
3G-SDI Level A Only | | SDI Metadata Support | CEA-608, CEA-708 for Closed Captioning | | Audio Sampling | Television Standard Sample Rate of 48 kHz at 24-Bit | | SDI Color Precision | 8-/10-/12-Bit RGB 4:4:4, YUV 4:4:4 and 4:2:2 | | Multiple Rate Support | Auto-Detect SD/HD/3G-A | | Power Consumption | 2.4 W Approx | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Weight | 1.06 oz / 30 g |
