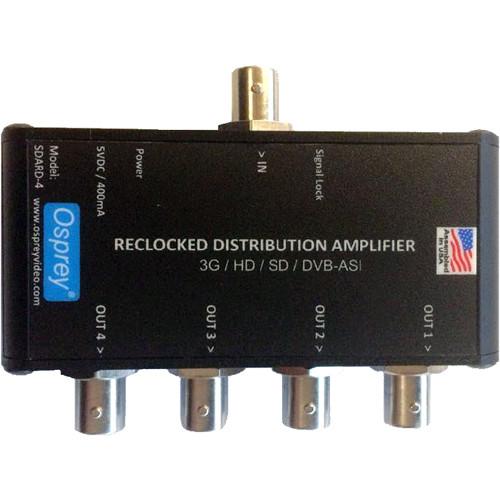

Product description The SDARD-4 1:4 Reclocking Video Distribution Amplifier from Osprey is a reclocking SDI distribution amplifier with automatic input detection. It can accept any single SDI/DVB-ASI link input up to 3G and pass it directly to four BNC outputs while preserving ancillary data and embedded audio. The amplifier has automatic cable equalization designed to reduce attenuation over longer runs. The SDARD-4 is powered by USB via a locking connector. UPC: 850189006443 In the Box Osprey SDARD-4 1:4 Reclocking Video Distribution Amplifier for SDI/DVB-ASI Mounting Brackets Locking USB Cable Limited 1-Year Warrranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey SDARD-4 1:4 Reclocking Video Distribution Amplifier for SDI DVB-ASI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey 97-11024 Specs | Compliance | SMPTE 259M, SMPTE 292, SMPTE 344M, and SMPTE 424M | | Video Input | 1 x BNC, 3G/HD/SD SDI DVB-ASI, with embedded audio | | Video Outputs | 4 x BNC, 3G/HD/SD SDI DVB-ASI, with embedded audio | | Power Connector | Locking mini-USB type B | | Reclocking | Yes | | Cable Equalization | 330' (100 m) at 3G
660' (200 m) at HD
1312.3' (400 m) | | LED Indicators | Power
Signal lock | | Power | 5 VDC @ 2 W May be powered by USB charger, PC or portable battery pack (not included) | | Dimensions | 3.74 x 0.87 x 2.75" (95 x 22 x 70 mm) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 7.1 x 4.8 x 1.2" |
