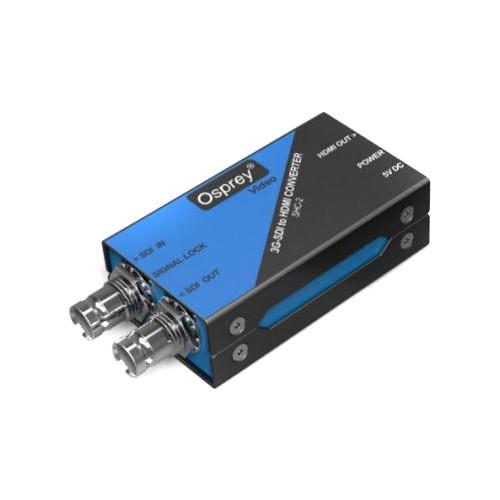

User Manual for Osprey SHC-2 SDI to HDMI Mini Converter Click to enlarge the picture
Contents of the user manual for the Osprey SHC-2 SDI to HDMI Mini
- Product category: Signal Converters Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Signal Converters
|
User manual for the Osprey SHC-2 SDI to HDMI Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|
Product description Plug SD, HD, or 3G-SDI sources into consumer displays or projectors with the Osprey SHC-2 SDI to HDMI Mini Converter. Incoming video signals up to 1080p60 will be passed through to the HDMI and SDI loop outputs without scaling or other processing. Minimal processing ensures that the converters remain small and unobtrusive, while allowing more advanced devices to perform image control in the SDI signal domain. a USB power supply is included as well as mounting brackets. UPC: 850189006597 In the Box Osprey SHC-2 SDI to HDMI Mini Converter Power Supply USB Cable Mounting Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey SHC-2 SDI to HDMI Mini Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey SHC-2 Specs | Inputs | 1 x BNC SD/HD/3G-SDI | | Outputs | 1 x BNC SD/HD/3G-SDI
1 x HDMI Type A | | SDI Compliance | SMPTE 259M, SMPTE 292, SMPTE 424M | | SDI Color Space | YUV 4:2:2 | | HDMI Color Space | YUV 4:2:2 | | Resolution Support | 1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1035i 50/59.94/60
720p 50/59.94/60
NTSC
PAL | | Power Input | 1 x Micro-USB
5 VDC, 0.4 A (2 W) | | Dimensions | 3.5 x 0.9 x 1.6" / 90 x 22 x 40 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 4.6 x 3.3 x 3.0" |
