User Manual for Osprey SHCSA-2 3G-SDI to HDMI Scaling Converter Click to enlarge the picture
Contents of the user manual for the Osprey SHCSA-2 3G-SDI to HDMI Scaling
- Product category: Signal Converters Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Signal Converters
 |
User manual for the Osprey SHCSA-2 3G-SDI to HDMI Scaling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|

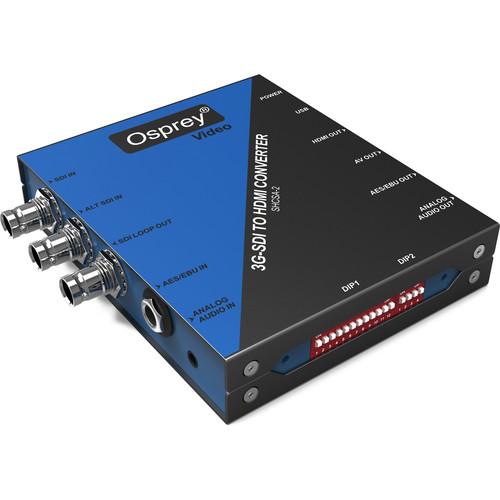

Product description In addition to SDI to HDMI conversion, the SHCSA-2 3G-SDI To HDMI Scaling Converter from Osprey Video provides a selection of video workflow features. Tools include a built-in scaler, plus interlacing and de-interlacing functions. A frame rate converter adjusts the input signal to your required output standard. Additional SDI features include an alternate (failover) 3G-SDI input and a 3G-SDI loopout. Audio options include embedding/de-embedding for AES/EBU and analog audio.

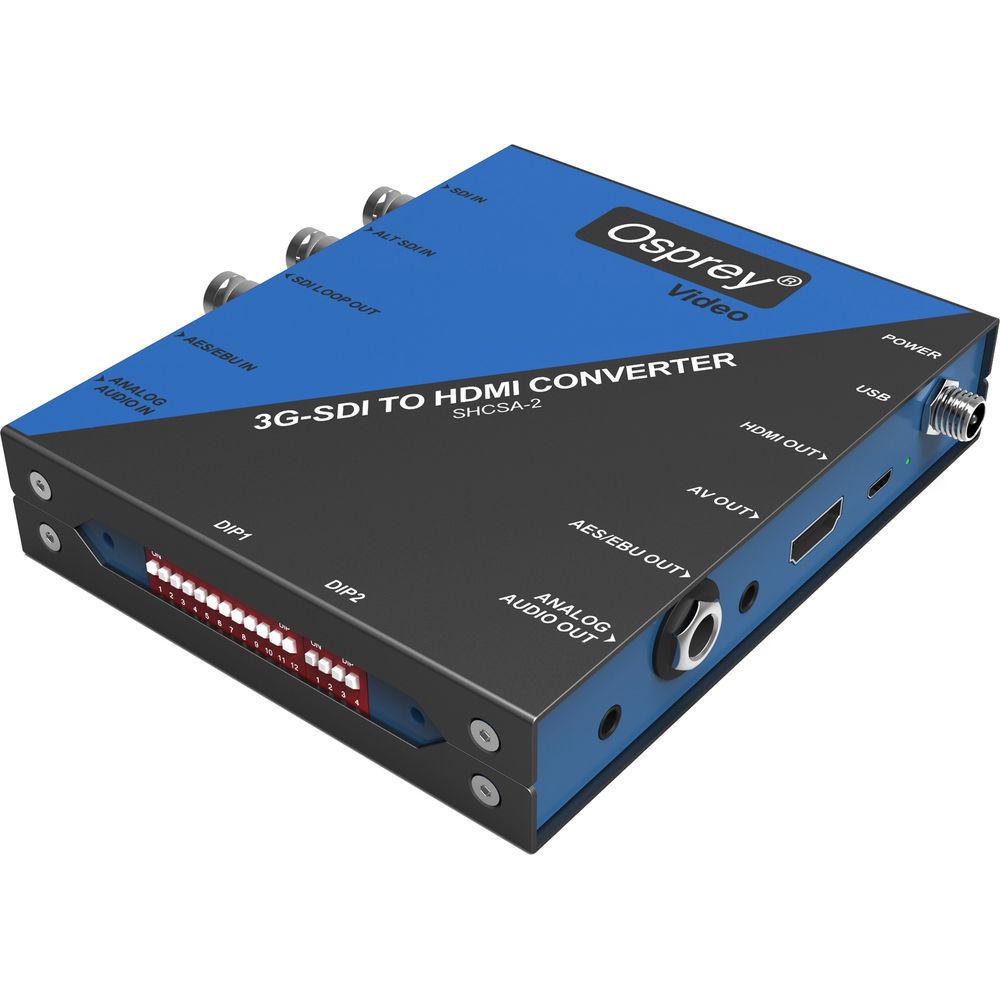

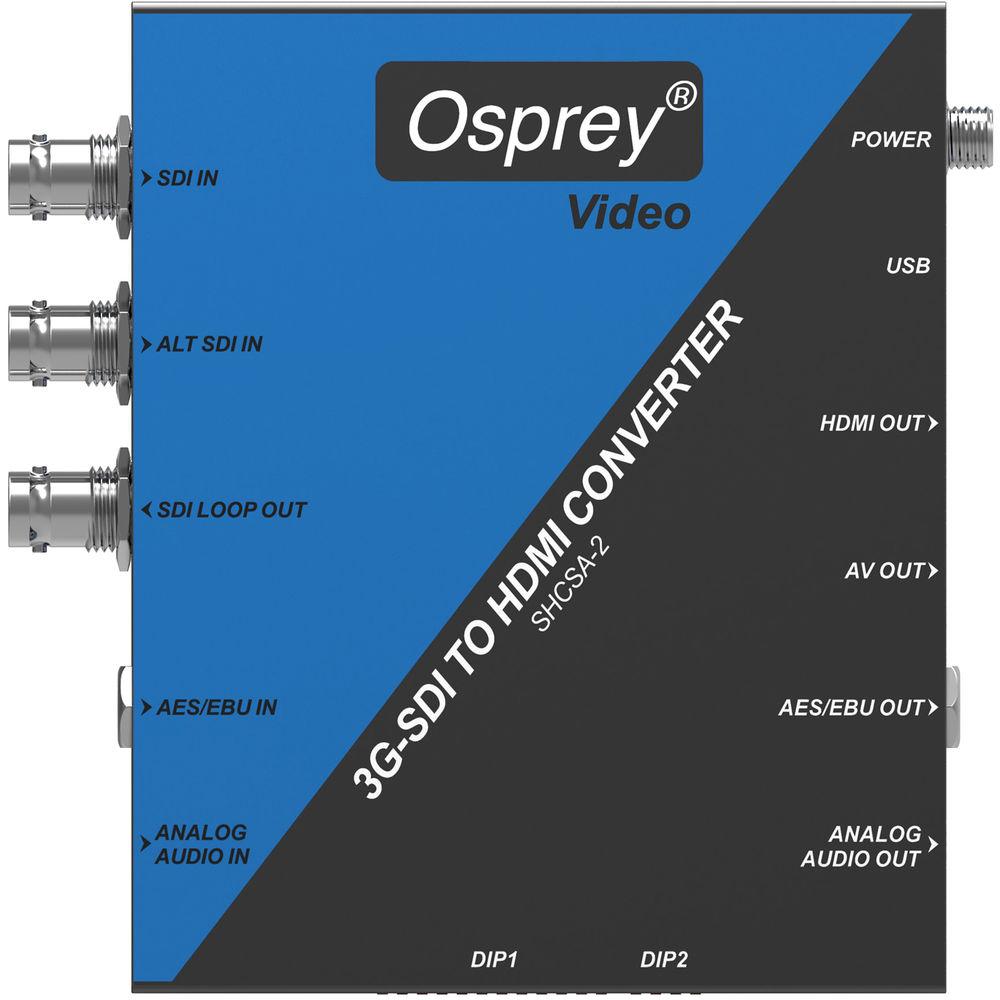

The SHCSA-2 Converter is designed with one 3G-SDI input, and one alternate (failover) 3G-SDI input. Output choices consist of one HDMI and one composite output, and one 3G-SDI loopout. Settings can be changed using the USB interface or the converter's DIP switches. Four custom settings are user-configurable via software, and diagnostic data can be enabled for video information monitoring. The SHCSA-2 Converter's diagnostic data overlay can be activated to monitor your video information. This compact unit comes with a power supply and mounting brackets. Features - SDI input is scaled and/or frame rate–converted to your required output standard
- 3G-SDI and alternate (failover) 3G-SDI video inputs; HDMI and composite outputs, and 3G-SDI loopout
- Audio embedding and de-embedding for AES/EBU and analog audio
- Four customizable settings can be selected via the SHCSA-2's USB interface or DIP switches
UPC: 850189006672 In the Box Osprey SHCSA-2 3G-SDI to HDMI Scaling Converter Universal Power Supply Mounting Brackets USB Cable AV Breakout Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey SHCSA-2 3G-SDI to HDMI Scaling Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey 97-41211 Specs | SDI Inputs | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i
480i | | Video Input | 3G-SDI, SMPTE 259/292/424, YCbCr 4:2:2
Alternate 3G-SDI (failover) | | HDMI Video Output | 1080p: 60/50/30/25/24
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 50
576i: 60 | | Video Output | HDMI 1.3a
CVBS (composite)
3G-SDI loopout (primary SDI input only) | | Output Video Formats SDI | NTSC, PAL | | Color Space | HDMI: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4
SDI: YUV 4:2:2 | | Audio Input | Embedded HDMI, analog stereo, AES/EBU | | Audio Output | Embedded HDMI, analog stereo, AES/EBU | | Power | Maximum: 12 VDC, 6 W | | Dimensions | 5 x 2.4 x 0.95" (127 x 61 x 24 mm) | | Weight | 0.7 lb (0.3 kg) | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 6.8 x 6.7 x 3.7" |
