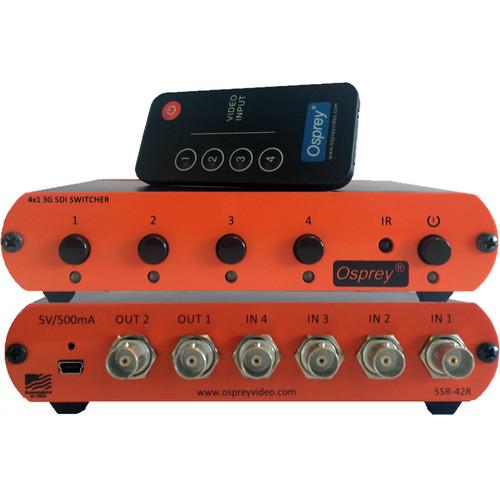

User Manual for Osprey SSR-42R 4:1 Reclocking Switcher for 3G HD SD-SDI and DVB-ASI Click to enlarge the picture
Contents of the user manual for the Osprey SSR-42R 4:1 Reclocking Switcher for
- Product category: Routers & Switchers Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Routers & Switchers
|
User manual for the Osprey SSR-42R 4:1 Reclocking Switcher for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|
Product description The SSR-42R 4:1 Reclocking Switcher for 3G/HD/SD-SDI and DVB-ASI from Osprey features automatic input detection and accepts up to four inputs. The selected channel is passed directly to two reclocked parallel outputs. The channel can be selected via pushbuttons on the unit or with the included remote control. UPC: 850189006474 In the Box Osprey SSR-42R 4:1 Reclocking Switcher for 3G/HD/SD-SDI and DVB-ASI Remote Control Locking USB Cable USB Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey SSR-42R 4:1 Reclocking Switcher for 3G HD SD-SDI and DVB-ASI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey 97-30001 Specs | Standards Compliance | SMPTE 259M, SMPTE 292, SMPTE 344M, SMPTE 424M, and DVB-ASI | | Video Inputs | 4 x 3G/HD/SD-SDI and DVB-ASI with embedded audio | | Video Outputs | 2 x Parallel 3G/HD/SD-SDI and DVB-ASI with embedded audio | | Video Connectors | 6 x BNC | | Cable Equalization | Belden 1694A:
492' (150 m) @ 3G
656' (200 m) @ HD
1312' (400 m) @ SD | | LED Indicators | Power, signal lock, and channel select | | Power | 5 VDC @ 2.5 W
May be powered by USB charger (included), PC, or portable battery pack (sold separately) | | Power Connector | Locking Mini USB type B | | Dimensions (LxWxH) | 4.0 x 6.3 x 1.2" (10 x 15 x 3 cm) | | Weight | 4 lb (1.8 kg) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 12.35 x 10.3 x 9.0" |
