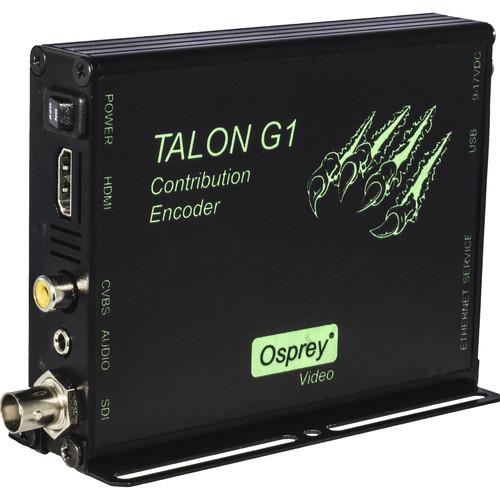

User Manual for Osprey Talon G1 Hardware Encoder Click to enlarge the picture
Contents of the user manual for the Osprey Talon G1 Hardware Encoder
- Product category: Streaming Media Solutions Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Streaming Media Solutions
|
User manual for the Osprey Talon G1 Hardware Encoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|
Product description With its flexible routing solutions and multiple streaming capabilities, the Osprey Talon G1 Hardware Encoder is a professional solution for streaming and archiving live video content. The G1 can accept video from SDI, HDMI, or composite video sources and compress the incoming stream into an H.264 file. H.264 compression gives the flexibility for video to be streamed over the web or easily archived without the storage impact of uncompressed video.
Since the encoding hardware is built into the G1, no extra processing power on the part of a computer is required. 2 simultaneous video signals can be streamed simultaneously to two different destinations, while a single video signal can be streamed to up to 3 discrete destinations, each with its own settings. For more information on the operating modes, see the features section below.
While the G1 chassis itself is devoid of controls, the IP GUI is comprehensive and simple to use. Simply connect the G1 to your network via the RJ-45 Ethernet connection. This design allows for placing the G1 out of sight or reach using the included mounting hardware. Features - Configurations Modes
- MBR Mode: This is the default mode. One video source can be streamed to up to 3 destinations using multiple resolution and bit-rate settings. For seamless RTMP and MBR streaming, frame alignment is supported. In this mode, RTMP, RTP, UDP, and .TS file streams support up to 1080p60 resolution.
LC Mode: Ideal for lectures, LC mode allows for the capture of 2 simultaneous video sources to be streamed to 2 destinations. The SDI input functions as the primary input in this mode, and HDMI or composite can be selected as the secondary input. In this mode, deinterlacing will be disabled, so progressive video sources (i.e. not interlaced) are preferred. - Closed-Caption Support
- Closed Captioning (EIA-608 & EIA-708) Type-1 ATSC Picture User Data is automatically embedded in the H.264 SEI per SCTE 128-1 standard (available in RTMP & UDP Streams).
- Audio-Input Options
- Embedded HDMI/SDI, additional unbalanced stereo audio input is available from front panel via a 3.5mm jack.
UPC: 850189006504 In the Box Osprey Talon G1 Hardware Encoder Power Supply Mounting Brackets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey Talon G1 Hardware Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey G1 Specs | I/O | Ethernet:
1x RJ-45 gigabit ethernet
Video:
1x Composite RCA input
1x SDI BNC input
1x HDMI type A
Audio:
1x 3.5mm unbalanced stereo input
USB:
1x USB 2.0 type A | | Resolution Support | 1080p23.98/24/15/29.97/30/50/59.94/60
1080i50/59.94/60
720p23.98/24/25/29.97/50/59.94/60
576p25/50
NTSC
PAL | | Encoding | Video: H.264 RTMP, RTP, MPEG-2 TS UDP, .TS File
Audio: AAC-LC & AAC-HE (32 to 320 kbps) | | Power Consumption | 6 W | | Dimensions | 3.7 x 4.7 x 1" / 93 x 120 x 25 | | Weight | 0.6 lb / 260 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 10.3 x 7.0 x 2.8" |
