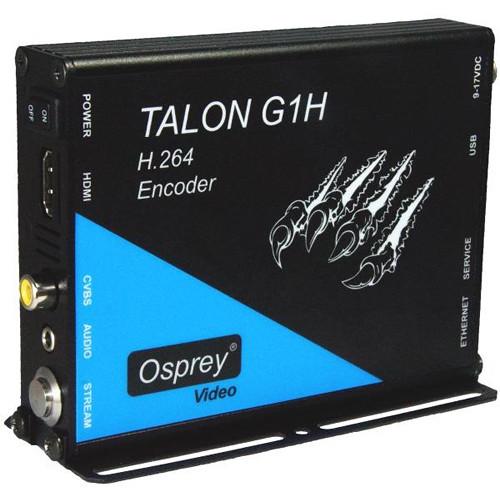

User Manual for Osprey Talon G1H Hardware Encoder Click to enlarge the picture
Contents of the user manual for the Osprey Talon G1H Hardware Encoder
- Product category: Streaming Media Solutions Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Streaming Media Solutions
|
User manual for the Osprey Talon G1H Hardware Encoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|
Product description The Osprey Talon G1H 2-Channel Hardware Based Encoder allows the user to select from two distinct configuration modes to suit a wide range of projects. It supports 1 x 3 MBR mode 1 and 1 x 1 3G mode. The 1 x 3 MBR Mode sources and streams up to three destinations in multiple resolutions and bitrates. It supports frame alignment for seamless RTMP MBR streaming. Output formats include RTMP, RTP, UDP, and lets the encoder saves file in .TS format for Full HD resolution. The 1 x 1 3G Mode captures from a 3G source and encodes a single 3G output stream in RTMP, RTP, UDP and saves the file in .TS format for Full HD resolution. - One touch encoding-Front panel control for easy start/stop
- Embedded one stereo pair per input for HDMI
- Additional unbalanced stereo pair available from front panel
- Simultaneous streaming and archiving
- HTTP-based configuration-also allows you to quickly modify resolutions, frame-rates, and destination settings
- Silent, fan-less operation
UPC: 850189006610 In the Box Osprey Talon G1H Hardware Encoder (HDMI and Composite) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey Talon G1H Hardware Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey G1H Specs | Software Control | HTTP-Based GUI | | Ethernet Connector | 1 x GigE | | Video Input | 1 x HDMI 1080p/60
1 x Composite (CVBS) | | Audio Input | 1 x Unbalanced stereo (3.5 mm) 1 x stereo pair (Embedded HDMI) | | USB Connector | USB Type A 2.0 | | Video Modes | 1080p 23.98, 24, 25, 29.97, 30, 50, 59.95, 60
1080i 50, 59.94, 60
720p 23.98, 24, 25, 29.97, 50, 59.94, 60
720 x 480 29.97, 30/i (NTSC)
720 x 576 25/i (PAL)
720 x 576 25, 50/p | | Hardware Control | Power switch
Stream start/stop button | | Encoding | Video Encoding: H.264 RTMP, RTP, MPEG-2 TS UDP, .TS File Audio Encoding: AAC-LC & AAC-HE (32 to 320 kb/s) | | Closed Caption | Closed Captioning (EIA-608) via CVBS input Type 1 ATSC Picture User Data is automatically embedded in the H.264 SEI per SCTE 128-1 standard
Note: Server and player must support closed caption data in order for the closed caption overlay to be available for display. | | LED Indicators | Power
Encoding
Signal Lock for HDMI, Composite | | Power Consumption | 6 W | | Compliance | CE, FCC, RoHS, WEEE | | Dimensions | 3.7 x 4.7 x 1" (93.1 x 120.2 x 24.8 mm) without mounting brackets or connectors | | Weight | 9.2 oz (260 g) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 10.3 x 7.1 x 2.8" |
