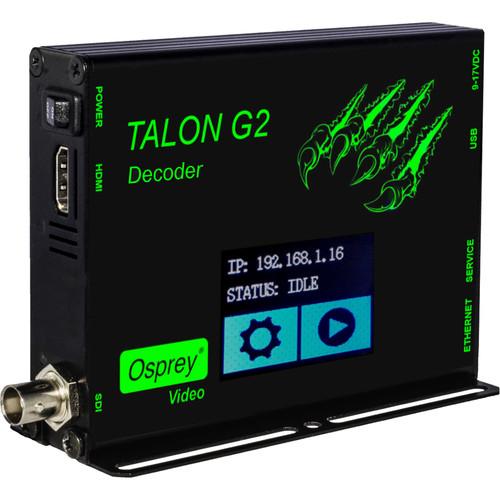

User Manual for Osprey Talon G2 H.264 Decoder Click to enlarge the picture
Contents of the user manual for the Osprey Talon G2 H.264 Decoder
- Product category: Signal Converters Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Signal Converters
|
User manual for the Osprey Talon G2 H.264 Decoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|
Product description The Talon G2 H.264 Decoder from Osprey Video is a compact H.264 video decoder designed for portable use. Input up to four RTP (unicast) or UDP (multicast) streams via the single GigE Ethernet input. The Talon G2 decodes the streams, and outputs them for display using its HDMI and SDI ports. This decoder handles resolutions up to 1080p60 and can also play .TS files from an external flash drive via its USB 2.0 port. Features include multiple PiP (picture-in-picture) options and a touch display/control panel. EIA-608 and EIA-708 CC (closed captioning) support is available on the SDI output. This hardware-based decoder has a fanless design and a low power consumption of less than 6W. The Talon G2's input voltage range of 9-17 VDC makes it suitable for battery-operated equipment and installations. Features - Video Input & Output
- Ethernet input, and HDMI and SDI output of up to four RTP or UDP streams (unicast/multicast)
Input and output resolutions up to 1080p/60
Multiple PiP options - USB 2.0 Port
- Plays .TS video files from an external flash drive
- Closed Caption
- SDI output supports EIA-608 and EIA-708 closed captioning
- Touch Display
- Indicates IP address, status (decoding/idle), and start/stop
Enables changing of output resolution and output configuration - LED Indicators
- Power, unit ready, unit decoding
UPC: 850189006634 In the Box Osprey Talon G2 H.264 Decoder (SDI, HDMI) Universal Power Supply Mounting Brackets Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey Talon G2 H.264 Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey Talon G2 Specs | Video Input | H.264 RTP/UDP multicast and unicast stream
H.264 .TS file | | Maximum Video Input Capacity | 1 x 1080p/60*
2 x 1080p/30
2 x 720p/60
3 or 4 x 720p/30
*100% capacity is based upon pixels per second rather than bitrate
1080p/60 requires 124MP (million pixels) per second. Any combined encoding load that equals less than 124MP per second is acceptable. | | Video Output Modes (Parallel) | HDMI and SDI:
720p: 50/60
1080p: 25/30/50/60 | | USB Connectors | USB 2.0 Type-A | | Ethernet Connector | 1 x 1 GbE | | Power Consumption | 6 W | | Dimensions (WxHxD) | Not Including Brackets or Connectors:
3.7 x 4.7 x 1" (93 x 120 x 25 mm) | | Weight | 9.2 oz (260 g) | | | | Package Weight | 1.63 lb | | Box Dimensions (LxWxH) | 10.4 x 7.15 x 2.8" |
