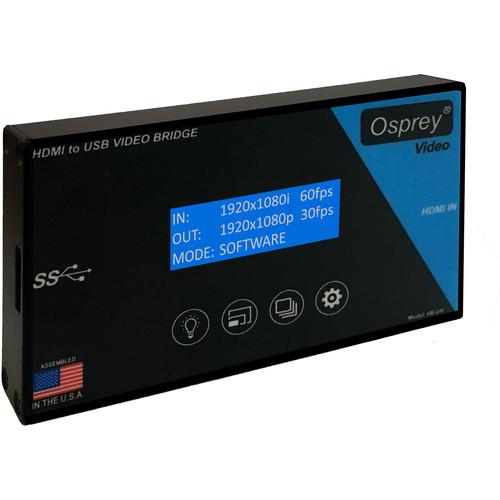

User Manual for Osprey VB-UH USB Video Bridge Capture Device Click to enlarge the picture
Contents of the user manual for the Osprey VB-UH USB Video Bridge Capture
- Product category: Computer Hardware Osprey
- Brand: Osprey
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Osprey Computer Hardware
|
User manual for the Osprey VB-UH USB Video Bridge Capture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Osprey product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Osprey user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Osprey product will considerably shorten its lifespan!
|
Product description The Osprey VB-UH USB Video Bridge connects directly to your computer's USB 3.0 port, enabling you to capture uncompressed video and embedded audio from an HDMI source. This capture device is plug-and-play, with no driver installation required. It features a full-size HDMI input and a Micro-B USB 3.0 output. The VB-UH USB Video Bridge supports video resolutions up to 1080p60 and has two control modes. In Software mode, all available frame rates and resolutions are passed to the capture software. For greater user control, the frame rate and resolution can be pre-selected in Manual mode. Compact in size and powered directly via USB, the VB-UH USB Video Bridge is compatible with Windows, Mac OSX, and Linux operating systems, and is UVC-compliant. Features - Capture HDMI video directly to your computer's Micro-B USB 3.0 port
- Supports up to 1080p/60 video with 2-channel embedded audio
- Plug-and-play installation without a driver requirement; Window, Linux and macOS compatible
- Software and Manual control modes offer varying degrees of user control
- LCD screen displays frame rates, input and output resolutions, and mode selection
UPC: 850189006665 In the Box Osprey VB-UH USB Video Bridge Capture Device USB Cable (3') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Osprey VB-UH USB Video Bridge Capture Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOsprey VB-UH Specs | Video Formats | HDMI:
1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60
1920 x 1080i: 50/59.94/60
1280 x 720p: 25/30/50/59.94/60
720 x 480p: 60
720 x 576p: 50
576i: 50 PAL
480i: 60 NTSC | | Video Formats Out (YUV 422): | Frame Rates: 24/25/30/50/60
1920 x 1080
1680 x 1050
1440 x 900
1360 x 768
1280 x 1024
1280 x 800
1280 x 768
1280 x 720
1024 x 768
1024 x 576
960 x 540
856 x 480
800 x 600
768 x 576
720 x 576
720 x 480
640 x 480
640 x 360 | | Video Input | HDMI 1.3a RGB 4:4:4 | | Audio Input | Embedded Audio: 2-channel HDMI
Sample Rate: 48 kHz | | Interfaces | 1 x full-size HDMI
1 x Micro-B USB 3.0, UVC/UAC-compliant | | Power | 5 V USB-powered, 4.5 W maximum | | Dimensions | 4 x 2.4 x 0.67" (103 x 61 x 17 mm) | | Weight | 0.25 lb (0.11 kg) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 7.0 x 4.8 x 1.3" |
