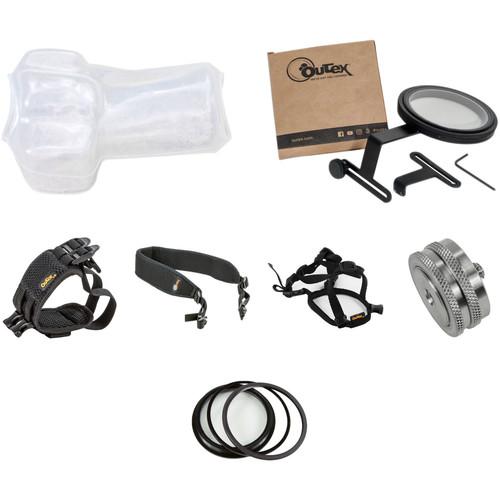

User Manual for Outex Underwater Camera Cover Kit Click to enlarge the picture
Contents of the user manual for the Outex Underwater Camera Cover Kit
- Product category: Still Cameras & Housings Outex
- Brand: Outex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Outex Still Cameras & Housings
|
User manual for the Outex Underwater Camera Cover Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Outex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Outex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Outex product will considerably shorten its lifespan!
|
Product description This Underwater Camera Cover Kit from Outex comes with everything you need to use most full-body or battery-grip cameras underwater or in challenging conditions like driving rain or blowing sand. It has a large-sized, tripod-compatible silicone cover that measures 6.3" wide, 6.7" high, and 12.2" from the back of the camera to the front of the lens. It also has a tripod adapter, a front glass port for a 58mm lens, a rear glass port for the viewfinder and LCD screen, wrist and neck straps, and the harness to which the straps attach. - Outex 130T Underwater Camera Cover (Large, Tripod Compatible) The Outex 130T Large Tripod-Compatible Underwater Camera Cover is designed for use with most large-body and battery grip cameras. Measuring 6.3 x 6.7" with a maximum body-plus-lens length of 12.2", the stretchy, silicone-based cover allows for mounting the camera on a tripod with the separately sold adapter. It has openings for an Outex Front Glass which is attached to the lens, and a Rear Glass which is attached to the tripod mount. The camera controls can be operated through the cover.
-
- Fits most large-body and battery grip cameras
- Accommodates tripod with separately sold adapter
- Measures 6.3 x 6.7" (camera body width x height), 12.2" (body plus lens)
- Malleable silicone-based proprietary material
- Camera controls can be seen and operated
- Has openings for an Outex Front Glass which attaches to the lens, and Rear Glass which attaches to the tripod mount
- Outex Wrist Strap for Strap Holder LCD The Outex Wrist Strap provides an alternative to a neck strap that still keeps your camera securely attached. The strap snaps onto the Outex Strap Holder LCD, the harness that fits on a camera inside an Outex underwater camera cover. UPC: 095225635687
- Outex Neck Strap for Strap Holder LCD This Neck Strap attaches to the Strap Holder LCD on an Outex underwater camera cover system. The padded strap has an adjustable length, and snaps easily on and off with side-release buckles. UPC: 095225635670
- Outex Strap Holder This Strap Holder is part of an Outex underwater camera cover system, and provides connection points for the Outex Neck Strap. The adjustable harness is equipped with side-release buckles for quick and easy attaching and detaching of the strap. UPC: 095225635663
- Outex Rear Glass for Underwater Camera Cover (86mm) This Rear Glass is compatible with any medium or large Outex silicone underwater camera cover. It attaches to the tripod mount on the underside of the camera, and its adjustable bracket allows you to place the 86mm lens where you can best see your LCD and/or viewfinder to operate your camera's controls. Simply pull the rear opening of the camera cover over the lip of the rear glass, slip on the O-ring, and thread on the outer ring to form the seal. These rings are made from anodized aluminum for durability and corrosion resistance. The assembly is depth-rated to 33'. UPC: 095225636592
- Outex Tripod Adaptor This Tripod Adapter enables the use of an Outex underwater camera cover with a tripod. Using the 130T camera cover, attach the adapter to the camera, put the edge of the opening over the lip of the adapter, slip on the metal O-ring, and tighten the metal outer ring to create the seal.
- Outex Front Glass for Underwater Camera Cover (58mm Filter Thread) This Front Glass is compatible with any Outex silicone underwater camera cover. It screws onto any 58mm filter thread like a filter. Simply pull the front opening of the camera cover over the lip of the front glass, slip on the O-ring, and thread on the outer ring to form the seal. These rings are made from anodized aluminum for durability and corrosion resistance. The assembly is depth-rated to 33'. UPC: 095225635410
In the Box - 130T Underwater Camera Cover (Large, Tripod Compatible) xsycxvccwaxzbycwsvufcbazvfwfu
- Limited 60-Day Warranty
- Wrist Strap for Strap Holder LCD
- Neck Strap for Strap Holder LCD
- Strap Holder xsycxvccwaxzbycwsvufcbazvfwfu
- Rear Glass for Underwater Camera Cover (86mm)
- Front Glass for Underwater Camera Cover (58mm Filter Thread) xsycxvccwaxzbycwsvufcbazvfwfu
Table of Contents
|
Upload User Manual
Have you got an user manual for the Outex Underwater Camera Cover Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Outex 130T Underwater Camera Cover (Large, Tripod Compatible)
| Dimensions | Width: 6.3" / 160 mm
Height: 6.7" / 170 mm
Length (camera body plus lens): 12.2: / 310 mm | - Outex Wrist Strap for Strap Holder LCD
| | | Box Dimensions (LxWxH) | 8.3 x 2.9 x 1.15" | - Outex Neck Strap for Strap Holder LCD
| | | Box Dimensions (LxWxH) | 12.1 x 3.85 x 1.4" | - Outex Strap Holder
| | | Box Dimensions (LxWxH) | 4.45 x 3.3 x 1.35" | - Outex Rear Glass for Underwater Camera Cover (86mm)
| Diameter | 86 mm | | Material of Construction | Lens: Glass
Rings: Anodized Aluminum | | Depth Rating | 33' / 10 m | | | | Box Dimensions (LxWxH) | 7.1 x 6.4 x 3.0" | - Outex Front Glass for Underwater Camera Cover (58mm Filter Thread)
| Thread Diameter | 58mm | | Depth Rating | 33' / 10 m | | | | Box Dimensions (LxWxH) | 4.4 x 4.4 x 0.9" |
